SmallHD

Ultra 10

Ultra 10 hits the sweet spot in power, performance and size between production monitors and our Ultra Bright Series with the largest touchscreen monitor we’ve ever made.

4.478,93€ (ex. VAT)

SKU: 16-1001 Categories: , , Brand:

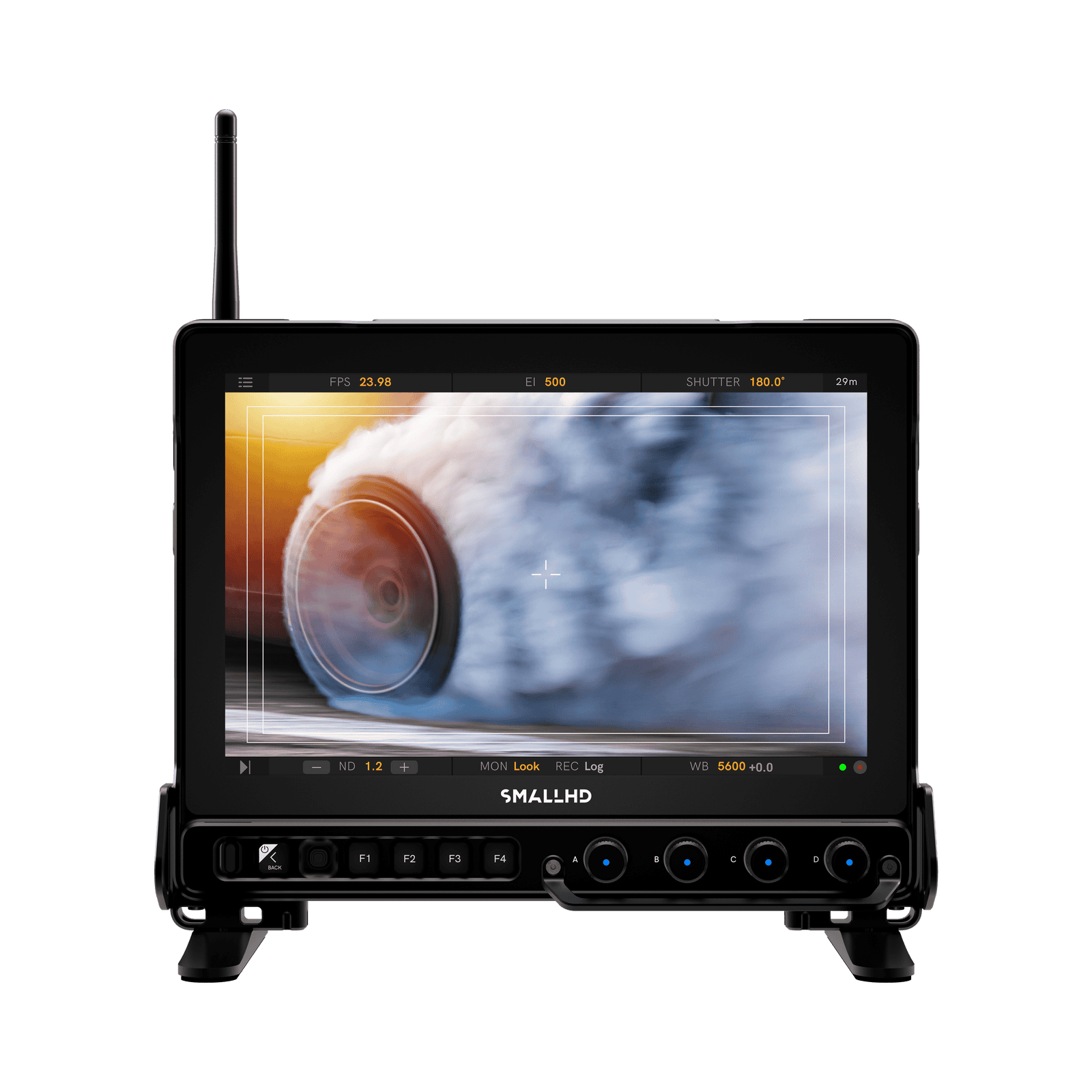

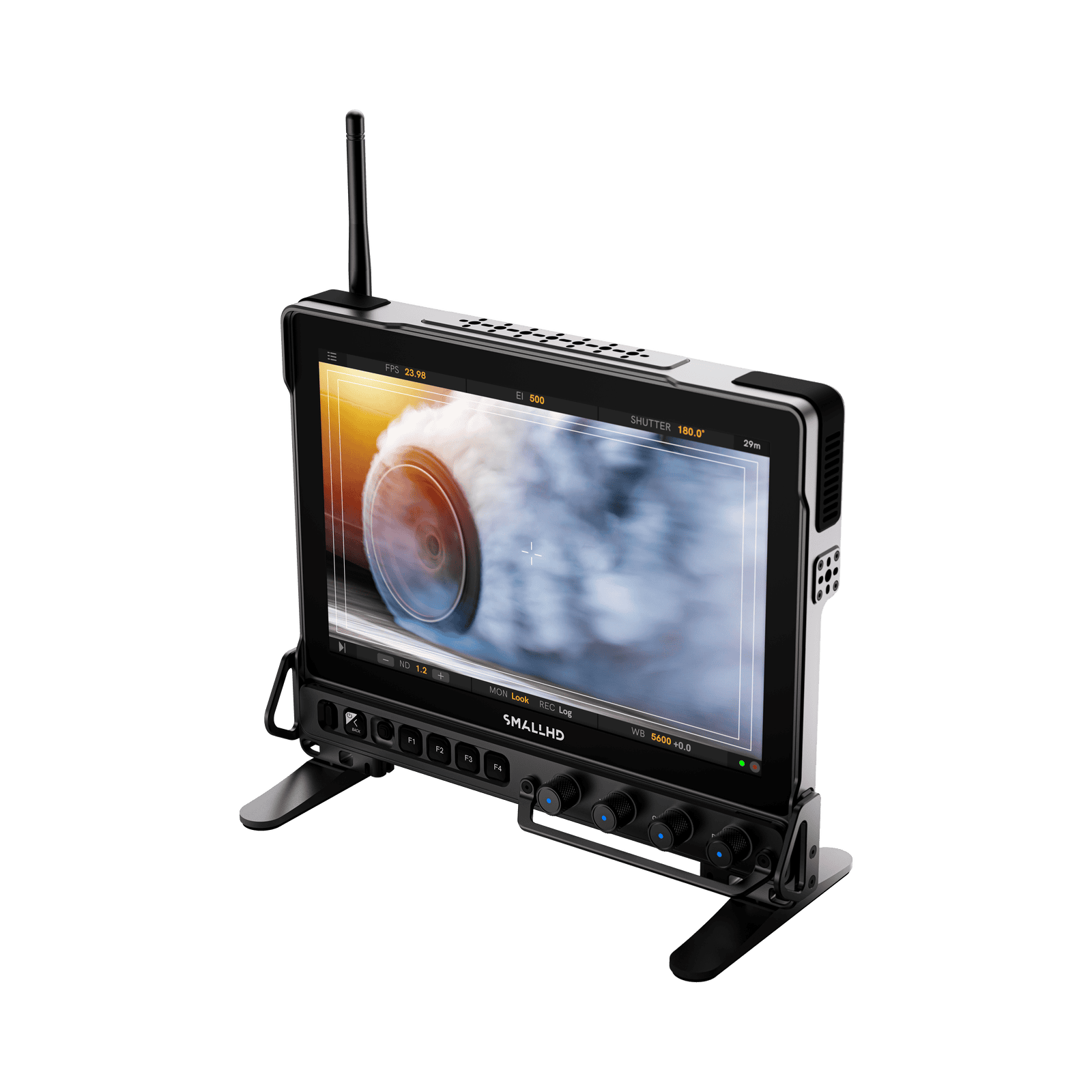

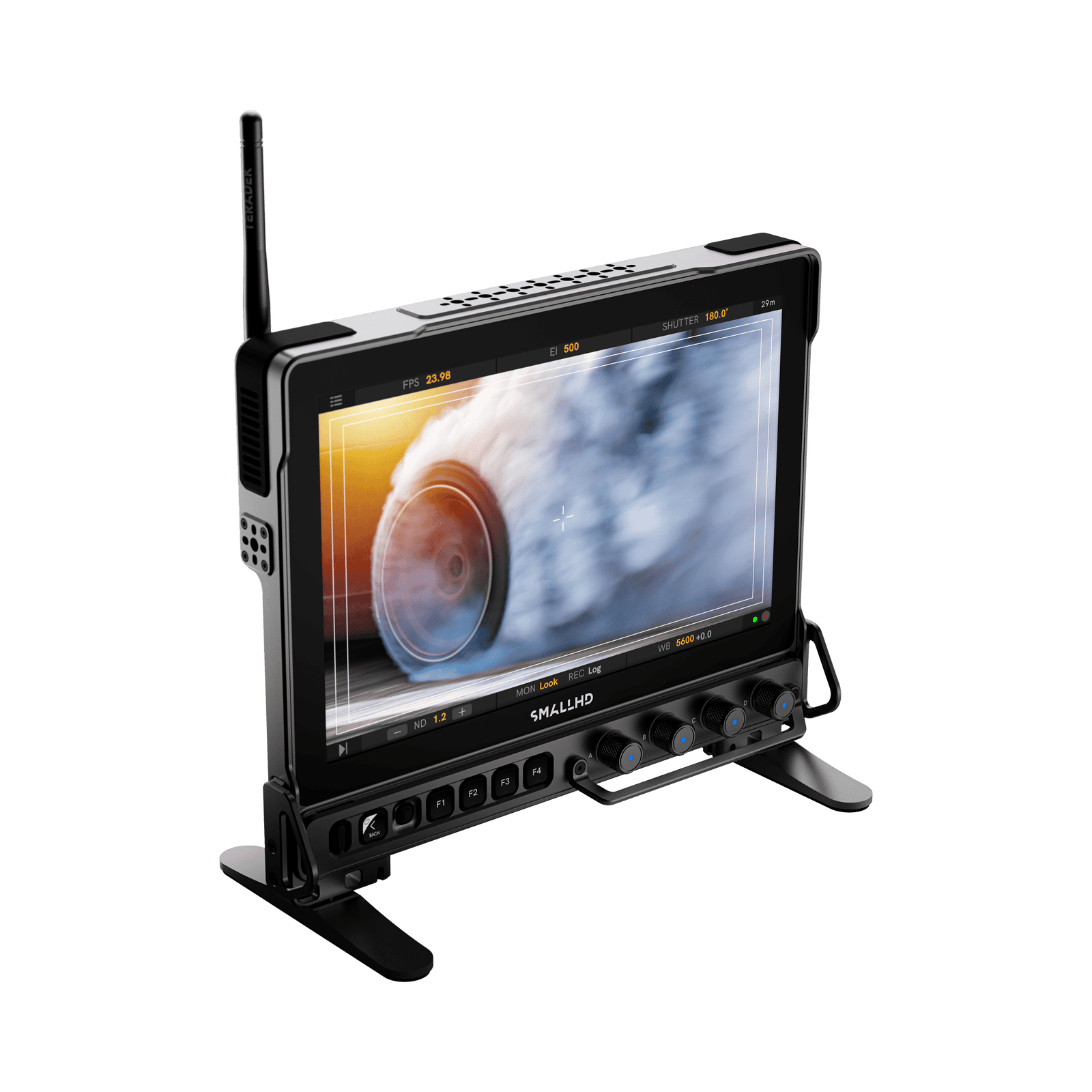

Ultra 10 hits the sweet spot in power, performance and size between production monitors and our Ultra Bright Series with the largest touchscreen monitor we’ve ever made. Portable, powerful, and rugged, Ultra 10 packs 2000nits of brightness, 6G-SDI architecture, intuitive multi-function rotary encoder knobs, and the full power of PageOS into a 10-inch display. Perfect for focus pullers, pursuit vehicles, Directors, DITs, multi-camera studios, and anyone who desires maximum flexibility from their monitor.

With a rating of IP54, the Ultra 10 is protected from dust and water spray from any direction. This monitor includes raised edges around the display glass and shock-absorbing, user-replaceable silicone bumpers.

Four customizable encoder knobs let you change PageOS tools and settings on the fly with capacitive-touch, long-push, short-push, and rotary functionality.

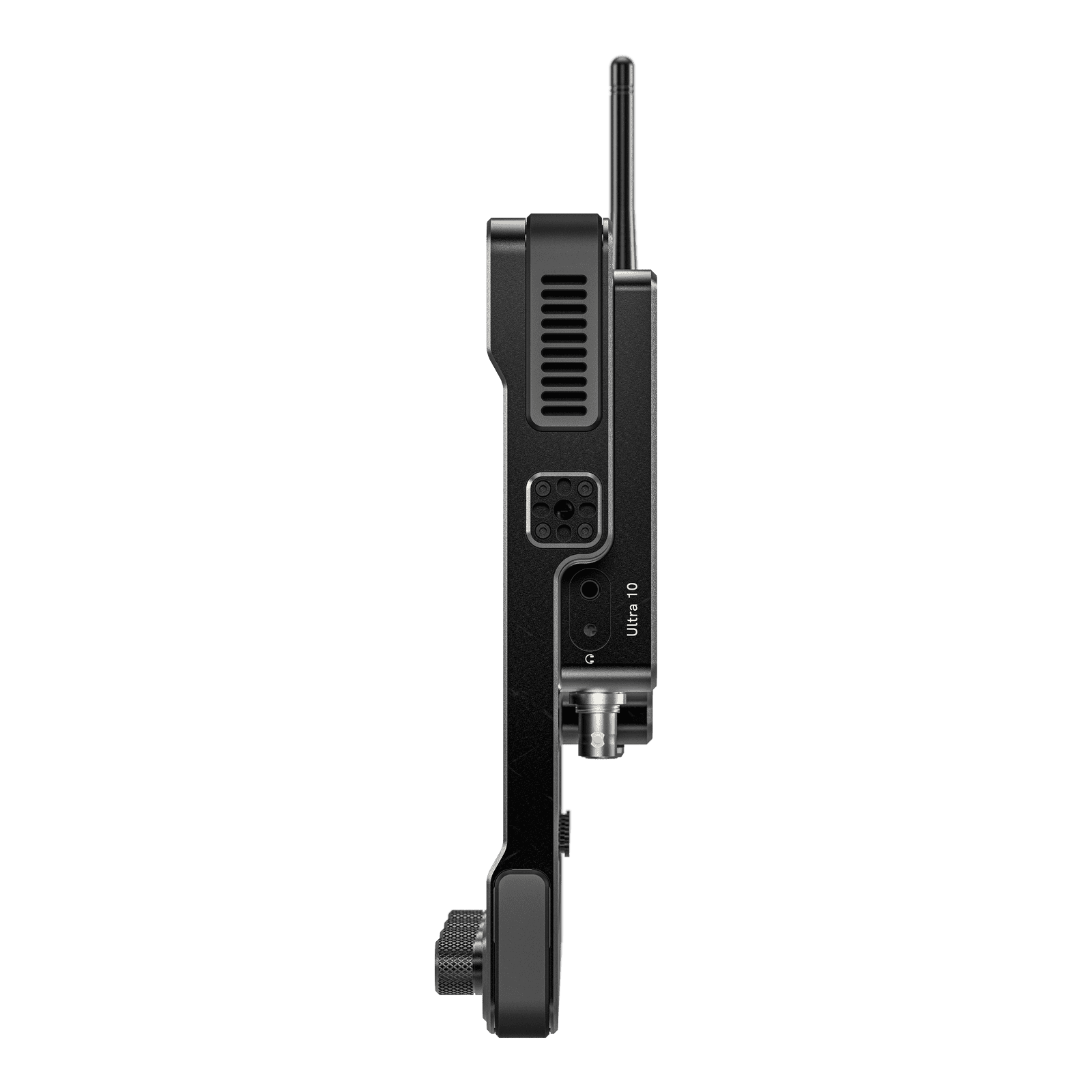

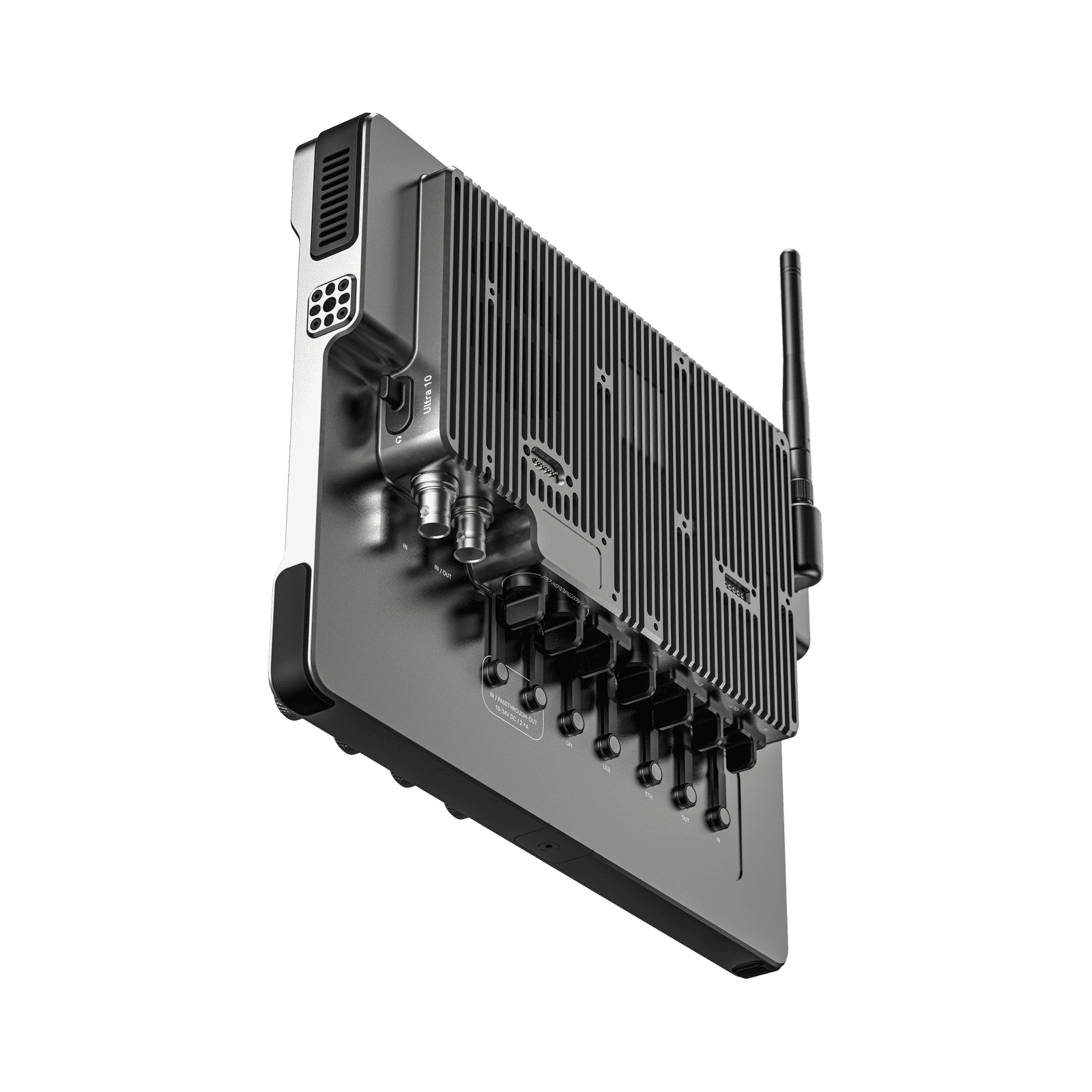

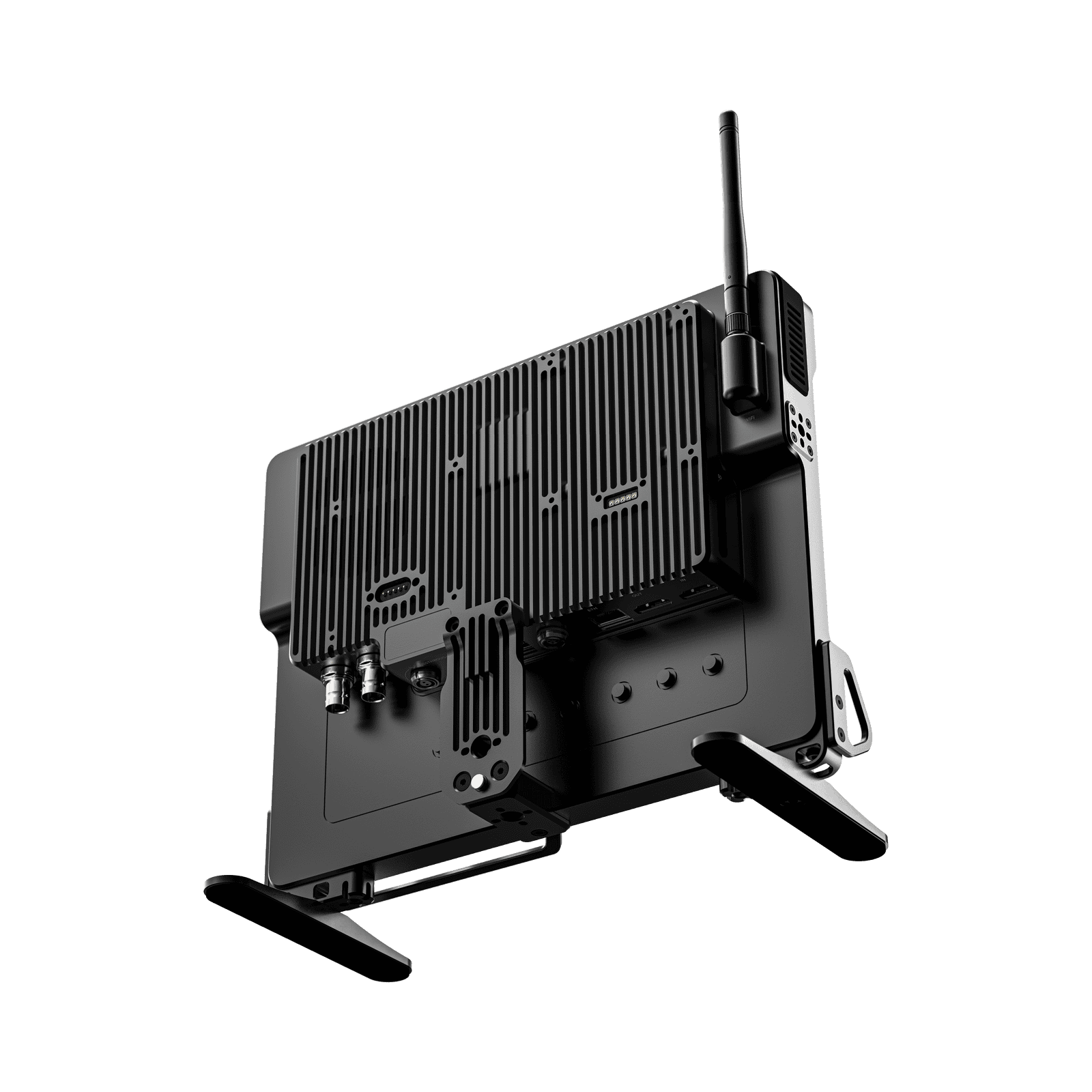

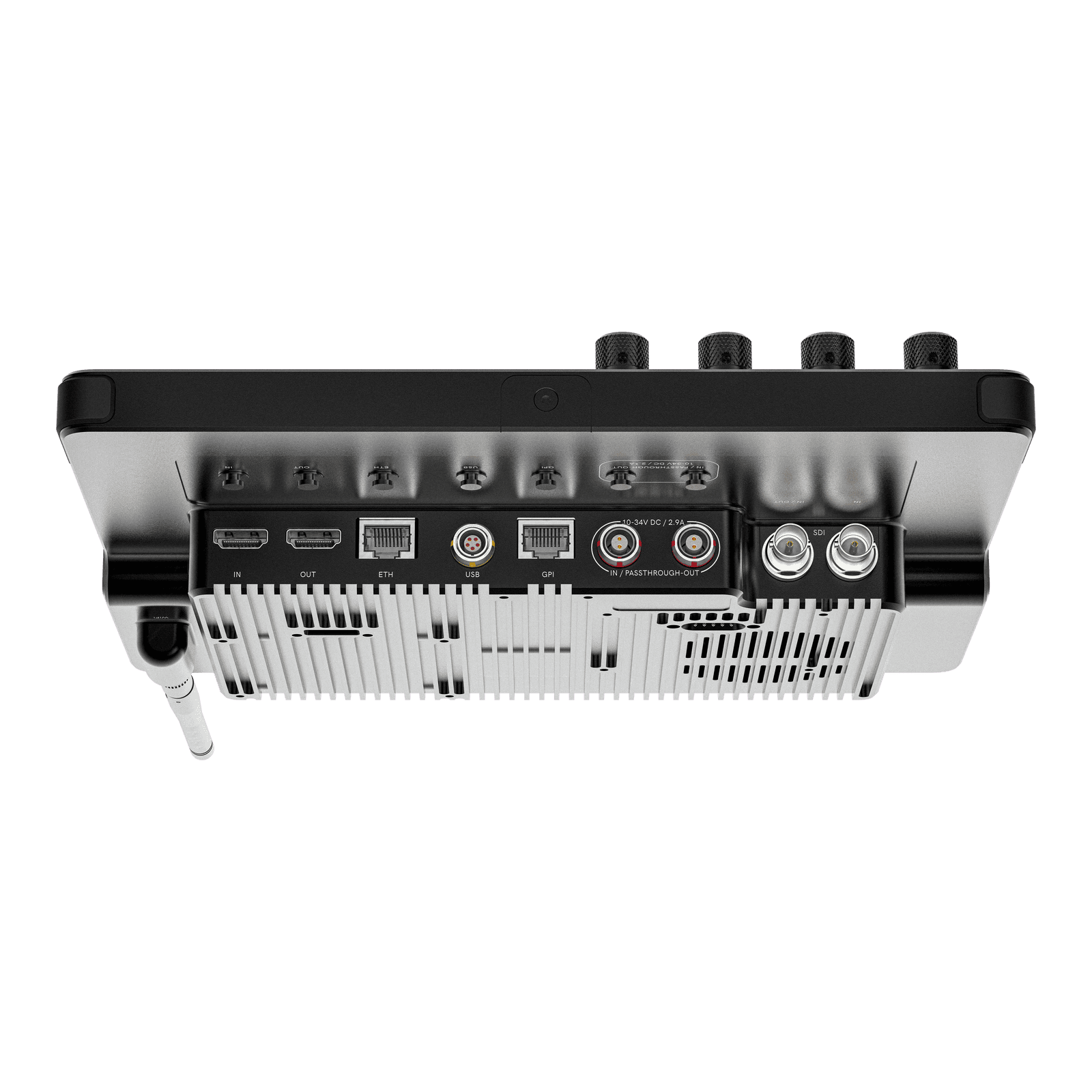

Ultra 10 includes ports for Ethernet, GPI, 2-pin power input and 5-pin USB port as well as ¼”-20 mounting points along the top and sides of the monitor for mounting accessories.

Model Ultra 10
Environmental
IP Rating IP54
Item Weight (oz) 52.8
Package Weight (oz) 8lbs
Height (in) 7.87
Width (in) 10
Length/Depth (in) 2.21
Compliance FCC, IC, CE, UKCA, MIC, RCM, BIS, ROHS
Operating Temperature 32 F – 105 F
Storage Temperature 0F to 120F
Screen Protection Clear or Matte
Mount Points 11x 1/4-20 Mounting Points (9 Top, Left, Right), 1x 3/8, 1 Arca Rail
Construction Anodized Aluminum unibody with plastic accents
Display
Panel Type IPS LCD with touch
Diagonal Size 10.1″
Resolution 1920×1200
Pixel Density 224 PPI
Aspect Ratio 16:10
Active Area 135.36(H) x 216.58(V) mm
Contrast 1000:1
Gamut 99.8% Rec709
Color Depth 10-bit Processing (8-bit panel)
Backlight Type LED Edgelit
Refresh Rate Synchronizes with input from 48Hz to 60Hz
Input Signal
3G-SDI Input Types YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i102
6G-SDI Input Types YCC 4:2:2 @ 10 bits: DCI-4Kp30, DCI-4Kp29.97, DCI-4Kp25, DCI-4Kp24, DCI-4Kp23.98, 2160p30, 2160p29.97, 2160p24, 2160p23.98 YCC 4:4:4, YCC+A 4:4:4:4, RGB, RGB+A @ 10 bits: DCI-2Kp60, DCI-2Kp59.94, DCI-2Kp50, DCI-2Kp48, DCI-2Kp47.95, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.95 YCC 4:4:4, YCC+A 4:2:2:4, RGB @ 12 bits: DCI-2Kp60, DCI-2Kp59.94, DCI-2Kp50, DCI-2Kp48, DCI-2Kp47.95, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.95
HD-SDI Input Types YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.100
SD-SDI Input Types YCC 4:2:2 @ 10-bits: 480i59.94, 576i52
HDMI Input Types YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4: 3840×2160 30p, 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i52
Audio Input Types HDMI & SDI – Monitor through Speakers in Front Bezel or Through Headphone Jack – Metering up to 8 channels
Output Signal
3G-SDI Output Types YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i102
HD-SDI Output Types YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.100
SD-SDI Output Types YCC 4:2:2 @ 10-bits: 480i59.94, 576i52
HDMI Output Types YCC 4:2:2 @ 12 bits, 8 bit color in RGB & YCC 4:4:4: 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, 1080p120, 1080p119.88, 1080p100, 1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p240, 720p239.76, 720p200 YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i51
Audio Output Types HDMI & SDI – Incoming Audio Stream is sent downstream via HDMI or SDI connection and 1x 3.5mm 3-pin Stereo Headphone
Connector Type
SDI 1x BNC 6G input and 1x BNC 6G selectable input/output
HDMI 1 input and 1 output: HDMI Type-A Receptacles (full size)
Audio HDMI & SDI – Monitor through Headphone Jack – Metering up to 8 channels
Power In Rear Battery Plate Interface
Optional V-Mount, Gold-Mount, or B-Mount Wooden Camera Mico Battery Plate (10V – 34V)

2-Pin Locking (10V – 34V)
Power Out 2-Pin Locking Power Passthrough Output
USB 5-pin locking USB 2.0
Controls
Primary RJ45 for GPI
Record Capture Image Capture Tool
Wireless 2.4GHz WLAN
USB 5-pin locking USB 2.0
Data I/O
SDI 1x BNC 6G input and 1x BNC 6G selectable input/output
HDMI 1 input and 1 output: HDMI Type-A Receptacles (full size)
Audio 1x 3.5mm 3-pin Stereo Headphone Jack
Ethernet RJ45
Storage Media 1x SD Card Slot
USB 5-pin locking USB 2.0
Wireless 2.4GHz WLAN
Wi Fi 2.4GHz WLAN
Monitoring I/O SDI: 1x BNC 12G input and 1x BNC 12G selectable input/output
HDMI: 1 input and 1 output: HDMI Type-A Receptacles (full size)
Audio: 1x 3.5mm 3-pin Stereo Headphone Jack
Ethernet: RJ45 and GPI
Power
Input 10V-34VDC IN (2.9A Max)
Connector 2-Pin Locking Connector
Voltage DC in – 10V minimum to 34V maximum, Battery terminals – 6.0V minimum to 16.8V max
Power Supply Recommend DC 12~15V at ~2.5 amp or greater
Battery Types V Mount, Gold Mount Micro Battery Plates
Overload Protection DC input: Reverse polarity
Battery Chemistry Li-ion
Software
Pixel Zoom 1.1-2.0x & 2.0-8.0x via swipe up/down. Infinitely adjustable via pinch & zoom
Frame Guides Preset Aspect Ratios & Customizable
DSLR Scale Canon 5DMkii & Canon 7D
Custom Scale Yes (Underscan Only)
Anamorphic De-Squeeze 0.75x, 1.33x, 1.5x, 1.66x, 2.0x, 2.5x
Image Rotate Automatic or Manual Control
Image Flip Automatic or Manual Control
Cross Conversion Yes: HDMI → SDI & SDI → HDMI
Focus Assist User Adjustable Color Style and Intensity
Peaking User Adjustable Intensity
False Color Rainbow, Arri Style, Custom with up to 10 nodes
Zebra Dual – User Configurable
Waveform Luma & RGB Style, Fully User Customizable w/ Region of Interest Highlighting
Vectorscope Yes
RGB Parade Fully User Customizable
Histogram Luma & RGB Style
Image Capture Yes
LUTS – 33pt User LUT instead of 17pt
– 33pt Cal LUT instead of 17pt
– LUT tool continues to work after removable media containing the LUT has been removed
Custom LUTS – Loadable as Looks on Pages or as Systemwide Color Calibration via the settings menu
– LUT Downstream: Available on SDI or HDMI Out. Applied on Output Preview Page.
– LUT Import: via SD Card or USB Storage Device
Color Pipe – Unique Calibrations may be saved to each Color Pipe
– Accurate color processing
Overlay With Opacity Slider and Blink Setting
Audio Meters HDMI & SDI up to 8 channel
Multi-View 2 camera feeds simultaneously

Additional information

Brand

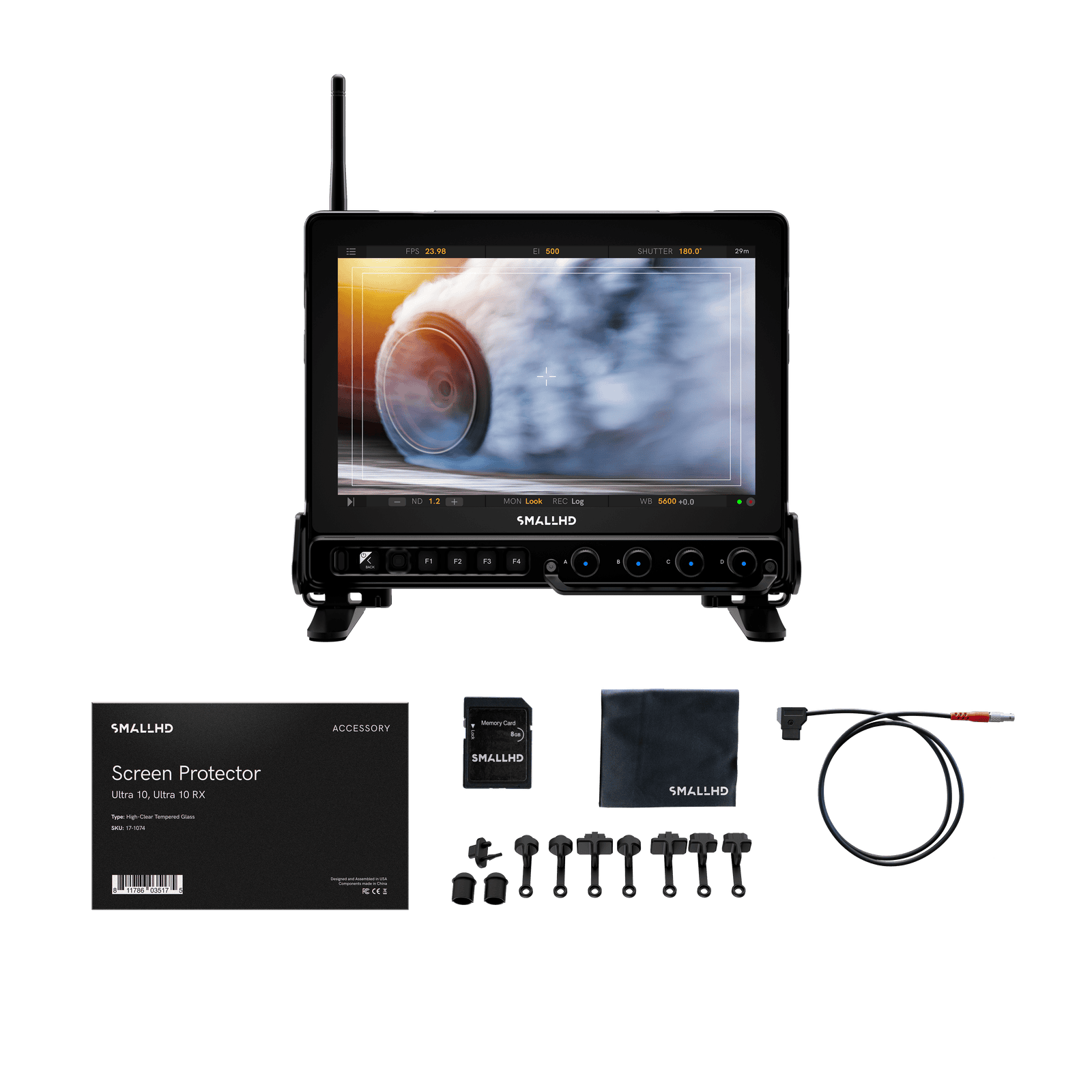

  • 1 × Ultra 10
  • 1 × Ultra Screen Protector for Ultra 10
  • 1 × Ultra 10 Dial Guard
  • 1 × Ultra 10 Dial Protector D-Ring (Set)
  • 1 × Ultra 10 Dust Covers (Spare set)
  • 1 × D-Tap to 2-Pin Power Cable – 36 in
  • 1 × SmallHD 4K Monitor Feet (Set)
  • 1 × SmallHD Cleaning Cloth
  • 1 x Screen Protector Applicator
  • 1 × 8 GB SD Card
