290Wh Multi-sockets Digital Battery Pack

Square shape design for Cine-cameras

PB-S series camera batteries are compact designed, shorter than normal V/Gold mount batteries, and match perfectly with most of the Cine-cameras.

290Wh / 20.1Ah Capacity

Consists of 24pcs of high class 18650 battery cells, nominal voltage is 14.4V and reaches 290Wh / 20.1Ah high capacity. Can run approx 10 hours for normal ENG cameras and approx 3.5 hours for ARRI ALEXA.

High Load for Cine Cameras

At least 200W / 16A load

PB-S290S provides at least 200W/16A high load even at 1% power, to drive high power Cine cameras and on-camera devices together. The high load cells will also ensure battery life comparing to normal load batteries if long time full load output.

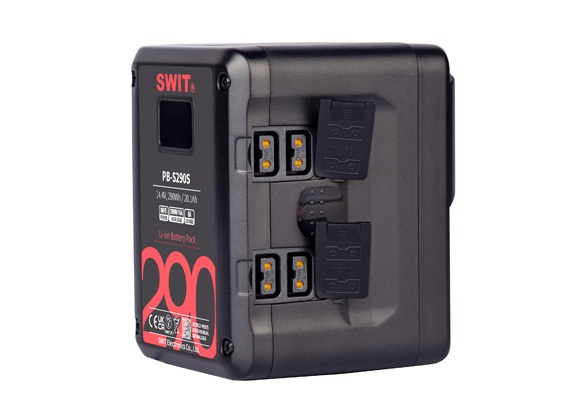

4× D-tap, 1× USB

PB-S290S provides 4x D-tap output sockets with 10A/120W load, and 1x USB 5V/2A socket, to power other on-camera devices together.

100W 6A Fast Charging

Using SWIT 6A fast charger

PB-S290S supports 6A fast charging by SWIT PC-P461S or S-3812S fast charger, to save more than 50% charging time. The 290Wh PB-S290S battery can be charged from 0 to 80% after 2.5 hours, and fully charged within 3.8 hours.

Digital Power Info

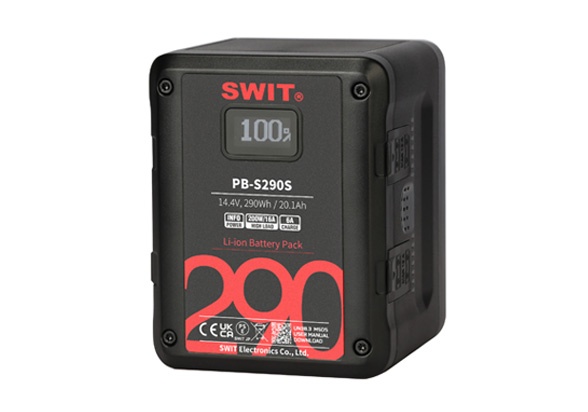

OLED display accurate remaining run time

The build-in OLED can displays remaining power percentage, remaining working time, and battery cycle times, and support viewfinder info display on both SONY and RED cameras.

Battery Protection Display

When any over load, over charging, short circuit, high/low temperature detected, the battery will protect itself and display protection information. You can take steps to re-active battery, to ensure the best battery condition and prolong battery life.
