0.7-inch 1920 x 1080 full HD Organic Light Emitting Diode (OLED) panel
As the viewfinder adopts advanced organic light emitting diode panel technology, quick pixel response for tracking and focusing on moving objects is possible.
High contrast ratio
Thanks to the OLED panel, characteristics such as deep black colour reproduction and high-peak brightness, higher contrast and wider dynamic range are achieved.
Compatible with F65 digital motion picture cameras, 4K/HD system cameras and shoulder-type HD camcorders
The viewfinder can connect with a wide variety of cameras equipped with 20-pin HDVF interfaces (such as the top-end F65 CineAlta premium 4K camera), 4K/HD system cameras (such as the HDC-4300 three 2/3-inch 4K/HD system camera), HD system cameras (such as the HDC-2500 multi-format system camera), and shoulder-type of HD camcorders (such as the PXW-X500 and PDW-850 camcorders).
Specially developed optical loupe
Thanks to a specially developed optical loupe, the eye-point becomes longer than the existing portable OLED viewfinder with lower picture distortion.
Effective assignable buttons
The viewfinder allows you to assign useful functions to the buttons, such as switching colour mode to black/white, focus magnification. In addition “HIEYE” function reduces/downscales the image size to allow longer distance viewing.
3.5-inch, quarter HD (960 x 540) sub-LCD panel
The HDVF-EL30 is equipped with an additional 3.5-inch, quarter HD (960 x 540) sub-LCD display for direct monitoring over a longer distance. Using both sub-LCD panel and OLED displays offers full operational flexibility enabling a camera assistant to monitor the sub-LCD display while the camera operator uses the OLED one.
Display tally and camera number on sub-LCD
The HDVF-EL30 can display a tally and camera number on the sub-LCD panel, which can be set by menu when the sub-LCD flips to the lens side.

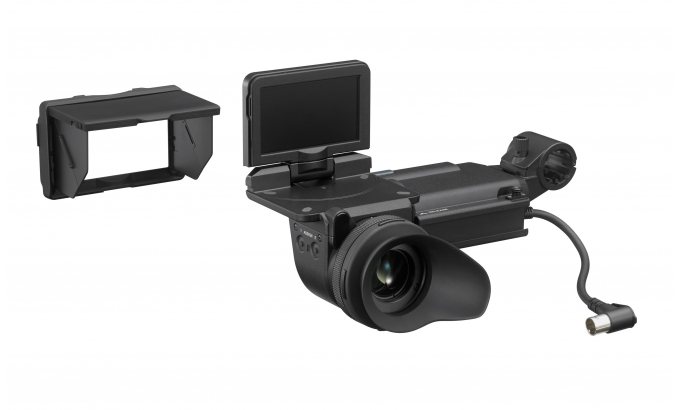

Foldable hood for sub-LCD
A flexible foldable hood for the sub-LCD facilitates outside shooting in direct sunlight and reduces reflections.
