LUPO

ACTIONPANEL DUAL COLOR HARD

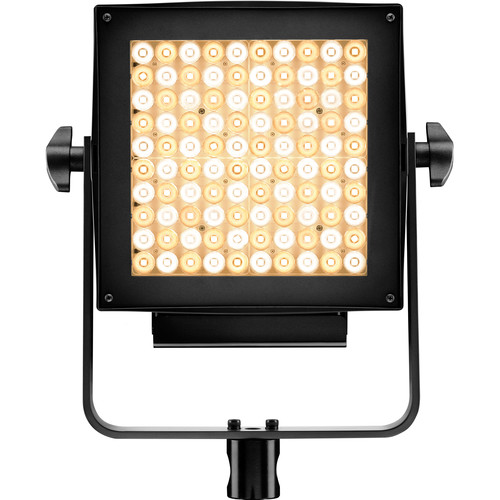

Designed to be compact and versatile while providing an advanced quality of light, the 8 x 8 x 4.1″ Actionpanel Dual Color LED Panel with manual yoke from Lupo has a variable color temperature range of 3200 to 5600K and dimming from 0 to 100%. As an indicator of highly accurate color reproduction, the panel offers a CRI/TLCI rating of 97/98, as well as high-frequency electronics that guarantee flicker-free operation for high-speed video shooting. Made of lightweight, reinforced technopolymer, the Actionpanel Dual Color has a digital display that clearly shows color, dimming level, and DMX channels in use. The fixture’s onboard DMX provides remote control from a console, while Bluetooth Long Range provides wireless control. The Actionpanel has a multi-voltage 90 to 240 VAC power supply for worldwide use and can also run on a V-mount battery when AC power is unavailable.

799,00 (ex. VAT)

SKU: 600 Categories: , ,

Designed to be compact and versatile while providing an advanced quality of light, the 8 x 8 x 4.1″ Actionpanel Dual Color LED Panel with manual yoke from Lupo has a variable color temperature range of 3200 to 5600K and dimming from 0 to 100%. As an indicator of highly accurate color reproduction, the panel offers a CRI/TLCI rating of 97/98, as well as high-frequency electronics that guarantee flicker-free operation for high-speed video shooting. Made of lightweight, reinforced technopolymer, the Actionpanel Dual Color has a digital display that clearly shows color, dimming level, and DMX channels in use. The fixture’s onboard DMX provides remote control from a console, while Bluetooth Long Range provides wireless control. The Actionpanel has a multi-voltage 90 to 240 VAC power supply for worldwide use and can also run on a V-mount battery when AC power is unavailable.

  • Variable color temperature control from 3200 to 5600K
  • 0 to 100% dimming with flicker-free operation
  • Onboard DMX and wireless Bluetooth Long Range for remote operation
  • Lightweight, rugged reinforced technopolymer for easy portability
  • Multi-voltage 90 to 240 VAC for worldwide use
  • Mains or optional V-mount battery power

Light Fixture

Item Type 1 x LED Light Panel
Photometrics 1208 fc / 13,000 Lux at 3.3′ / 1 m*

*Standardized Measurement Supplied by the Manufacturer

Color Temperature 3200 to 5600K
Color Accuracy Standard CRI 96
TLCI 98
Cooling System Fan
Dimming Yes, Built-In Dimmer
0 to 100%
Front Accessory Mount Proprietary

Connectivity

Max DMX Control Channels 512

Power & I/O

Power Source AC to DC Adapter (Included)
Battery (Not Included)
Inputs/Outputs 1 x XLR 5-Pin DMX Input
1 x XLR 5-Pin DMX Output
1 x Barrel / Coax Power Input
1 x USB-A Service Input
Battery Plate Type 1 x V-Mount (Not Included)
Battery 1 x Rechargeable (Not Included)
AC Input Power 90 to 240 VAC, 50 / 60 Hz
DC Input Power 14.8 to 24 VDC
Included Adapter / Cable 1 x Edison Plug to Unspecified AC to DC Adapter
Inline Switch No
Power Pass-Thru No
Power Consumption 60 W

Mounting

Yoke Type Manually-Operated Yoke
Fixture Mounting 1 x 5/8″ Receiver (Via Yoke Mount)

General

Materials Polymer (Housing)
Dimensions 8 x 8 x 4.1″ / 20.3 x 20.3 x 10.4 cm (Fixture)
Weight 4.4 lb / 2 kg

Packaging Info

Package Weight 8.26 lb
Box Dimensions (LxWxH) 20.3 x 18.1 x 5.6″

Additional information

Brand

Lupo Actionpanel Dual Color LED Panel (Manual Yoke)
Manual Yoke
Power Cord
Limited 1-Year warranty
