Unique point source design, recycled-aluminium cabinet with extraordinary directivity and minimum diffraction for outstanding nearfield and ultra-nearfield performance, 110 dB SPL and 38 Hz LF roll-off. Ready for precision setup, calibration and monitor control for Mac and PC with recommended GLM™ kit. Integrated DSP and amplifiers 250 W + 150 W + 150 W driving two oval Woofers 170 x 90 mm (6 5⁄8 x 3 1/2 in), Coaxial 90 mm (3 1/2 in) Midrange and 19 mm (3/4 in) Tweeter. Balanced analogue in, AES/EBU in and out (XLR). Iso-Pod™ table support included. Integrated mounts, extensive range of accessories. Dimensions with Iso-Pod™: H 370 x W 237 x D 243 mm (14 9/16 x 9 3/8 x 9 1/2 in), weight 9.8 kg (22 lb). Physical volume control option available (9310AM) – requires GLM™ kit.

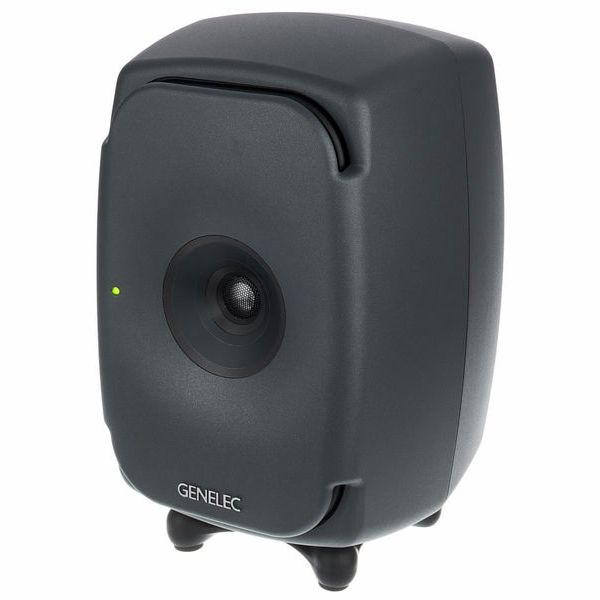

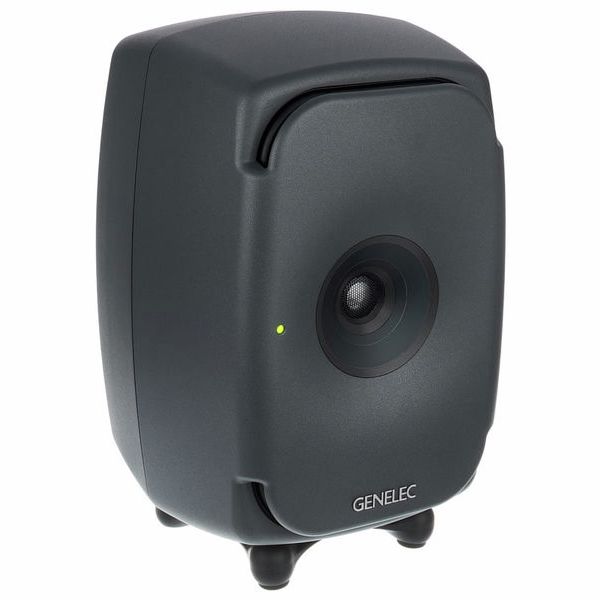

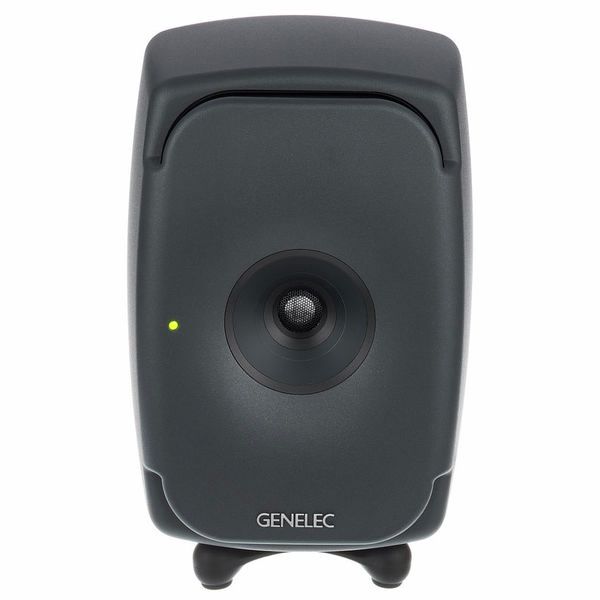

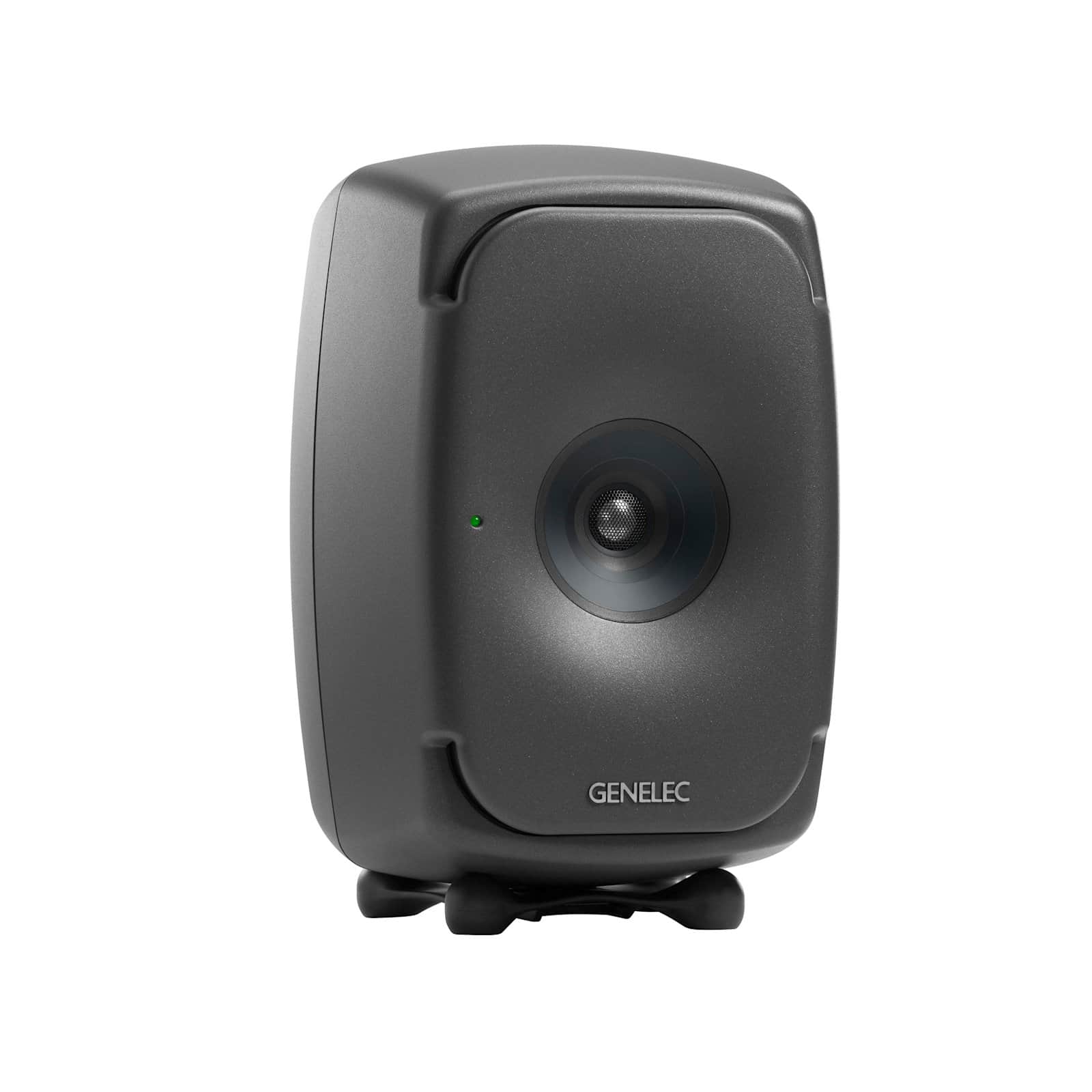

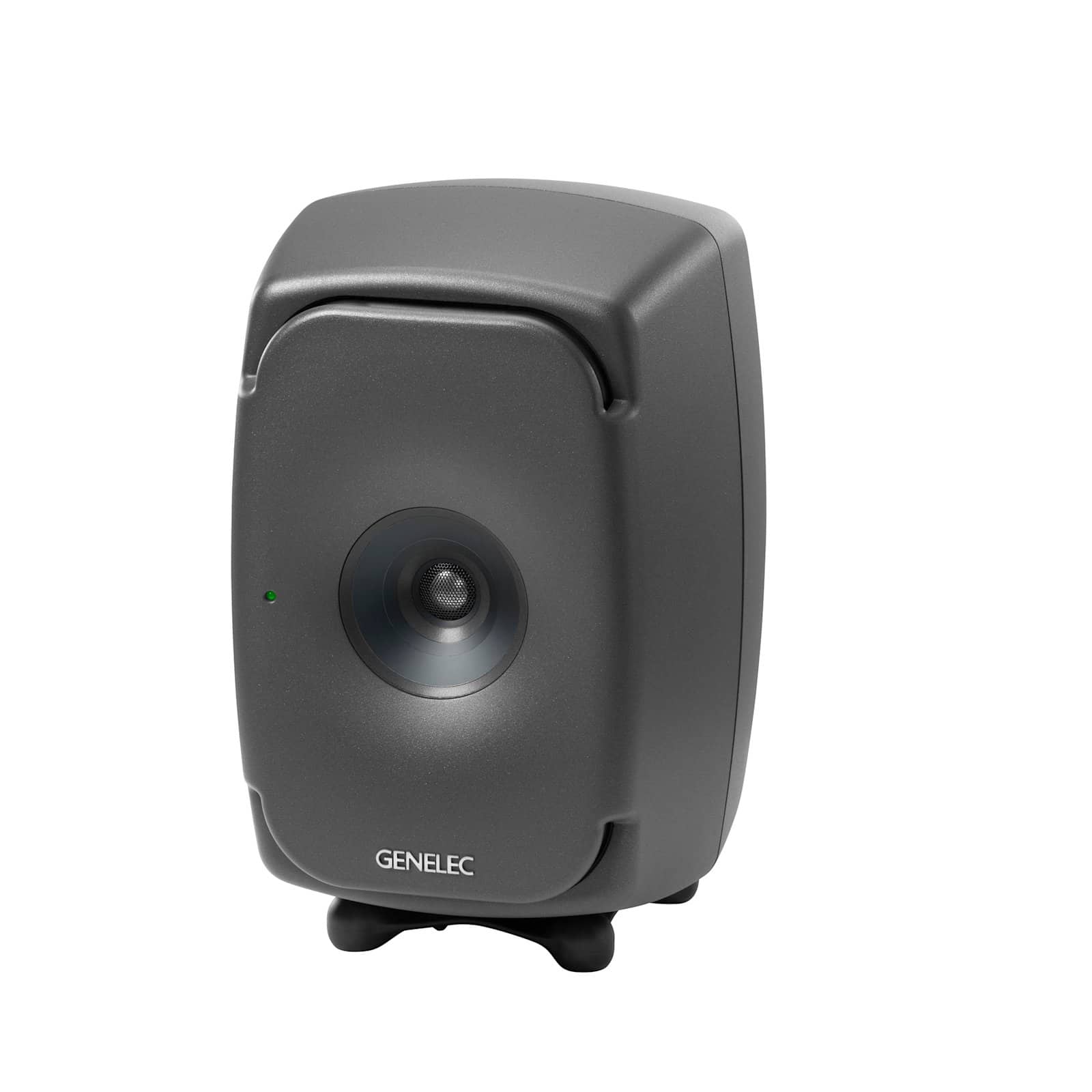

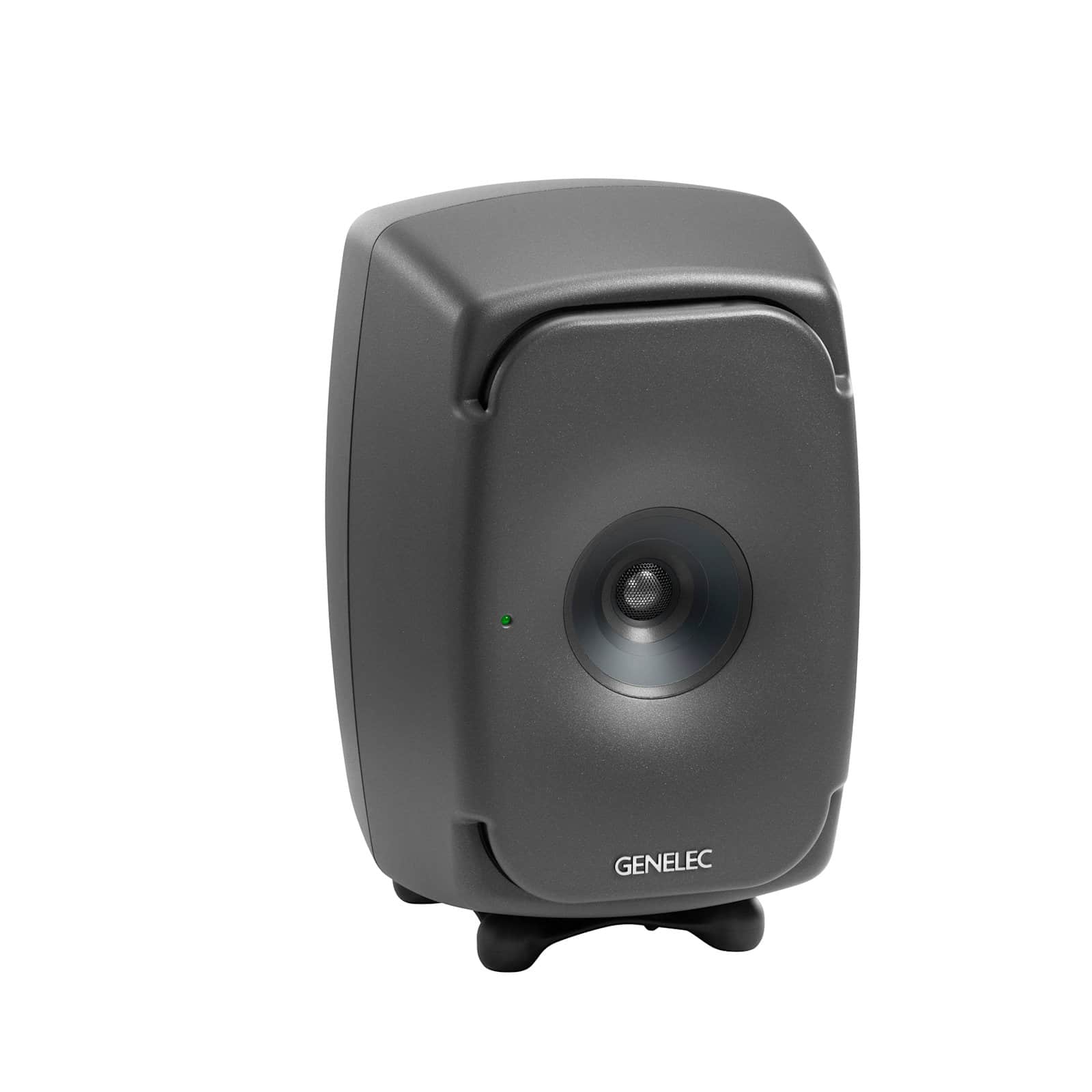

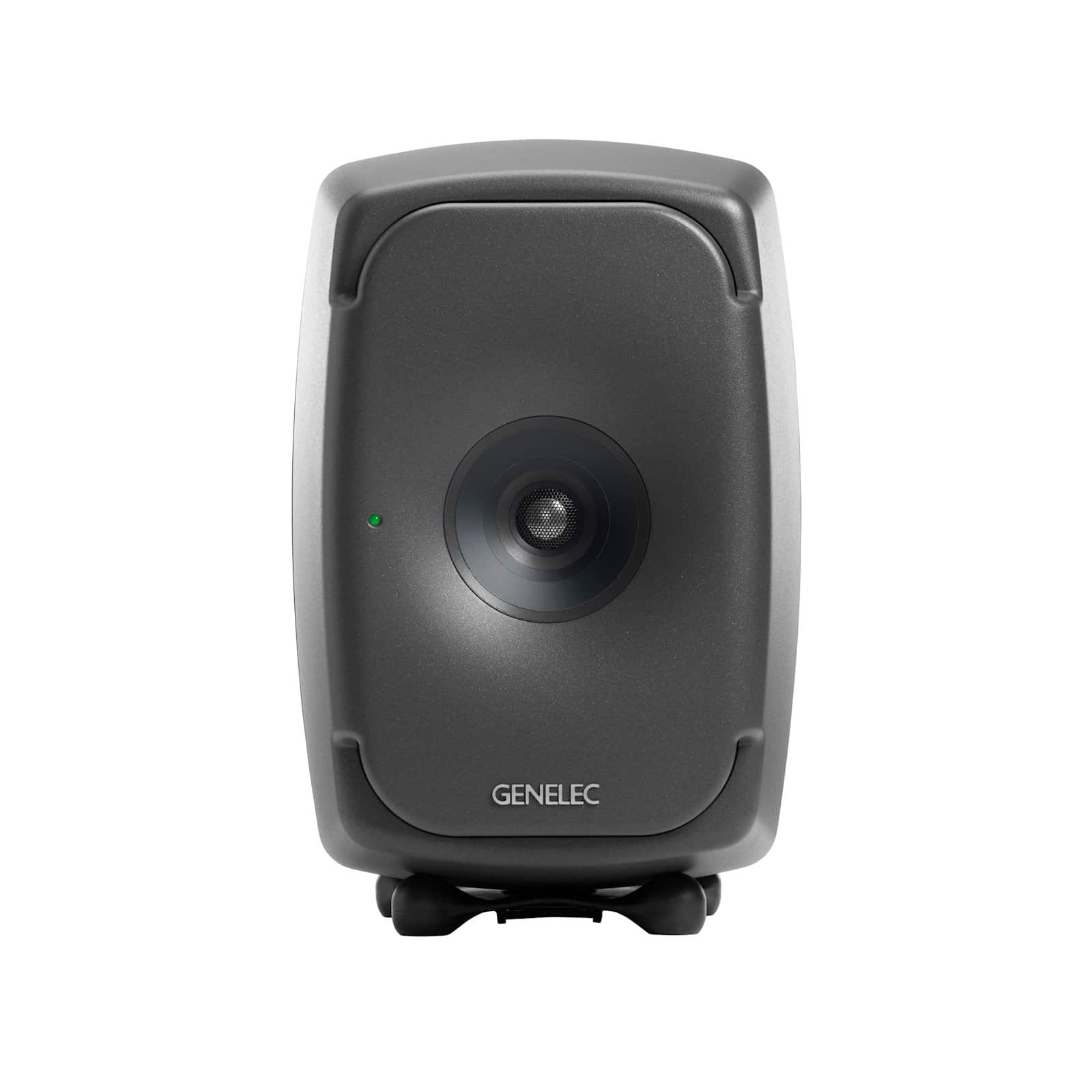

Smart three-way coaxial monitor – Dark grey
Unique point source design, recycled-aluminium cabinet with extraordinary directivity and minimum diffraction for outstanding nearfield and ultra-nearfield performance, 110 dB SPL and 38 Hz LF roll-off. Ready for precision setup, calibration and monitor control for Mac and PC with recommended GLM™ kit. Integrated DSP and amplifiers 250 W + 150 W + 150 W driving two oval Woofers 170 x 90 mm (6 5⁄8 x 3 1/2 in), Coaxial 90 mm (3 1/2 in) Midrange and 19 mm (3/4 in) Tweeter. Balanced analogue in, AES/EBU in and out (XLR). Iso-Pod™ table support included. Integrated mounts, extensive range of accessories. Dimensions with Iso-Pod™: H 370 x W 237 x D 243 mm (14 9/16 x 9 3/8 x 9 1/2 in), weight 9.8 kg (22 lb). Physical volume control option available (9310AM) – requires GLM™ kit.
2.291,00€ (ex. VAT)
- Equipment: 2 Oval woofers 170 x 90 mm (6 5/8″ x 3 1/2″), 90 mm midrange and 19 mm tweeter as coaxial
- Frequency range: 38 – 37,000 Hz (-6 dB)
- Linear frequency response: ± 1.5 dB (45 – 20,000 Hz)
- Maximum sound pressure level: 110 dB (Short-term 1 m)
- Power amplifier: 250 Watt for woofer, 150 Watt for midrange, 150 Watt for tweeter
- DSP filter and calibration with GLM2 (GLM2 set optional, not included)

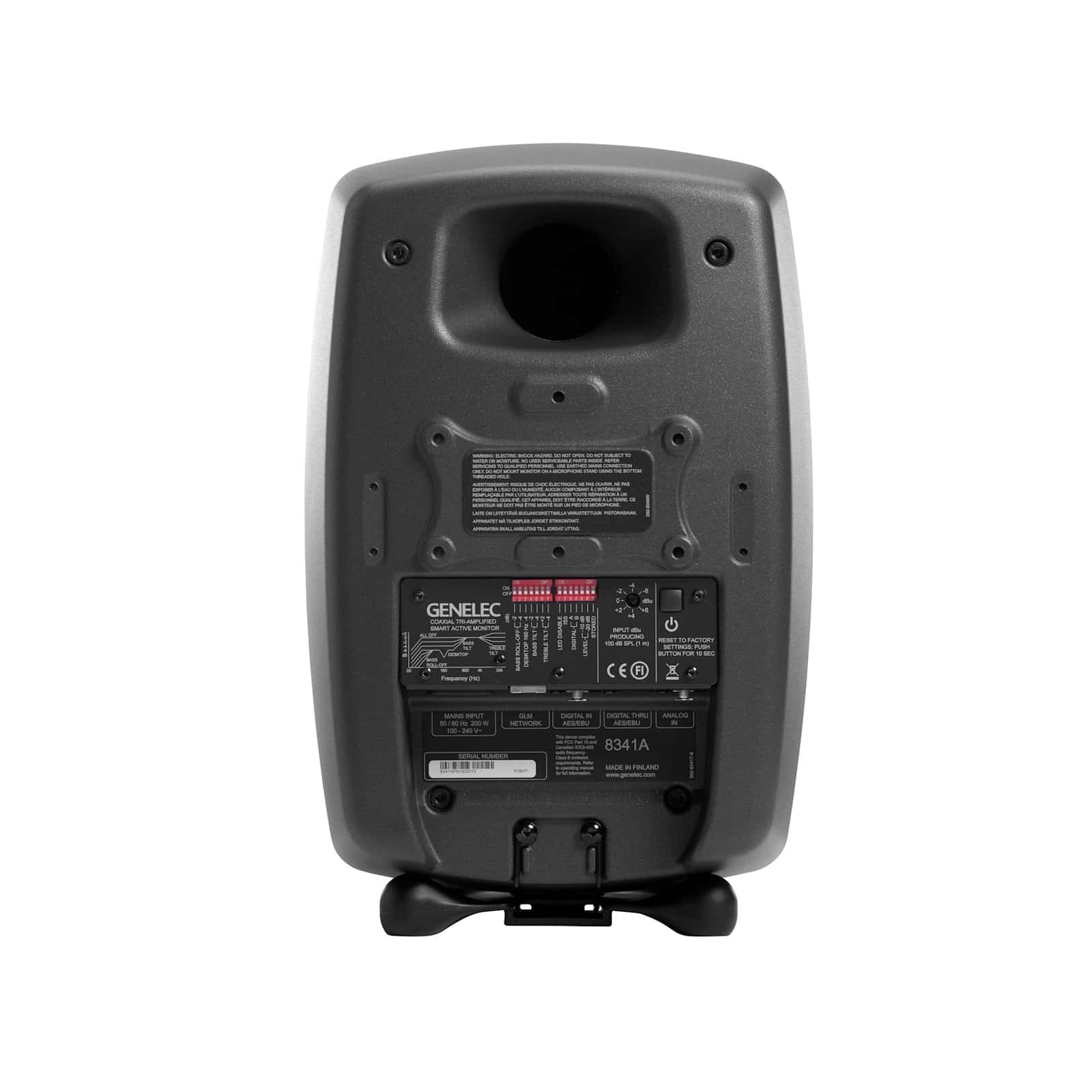

- 1x Analogue input XLR
- 1x Digital input AES/EBU XLR
- 1x Digital output AES/EBU XLR
- 2x RJ45
- Can be operated vertically and horizontally
- Dimensions (H x W x D): 350 x 237 x 243 mm
- Height with Iso-Pod: 370 mm
- Weight: 9.8 kg
- Colour: Anthracite
- Includes Iso-Pod
