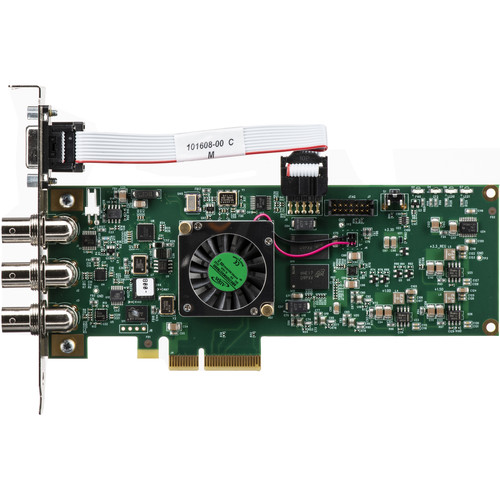

The AJA KONA 1-T is the tall, consumer version of the KONA 1 capture and playback card. It’s Mac/Windows/Linux 2-lane PCIe 2.0-compatible and offers single-channel 3G-SDI 2K/HD 60p frame-accurate input/output and a selectable reference/LTC input. It also features an integrated, exposed 9-pin RS-422 control port (while the short version is designed for OEM developers and comes without this port). The KONA 1-T allows efficient capture, monitoring, and/or playback and also supports simultaneous monitoring during capture.
AJA
Single channel 3G/1,5G-SDI I/O PCIe 2.0 full size card
The AJA KONA 1-T is the tall, consumer version of the KONA 1 capture and playback card. It’s Mac/Windows/Linux 2-lane PCIe 2.0-compatible and offers single-channel 3G-SDI 2K/HD 60p frame-accurate input/output and a selectable reference/LTC input. It also features an integrated, exposed 9-pin RS-422 control port (while the short version is designed for OEM developers and comes without this port). The KONA 1-T allows efficient capture, monitoring, and/or playback and also supports simultaneous monitoring during capture.
Key Features
- Single-channel 3G-SDI 2K/HD 60p capture and playback
- Tall, consumer version with RS-422 9-pin connector
- Selectable HD/SD reference/LTC input
- Simultaneous monitoring during capture
- Mac/Windows/Linux 2-lane PCIe 2.0 compatible
- Full-size BNC ports
- 16-channel SDI embedded audio input/output, 24-bit 48 kHz
- ANC capture and processing
- 8-/10-bit YCbCr and RGB frame buffer formats
794,00€ (ex. VAT)
