AJA openGear 12G-SDI/Dante 64-Channel Embedder/Disembedder Card

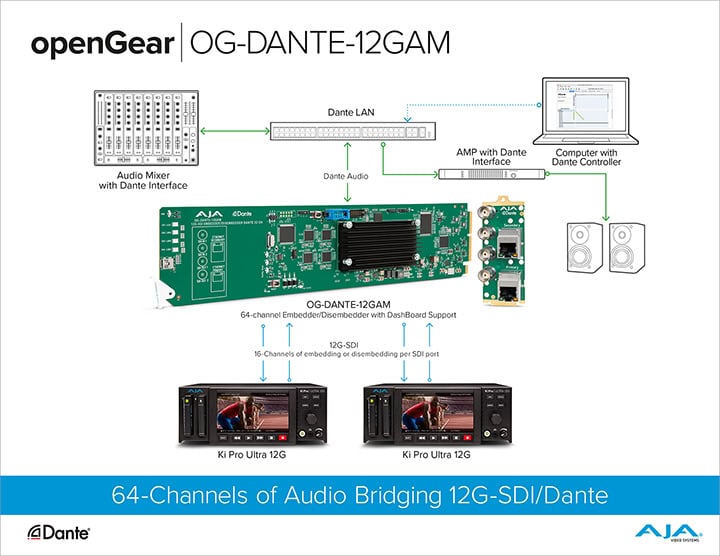

Create an audio bridge between your video signal with embedded audio and a Dante audio network with the openGear 12G-SDI/Dante 64-Channel Embedder/Disembedder from AJA. This hot-swappable openGear card provides dual 12G-SDI input and output with 32 channels of embedded audio when installed in an openGear frame, and it disembeds up to 32 channels of audio onto an existing Dante network.

2.676,00 (ex. VAT)

SKU: OG-DANTE-12GAM Categories: , ,

Create an audio bridge between your video signal with embedded audio and a Dante audio network with the openGear 12G-SDI/Dante 64-Channel Embedder/Disembedder from AJA. This hot-swappable openGear card provides dual 12G-SDI input and output with 32 channels of embedded audio when installed in an openGear frame, and it disembeds up to 32 channels of audio onto an existing Dante network.

Each 12G-SDI input supports up to 16 channels of audio which totals 64 channels of simultaneous audio input and output. It features redundant Gigabit Ethernet ports, so your link to the Dante network is never interrupted. It also features two internal signal generators so an external one is not required. The card can be configured and controlled using the DashBoard software, and its disembedded audio streams are compatible with a wide range of Dante-compatible software such as Dante Controller and Dante Via.

Key Features

Compatible with AJA OG-X-FR and OG-3-FR openGear frames
Hot-swappable
Support for 12G/6G/3G-SDI audio embedding to and from the Dante audio ecosystem
Dual, independent 12G-SDI input and output ports, each supporting 16 audio channels totaling 64 channels per card in a compact design
One primary GigE port and one secondary for Dante network redundancy
64 channels of simultaneous SDI/Dante audio bridging per card
Two internal Signal Generators enables transmitting Dante audio channels over SDI without having an external SDI source signal
DashBoard support for remote signal status and configuration
Compatible with a range of Dante software from Audinate, including Dante Controller for routing and configuration choices
Its high density and small form factor enables 10 cards to be utilized in a single openGear frame for up to 640 channels of SDI/Dante audio bridging
Supported within OG-X-FR and OG-3-FR openGear frames
