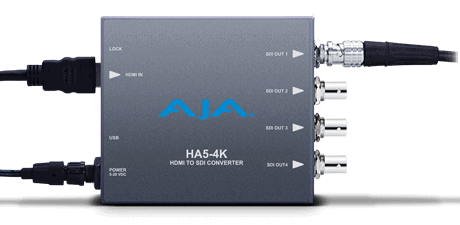

AJA HA5-4K HDMI to SDI converter for professional video signals.
HDMI 2.0 to 4K 4x 3G-SDI Conversion - Image 2
HDMI 2.0 to 4K 4x 3G-SDI Conversion - Image 3
AJA

HDMI 2.0 to 4K 4x 3G-SDI Conversion

The AJA HA5-4K converts HDMI to 4K SDI with four 3G-SDI outputs, ideal for bringing HDMI video from DSLRs, mirrorless, action or prosumer 4K cameras into professional SDI workflows.

877,00€ (ex. VAT)

SKU: HA5-4K Categories: , , Brand:

The AJA HA5-4K converts an HDMI 2.0b input to 4K SDI across four 3G-SDI BNC outputs, supporting Two Sample Interleave (2SI) or Square Division (Quadrant) pixel mapping. It decodes HDR InfoFrames and embeds up to 8 channels of HDMI audio into the 16-channel SDI output.

A universal power supply is included and the unit is backed by a five year warranty.

Video Formats

  • SD, HD, 2K, UltraHD and 4K, up to 60p
  • YCbCr 4:2:2/4:4:4, RGB 4:4:4 (SMPTE or Full level), 10-bit

Video Input Digital (HDMI)

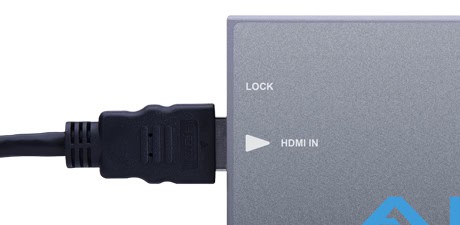

  • 1 x HDMI Type A, HDMI v2.0b
  • HDR InfoFrame decoder (CTA-861.3, HDMI v2.0b); HDR VPID generation with pass-through or override

Video Output Digital

  • 4 x 3G-SDI BNC, SMPTE-259/292/424 (quad link 4K)
  • Two Sample Interleave (2SI) or Square Division (Quadrant) pixel mapping

Audio

  • HDMI embedded audio input, 24-bit, 8-channel
  • SDI embedded audio output, 24-bit (SD limited to 20-bit), 16-channel

Physical

  • Size (w x d x h): 4.6″ x 4.02″ x 0.9″ (116.84 x 102.11 x 22.86 mm)
  • Weight: 0.5 lb (0.3 kg)

Power

  • 5-20VDC regulated, power supply required (included with purchase); 100-240VAC universal input

Environmental Specifications

  • Safe Operating Temperature: 0 to 40°C (32 to 104°F)
  • Safe Storage Temperature (Power OFF): -40 to 60°C (-40 to 140°F)
  • Operating Relative Humidity: 10-90% noncondensing
  • Operating Altitude: <3,000 meters (<10,000 feet)

Warranty

  • Five year warranty

Additional information

Brand

  • AJA HA5-4K
  • Universal power supply
