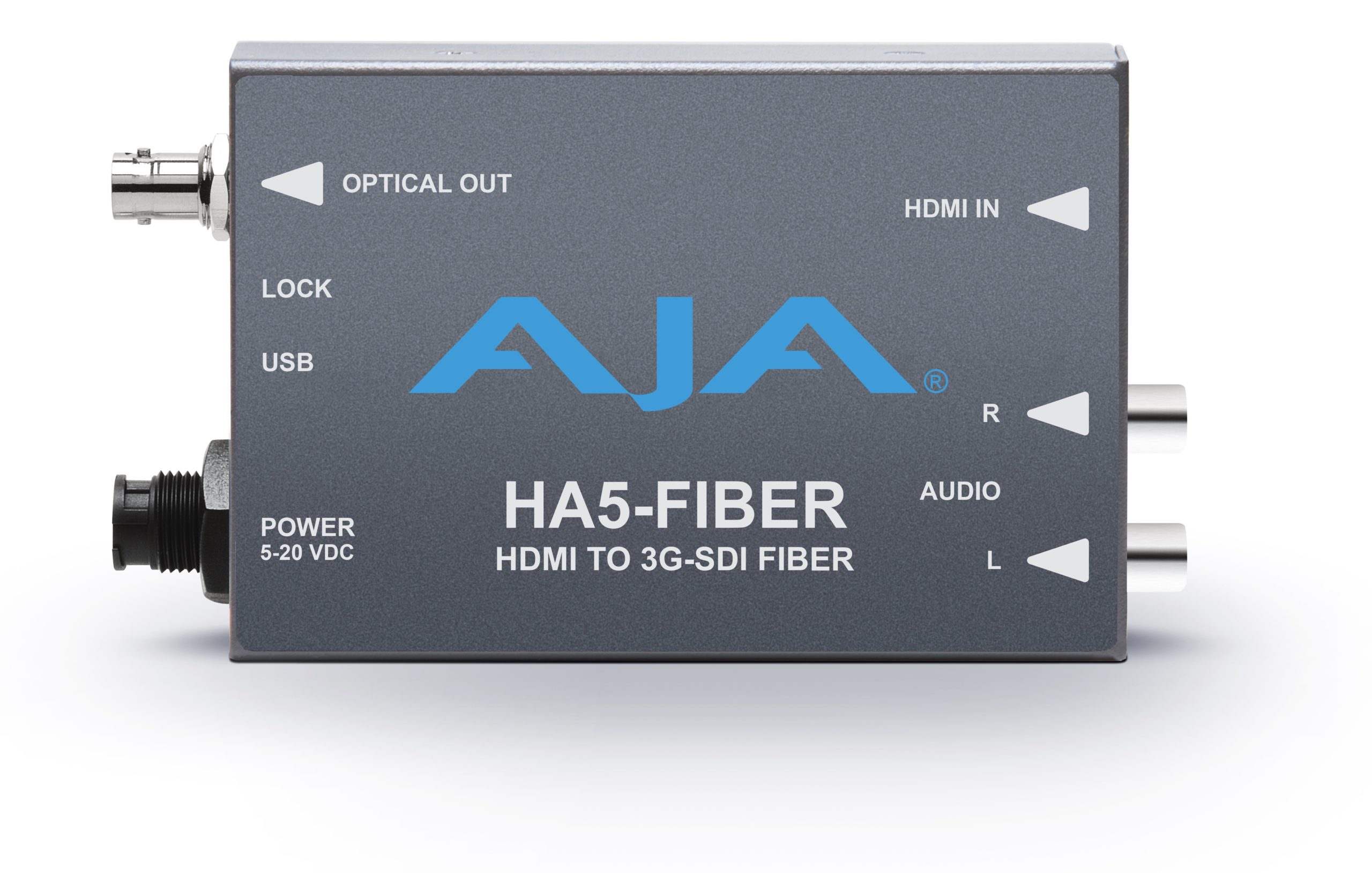

AJA HA5-FIBER HDMI to 3G-SDI fiber converter for professional video transmission.

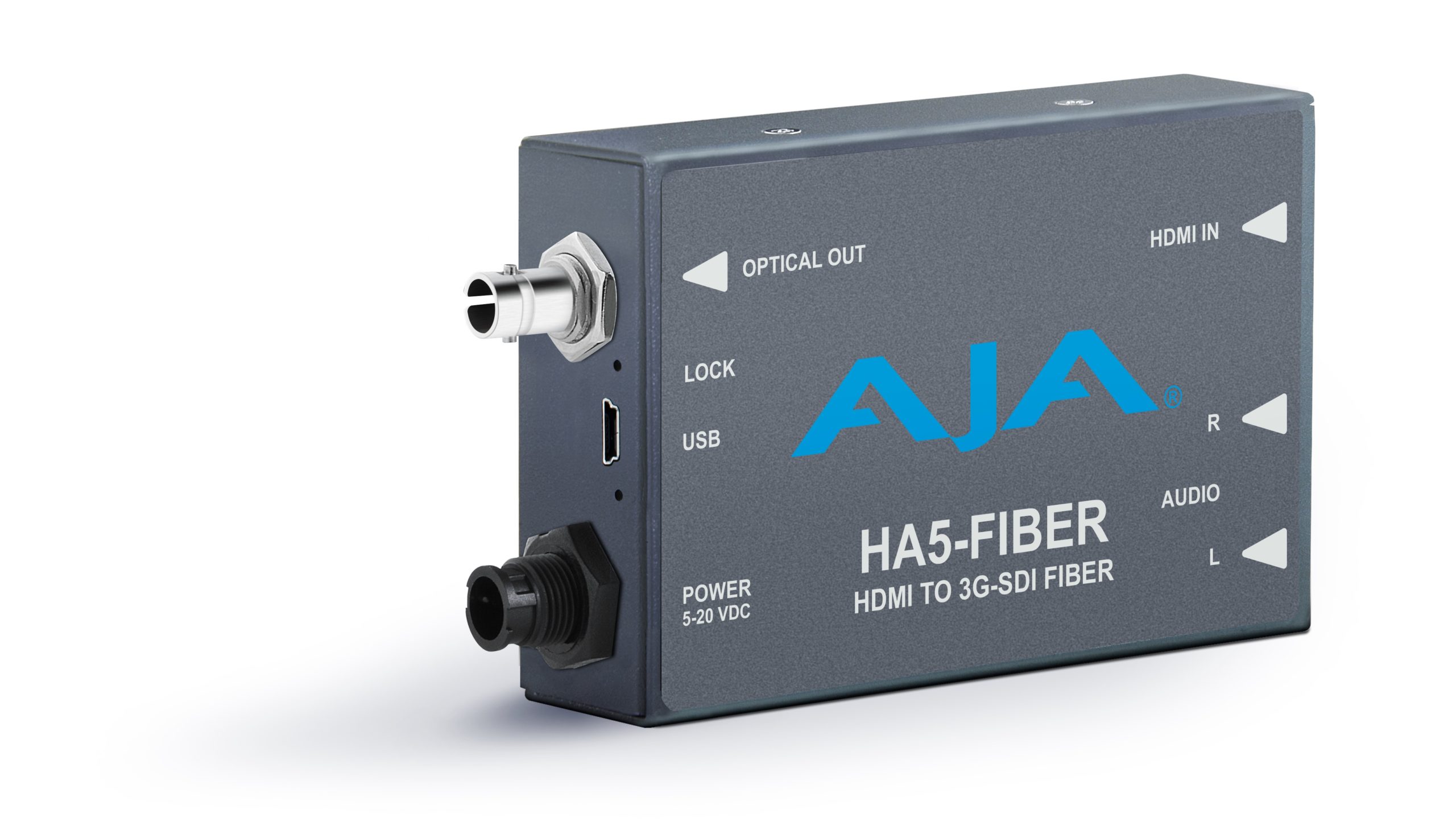

A compact HDMI to 3G-SDI fiber converter by AJA with multiple input and output ports.
AJA

HDMI to ST fiber 3G-SDI protocol

The AJA HA5-Fiber converts an HDMI input to 3G-SDI over single-mode ST fiber, transporting HDMI sources over long fiber runs in a small, camera-mountable form factor.

927,00€ (ex. VAT)

SKU: HA5-Fiber Categories: , , Brand:

The AJA HA5-Fiber converts an HDMI 1.4 input to 3G-SDI over single-mode 1310 nm fiber optic cable (ST-style connector). It embeds up to 8 channels of HDMI audio or a 2-channel analog (RCA) input, and its small form factor fits easily onto the back of a camera or behind equipment.

A universal power supply is included and the unit is backed by a five year warranty.

Video Formats

  • SD and HD, up to 1080p 60

Video Input Digital (HDMI)

  • 1 x HDMI Type A, HDMI v1.4
  • YCbCr 4:2:2/4:4:4/4:2:0, 8 or 10-bit (HFR 4:2:2 limited to 10-bit)

Video Output

  • Single-mode optical fiber, ST connector, SMPTE-259/292/424 (HD/SD-SDI), 1310 nm

Audio

  • HDMI embedded audio input, 24-bit, 8-channel
  • 2-channel RCA analog audio input (-10 dBu nominal)

Physical

  • Size (w x d x h): 4.6″ x 2.4″ x 1.0″ (116.84 x 60.96 x 25.4 mm)
  • Weight: 0.3 lb (0.2 kg)

Power

  • Universal power supply included; 100-240VAC, 50/60 Hz universal input

Environmental Specifications

  • Safe Operating Temperature: 0 to 40°C (32 to 104°F)
  • Safe Storage Temperature (Power OFF): -40 to 60°C (-40 to 140°F)
  • Operating Relative Humidity: 10-90% noncondensing
  • Operating Altitude: <3,000 meters (<10,000 feet)

Warranty

  • Five year warranty

Additional information

Brand

  • AJA HA5-Fiber
  • Universal power supply
