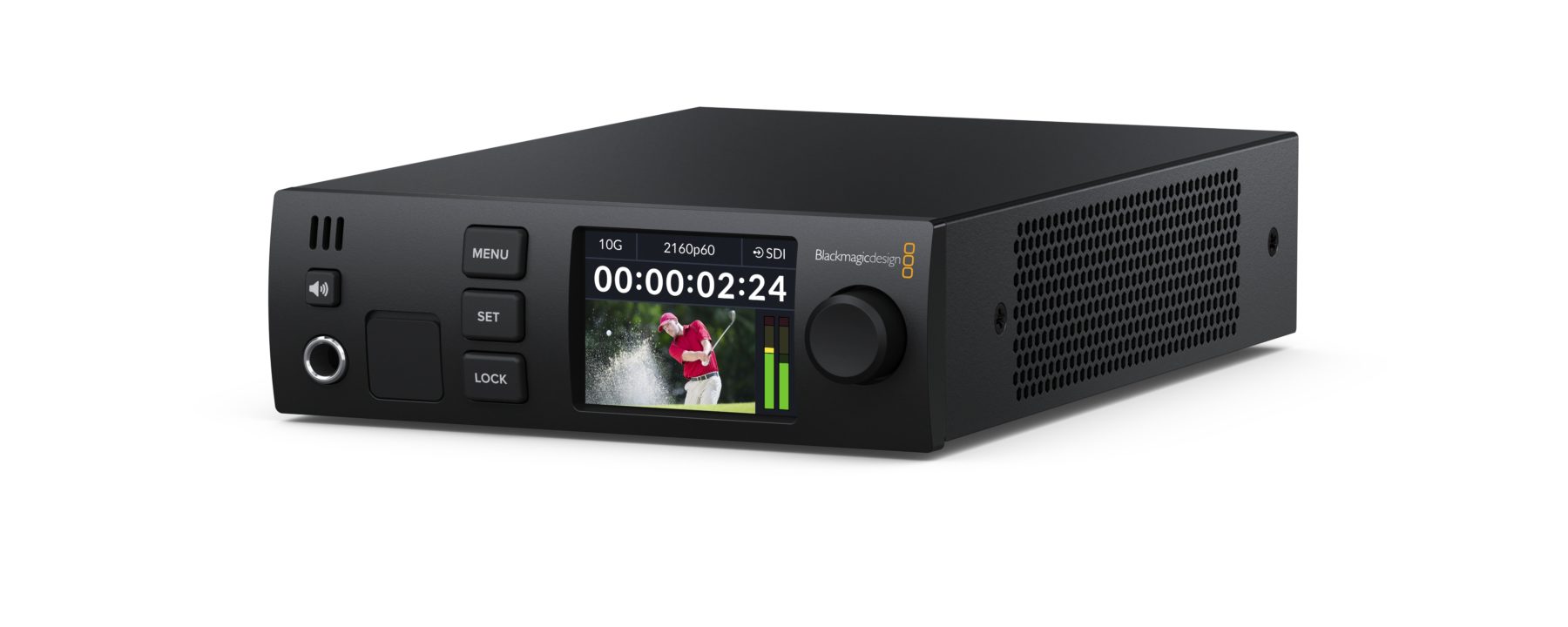

Blackmagic 2110 IP SDI to HDMI 12G converts 12G-SDI or SMPTE-2110 video to HDMI in a rack mount design. You get the highest quality conversion between all SD, HD and Ultra HD video standards with 3D LUTs for accurate calibration of HDMI displays. Includes front panel LCD with video, meters and menus, 2 channel XLR monitoring outputs with variable gain and delay, speaker and headphone connector.
1
1
SD, 1.5G, 3G, 6G and 12G
1
1 x 10G Ethernet
16 channels embedded input and output audio on ST‑2110 IP video via 10G Ethernet.
16 channels embedded audio.
16 channels embedded audio.
8 channels embedded audio.
8 channels embedded audio.
2 channels of professional balanced analog audio with 3‑pin XLR connectors.
1 x 6.35 mm headphone jack.
1 x USB‑C up to 1080p60
Ethernet supports 10/100/1000/10G BASE‑T for SMPTE 2110 IP video in and out, configuration and software updates.
USB‑C for webcam out, updates and configuration
525i59.94 NTSC, 625i50 PAL
720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60,
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI,
2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI
SMPTE 259M, SMPTE 274M, SMPTE 292M, SMPTE 296M SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2036‑1, SMPTE 2048‑1, SMPTE 2081‑10, SMPTE 2081‑11, SMPTE 2081‑12, SMPTE 2082‑10, SMPTE 2082‑11, SMPTE 2082‑12 and SMPTE ST2108‑1
RP 188/SMPTE 12M‑2 and closed captioning.
Television standard sample rate of 48 kHz and 24 bit.
8, 10 RGB 4:4:4 in all modes up to 1080p30 and 8, 10‑bit YUV 4:2:2 in all modes.
Rec. 601, Rec. 709, Rec. 2020
720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p62
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI
4:2:2
YUV
Front panel audio monitor speaker with speaker control button, plus 6.35 mm headphone socket.
IGMP v2
Sender: Narrow
Receiver: Narrow, Wide Synchronous, Asynchronous
Audio Conformance level: Level C
Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M‑2, closed captioning and HDR static metadata.
Blackmagic IP10 codec used when converting 2160p59.94 and 2160p60 to 10G 2110 IP video.
IEEE 1588-2008 (PTP v2)
ST 2059-1
ST 2059-2
v1.3.2
Peer-to-peer via mDNS/DNS‑SD
v1.1.2
Natural Grouping
Receiver capabilities

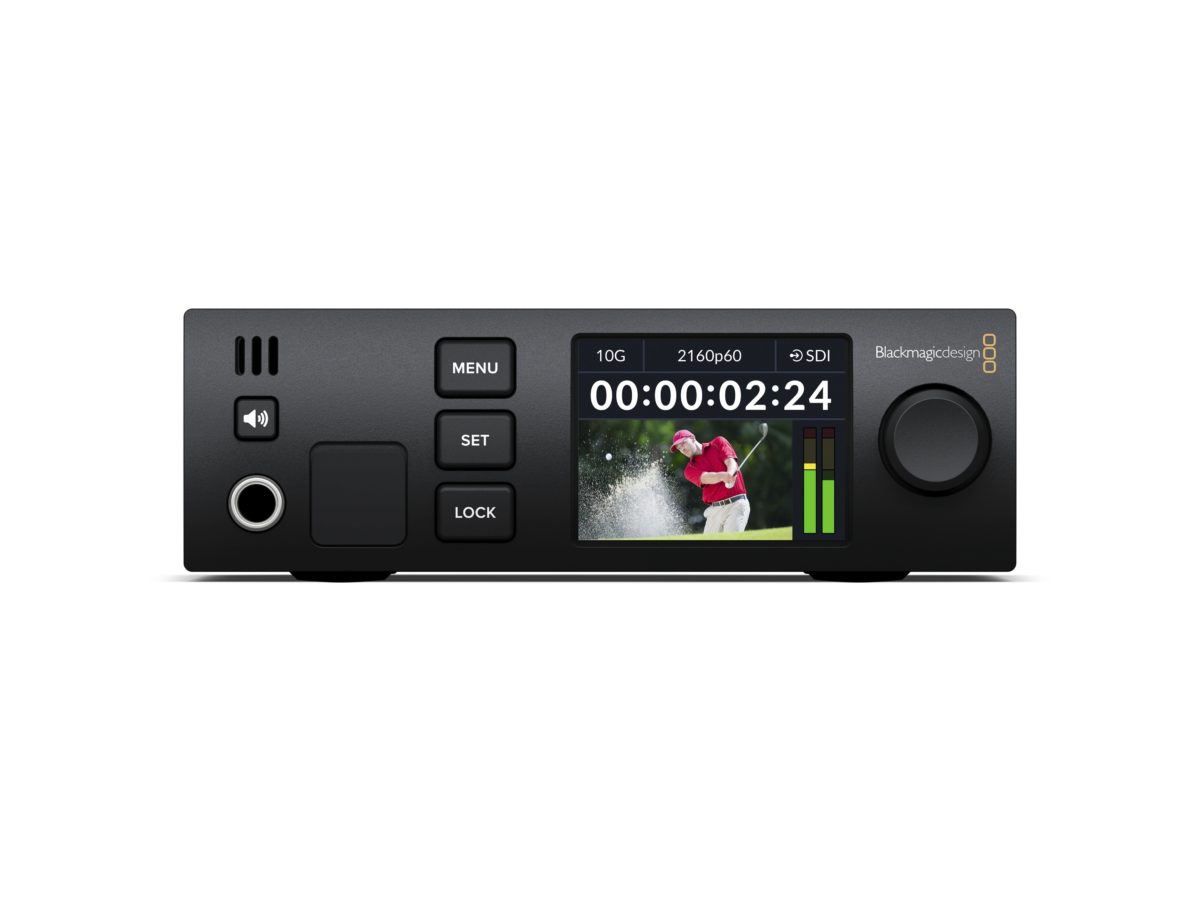

Built in control panel including 4 buttons, spin knob control and 2.2 inch color display.
RJ-45 10Gb/s Ethernet and USB‑C.
REST API over Ethernet for external control via HTTP when used with REST client applications.
Mac 13.0 Ventura,
Windows 10 and 11.
1 x Internal 100 – 240V AC 50/60Hz.

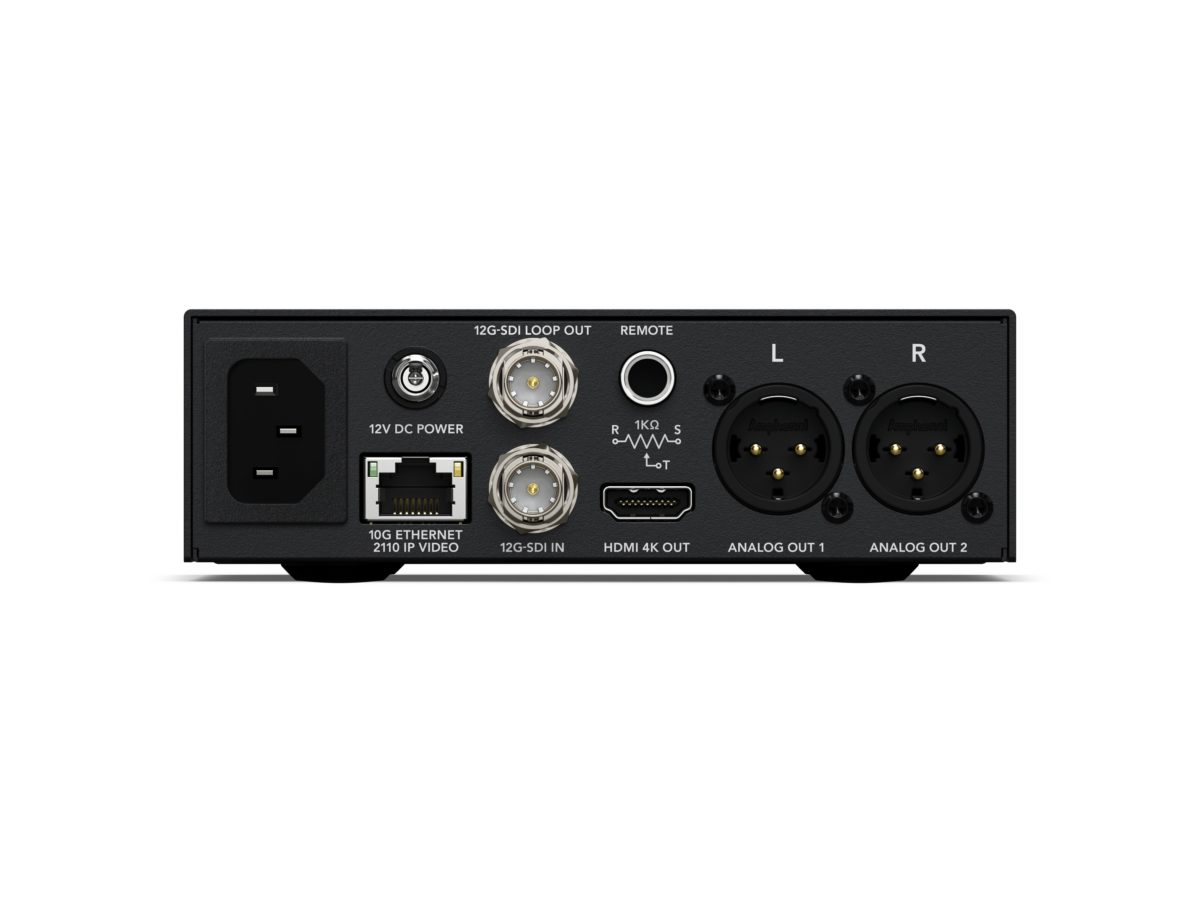

1 x IEC C14 socket for AC power.
1 x Locking 5.5mm barrel +12V DC input for external power supply or battery use.
TBC

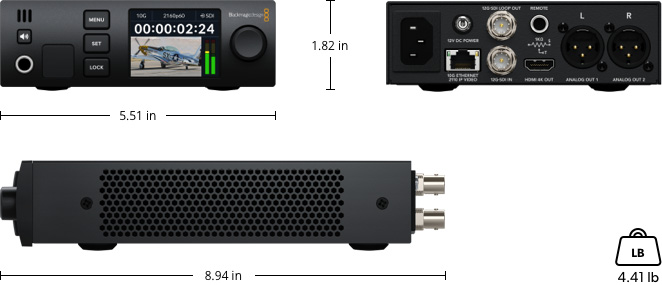

One third rack unit width, 1 rack unit height.
0° C to 40° C (32° – 104°F)
-20° to 45° C (-4° to 113° F)
0% to 90% non‑condensing
