12G-SDI bidirectional muxer/demuxer with quadrant to 2SI

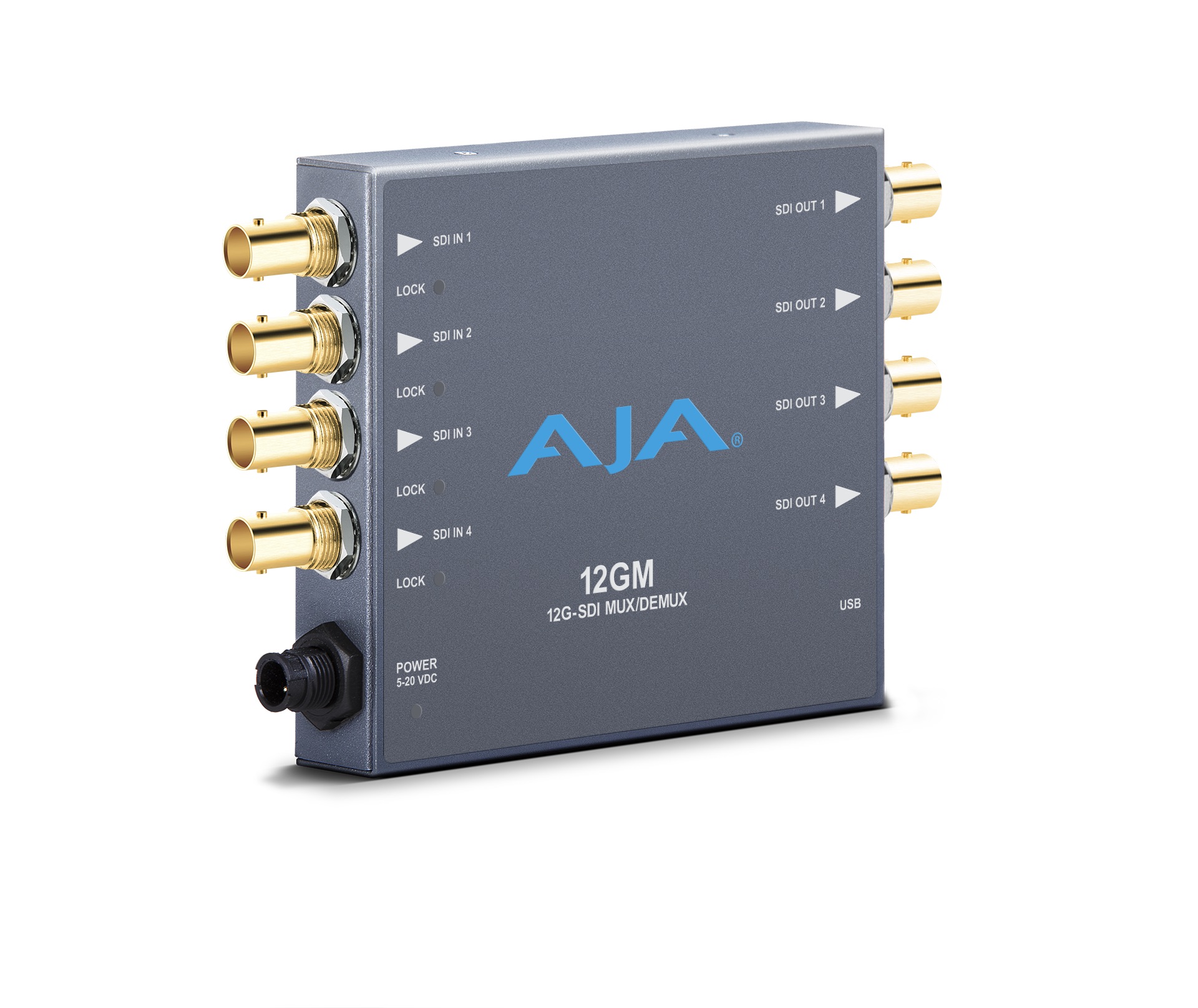

The AJA 12GM is a compact SDI transport Mini-Converter that muxes and demuxes between single-link 12G-SDI and quad-link 3G-SDI, supporting 4K, UltraHD, 2K, HD and SD workflows.
The AJA 12GM converts 12G-SDI to quad-link 3G-SDI and quad-link 3G-SDI back to single-link 12G-SDI, allowing 4K/UltraHD signals to move between modern single-cable and legacy quad-link infrastructure. Conversion is bidirectional and format agnostic across SD, HD, 2K, UltraHD and 4K.
A universal power supply is included and the unit is backed by a five year warranty.
Video Formats
SD, HD, 2K, UltraHD and 4K, up to 12G-SDI
Video Input Digital
4 x 12G-SDI BNC, SMPTE 259/292/372/424/2081/2082
Quad-link 3G-SDI (Level A or B Dual Link)
Video Output Digital
4 x 12G-SDI BNC, SMPTE 259/292/372/424/2081/2082
Quad-link 3G-SDI (Level A or B Dual Link)
Physical
Size (w x d x h): 5.76″ x 4.02″ x 0.90″ (146.31 x 102.11 x 22.86 mm)
Weight: 0.6 lb (0.3 kg)
Power
5-16VDC regulated, 12 watts, power supply required (included with purchase); AC Adapter 100-240VAC, 50/60 Hz universal input
Environmental Specifications
Safe Operating Temperature: 0 to 40°C (32 to 104°F)
Safe Storage Temperature (Power OFF): -40 to 60°C (-40 to 140°F)
