1×6 12G-SDI Reclocking Distribution Amplifier

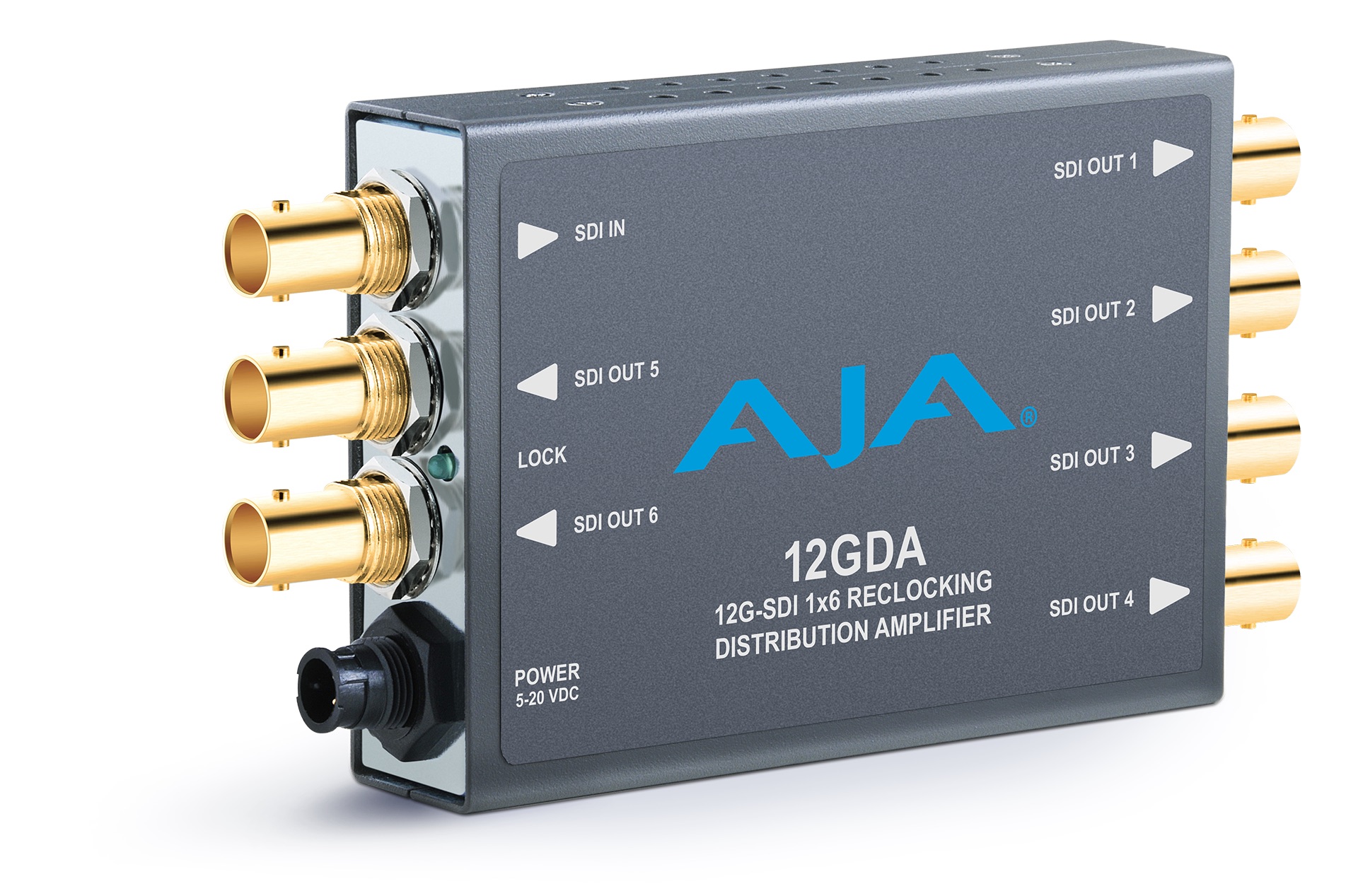

The AJA 12GDA is a miniature 1×6 12G-SDI reclocking distribution amplifier that takes a single SDI input and feeds six separately buffered outputs, helping facilities cut cable runs and installation time. Format agnostic from SD to 12G-SDI, it supports 4K/UltraHD single-link workflows with automatic input detection, reclocking, cable equalization and pass-through of all ancillary data including HDR metadata.

615,00€ (ex. VAT)

SKU: 12GDA Categories: , , Brand:

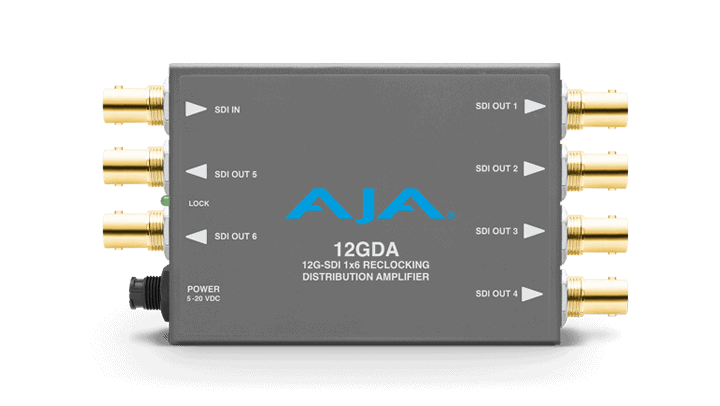

The AJA 12GDA is a miniature 1×6 12G-SDI reclocking distribution amplifier designed to save on cable runs and install times. With support for 12G-SDI single-link 4K/UltraHD workflows, this format agnostic device delivers six separately buffered SDI outputs that are identical to the recovered input. Automatic input detection, reclocking and cable equalization preserve signal integrity over long runs, while a throw-down package and LED signal detection indicator make installation and monitoring effortless.

The 12GDA passes all ancillary data and supports pass-through of SDI metadata, including HDR, making it ideal for distributing high resolution, high frame rate and deep color content over a single cable. A universal power supply is included and the unit is backed by a five year warranty.

Video Formats

  • 100 Mbps – 12 Gbps, format agnostic

Video Input Digital

  • 1 x 12G-SDI BNC, SMPTE-259/292/424/2081/2082

Video Output Digital

  • 6 x 12G-SDI BNC, SMPTE-259/292/424/2081/2082

Cable Equalization

  • Belden 1694A coax: 12 Gbps, 70m; 6 Gbps, 120m; 3 Gbps, 190m; 1.5 Gbps, 195m; 270 Mbps, 405m

Reclocking

  • 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.967 Gbps, 2.970 Gbps, 5.934 Gbps, 5.940 Gbps, 11.868 Gbps, 11.880 Gbps – Auto Select
  • All other rates are passed through and not reclocked

Physical

  • Size (w x d x h): 5.8″ x 3.1″ x 1″ (147mm x 79mm x 25mm)
  • Weight: 0.7 lb (0.3 kg)

Power

  • Power Supply: +5-20VDC, regulated, 3 watts, power supply required (included with purchase)
  • AC Adapter: 100-240VAC, 50/60 Hz, universal input

Environmental Specifications

  • Safe Operating Temperature: 0 to 40°C (32 to 104°F)
  • Safe Storage Temperature (Power OFF): -40 to 60°C (-40 to 140°F)
  • Operating Relative Humidity: 10-90% noncondensing
  • Operating Altitude: <3,000 meters (<10,000 feet)

Warranty

  • Five year warranty

Additional information

Brand

  • AJA 12GDA 12G-SDI 1×6 Distribution Amplifier
  • Universal power supply (AC adapter, 100-240VAC, 50/60 Hz)
