4-Channel 3G-SDI balanced analog audio (dis)embedder, XLR
AJA

4-Channel 3G-SDI balanced analog audio (dis)embedder, XLR

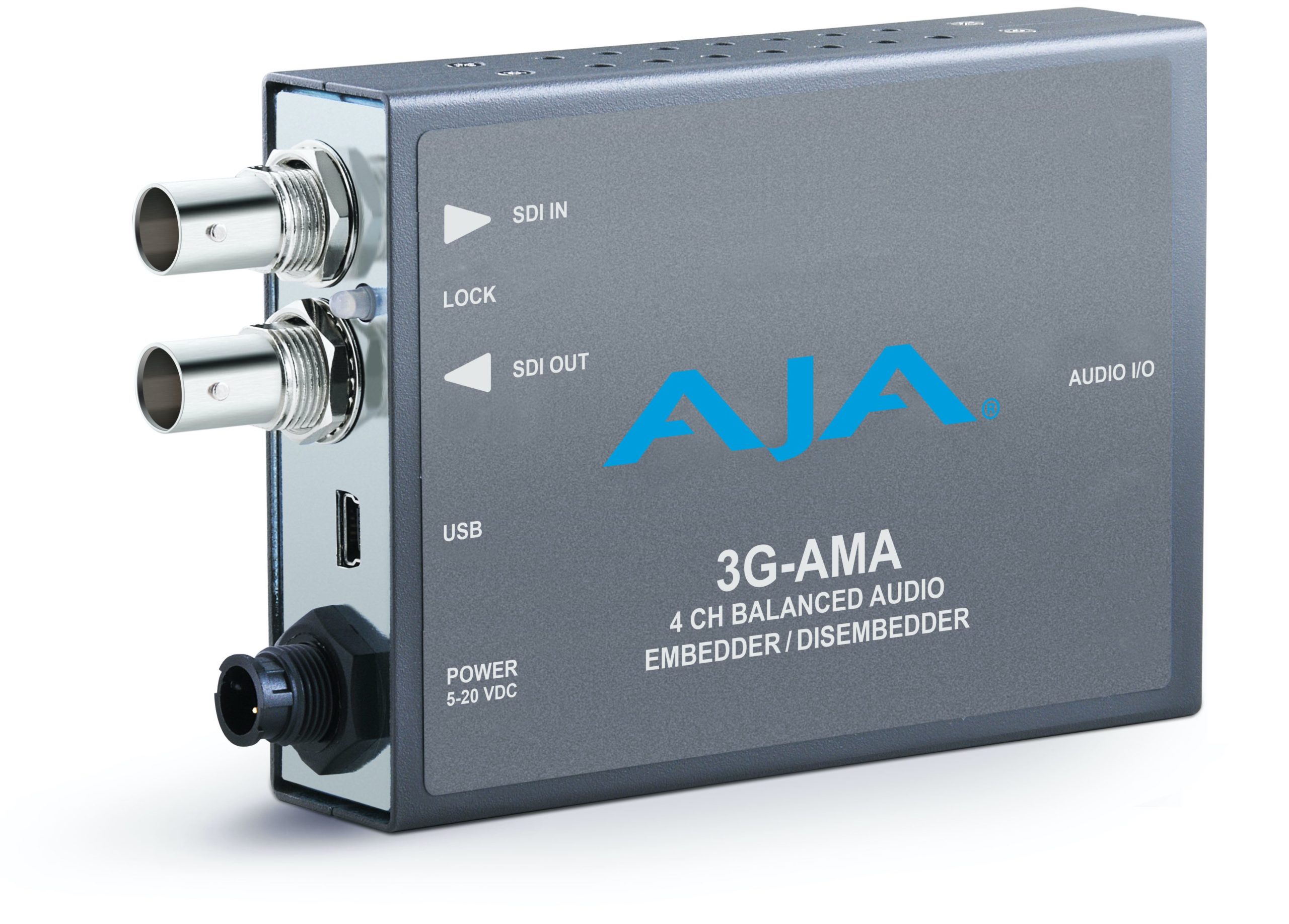

The AJA 3G-AMA is a 4-channel balanced analog audio embedder/disembedder Mini-Converter with 3G-SDI input and output up to 1080p 60. Audio disembedding is always functional, providing four analog outputs, while embedding is user-selectable on a channel-pair basis.

1.050,00€ (ex. VAT)

SKU: 3G-AMA Categories: , , Brand:

The AJA 3G-AMA embeds and disembeds four channels of balanced analog audio on a 3G-SDI signal, supporting SD, HD and 2K formats up to 1080p 60. Analog disembedding is always functional with four analog outputs, while audio embedding can be selected on a channel-pair basis to either pass the SDI input audio or embed input analog audio from the supplied XLR breakout cable. Audio levels are selectable, 24-bit converters are used throughout, and the unit automatically detects and configures the input video standard.

A universal power supply is included and the unit is backed by a five year warranty.

Video Formats

  • SD, HD and 2K, up to 1080p 60
  • 3G-SDI Level A or B; also supports 1.5G-SDI

Video Input Digital

  • 1 x 3G-SDI BNC (Level A or B), SMPTE 259/292/424

Video Output Digital

  • 1 x 3G-SDI BNC, SMPTE 259/292/424

Audio

  • 4-channel balanced analog audio; 1 x 25-pin D female connector on converter, 4 channels in, 4 channels out
  • Breakout cable provided (1 x 25-pin D male): 4 x XLR female inputs, 4 x XLR male outputs
  • 24-bit digital audio converters; selectable analog audio levels
  • Analog disembedding always functional (four analog outputs); embedding user-selectable on a channel-pair basis
  • Embedded audio: SMPTE 272M (SD) 20-bit, SMPTE 299M (3G/HD) 24-bit, 48 kHz; up to 16 channels supported

Physical

  • Size (w x d x h): 5.8″ x 3.1″ x 1.0″ (147.32 x 78.74 x 25.4 mm)
  • Weight: 0.63 lb (0.29 kg)

Power

  • +5-20VDC, 5 watts, power supply required (included with purchase)

Environmental Specifications

  • Safe Operating Temperature: 0 to 40°C (32 to 104°F)
  • Safe Storage Temperature (Power OFF): -40 to 60°C (-40 to 140°F)
  • Operating Relative Humidity: 10-90% noncondensing
  • Operating Altitude: <3,000 meters (<10,000 feet)

Warranty

  • Five year warranty

Additional information

Brand

  • AJA 3G-AMA
  • 25-pin D to XLR audio breakout cable
  • Universal power supply
