8-Channel 3G-SDI AES audio embedder/disembedder, XLR

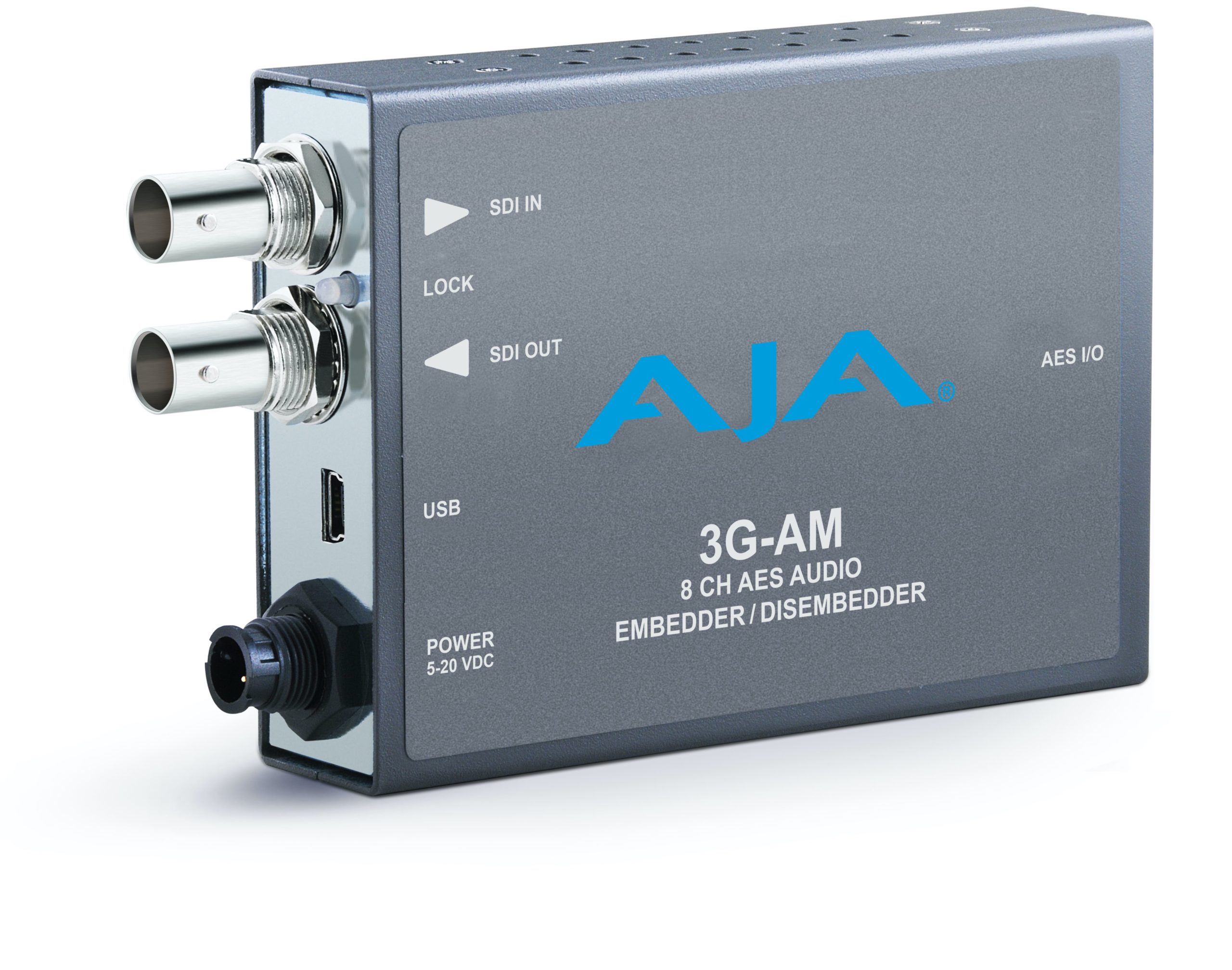

The AJA 3G-AM-XLR is an 8-channel AES audio embedder/disembedder Mini-Converter with 3G-SDI input and output up to 1080p 60, using a 25-pin D connector with a XLR breakout cable. AES disembedding is always functional, providing four AES outputs, while embedding is user-selectable on a channel-pair basis.

1.050,00€ (ex. VAT)

SKU: 3G-AM-XLR Categories: , , Brand:

The AJA 3G-AM-XLR embeds and disembeds up to eight channels of AES audio on a 3G-SDI signal, supporting SD, HD and 2K formats up to 1080p 60. AES disembedding is always functional with four AES outputs, while audio embedding can be selected on a channel-pair basis to either pass the SDI input audio or embed input AES audio from the supplied XLR breakout cable. AES inputs are sample-rate converted to 48 kHz synchronous to the video input, and the unit automatically detects and configures the input video standard.

A universal power supply is included and the unit is backed by a five year warranty.

Video Formats

  • SD, HD and 2K, up to 1080p 60
  • 3G-SDI Level A or B; also supports 1.5G-SDI

Video Input Digital

  • 1 x 3G-SDI BNC (Level A or B), SMPTE 259/292/424

Video Output Digital

  • 1 x 3G-SDI BNC, SMPTE 259/292/424

Audio

  • 8-channel AES PCM audio; 1 x 25-pin D female connector on converter, 8 channels in, 8 channels out, selectable in pairs
  • Breakout cable provided (1 x 25-pin D male): 4 x XLR female inputs, 4 x XLR male outputs (AES3, 110 ohm)
  • AES disembedding always functional (four AES outputs); embedding user-selectable on a channel-pair basis; AES inputs sample-rate converted to 48 kHz synchronous to video
  • Embedded audio: SMPTE 272M (SD) 20-bit, SMPTE 299M (3G/HD) 24-bit, 48 kHz; up to 16 channels supported

Physical

  • Size (w x d x h): 5.8″ x 3.1″ x 1.0″ (147.32 x 78.74 x 25.4 mm)
  • Weight: 0.61 lb (0.28 kg)

Power

  • +5-20VDC, 5 watts, power supply required (included with purchase)

Environmental Specifications

  • Safe Operating Temperature: 0 to 40°C (32 to 104°F)
  • Safe Storage Temperature (Power OFF): -40 to 60°C (-40 to 140°F)
  • Operating Relative Humidity: 10-90% noncondensing
  • Operating Altitude: <3,000 meters (<10,000 feet)

Warranty

  • Five year warranty

Additional information

Brand

  • AJA 3G-AM-XLR
  • 25-pin D to XLR audio breakout cable
  • Universal power supply
