3G-SDI to DVI with Computer Resolutions Scaling
AJA

3G-SDI to DVI with Computer Resolutions Scaling

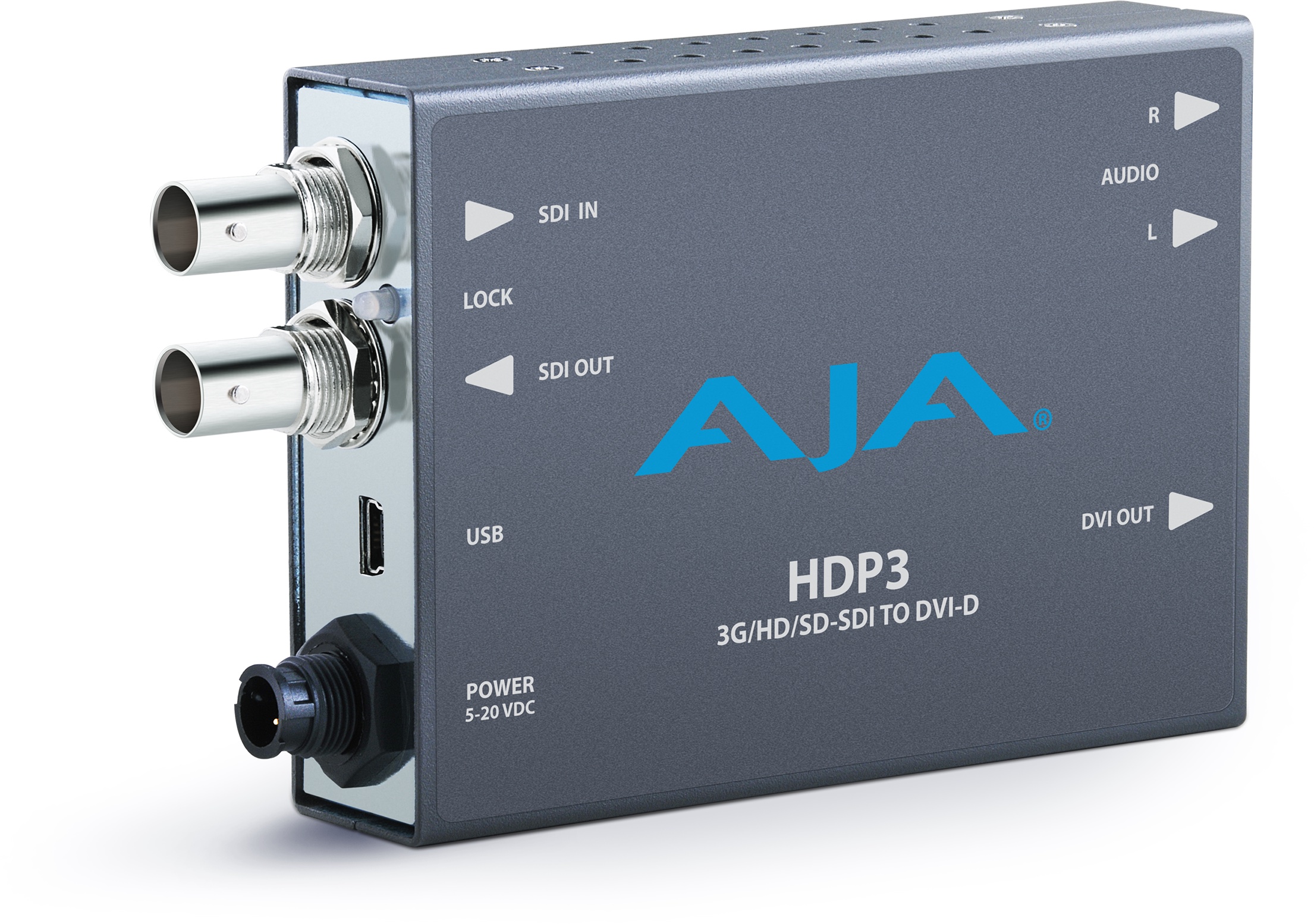

The AJA HDP3 is a miniature 3G-SDI to DVI-D converter with a high-quality scaling and de-interlacing engine, driving LCD, DLP and Plasma monitors or projectors.

927,00€ (ex. VAT)

SKU: HDP3 Categories: , , Brand:

The AJA HDP3 converts 3G-SDI (including 1080p 50/59.94/60) to DVI-D for digital displays, automatically adapting to popular LCD/DLP/Plasma monitors and projectors up to 1920 x 1200 and 1080p. A high-quality scaling and de-interlacing engine ensures clean images, with embedded SDI audio support.

A universal power supply is included and the unit is backed by a five year warranty.

Video Input

  • 1 x 3G-SDI (Level A), 1080p 50/59.94/60; also 1.5G-SDI HD formats

Video Output Digital

  • 1 x DVI Type D female connector
  • Automatically adapts to popular LCD/DLP/Plasma monitors and projectors up to 1920 x 1200 and 1080p
  • High-quality scaling and de-interlacing engine

Physical

  • Size (w x d x h): 5.8″ x 3.1″ x 1.0″ (147.32 x 78.74 x 25.4 mm)
  • Weight: 0.7 lb (0.3 kg)

Power

  • 5-20VDC regulated, 6.5 watts, power supply required (included with purchase)

Environmental Specifications

  • Safe Operating Temperature: 0 to 40°C (32 to 104°F)
  • Safe Storage Temperature (Power OFF): -40 to 60°C (-40 to 140°F)
  • Operating Relative Humidity: 10-90% noncondensing
  • Operating Altitude: <3,000 meters (<10,000 feet)

Warranty

  • Five year warranty

Additional information

Brand

  • AJA HDP3
  • Universal power supply
