3G ST Fiber input to HDMI and analog audio
AJA

3G ST Fiber input to HDMI and analog audio

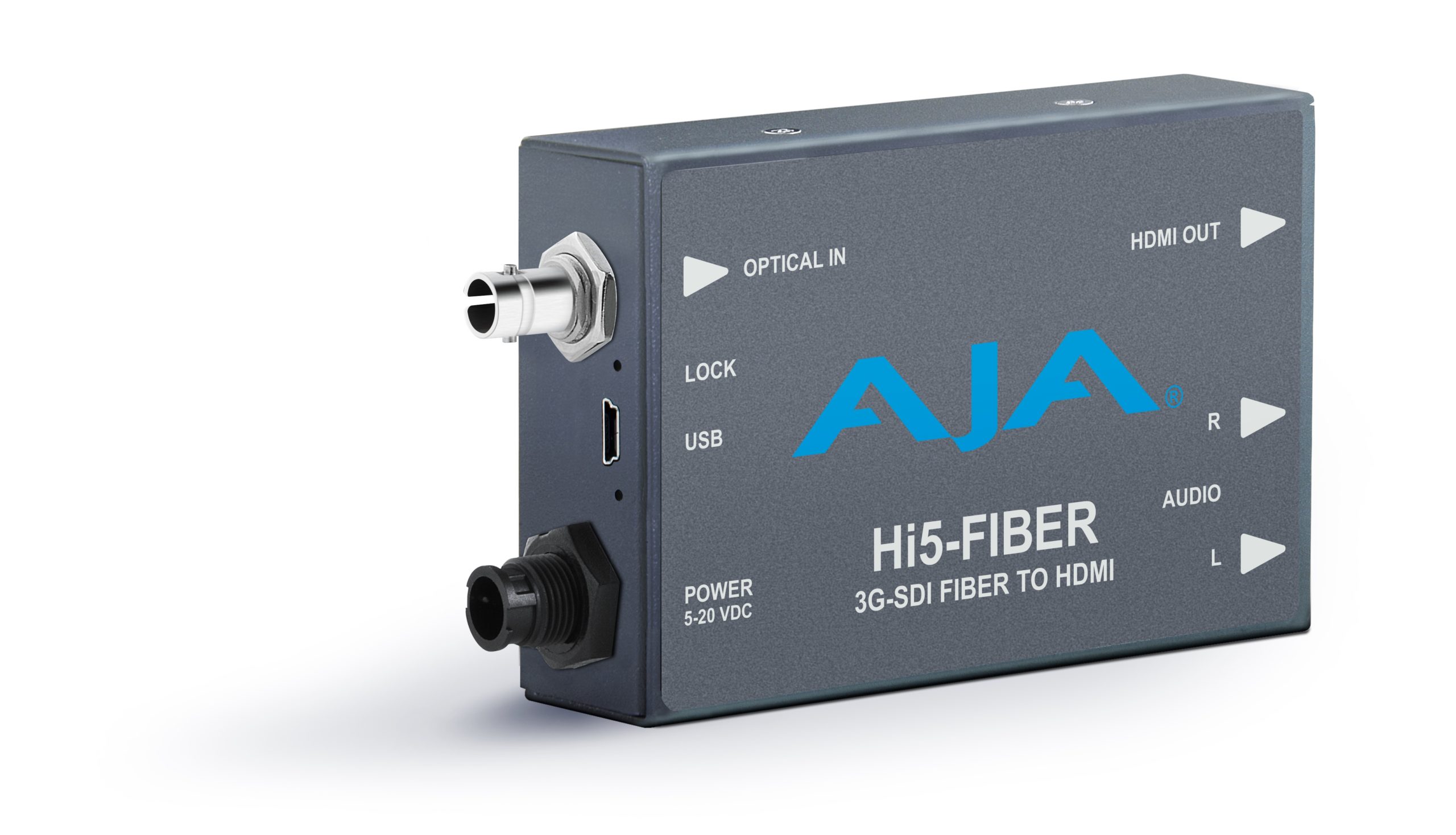

The AJA Hi5-Fiber converts 3G-SDI carried over single-mode ST fiber to HDMI, allowing a convenient single-cable audio/video connection to HDMI monitors over long distances.

927,00€ (ex. VAT)

SKU: Hi5-Fiber Categories: , , Brand:

The AJA Hi5-Fiber converts 3G-SDI over single-mode 1310 nm fiber optic cable (ST-style connector) to HDMI for driving HDMI monitors, with up to 8 channels of embedded SDI audio in the HDMI output. Its small form factor fits easily onto a camera or behind equipment.

A universal power supply is included and the unit is backed by a five year warranty.

Video Formats

  • SD, HD and 2K, up to 3G-SDI

Video Input

  • Single-mode optical fiber, ST connector, SMPTE-259/292/424 (3G/HD/SD-SDI), 1310 nm

Video Output Digital (HDMI)

  • HDMI with embedded audio up to 8 channels (selectable by Mini-Config)
  • 8-bit RGB 4:4:4, 10-bit YCbCr 4:2:2, 12-bit

Audio

  • SDI embedded audio, selectable from 16 channels

Physical

  • Size (w x d x h): 4.6″ x 2.4″ x 1.0″ (116.84 x 60.96 x 25.4 mm)
  • Weight: 0.4 lb (0.2 kg)

Power

  • Universal power supply included; 100-240VAC, 50/60 Hz universal input

Environmental Specifications

  • Safe Operating Temperature: 0 to 40°C (32 to 104°F)
  • Safe Storage Temperature (Power OFF): -40 to 60°C (-40 to 140°F)
  • Operating Relative Humidity: 10-90% noncondensing
  • Operating Altitude: <3,000 meters (<10,000 feet)

Warranty

  • Five year warranty

Additional information

Brand

  • AJA Hi5-Fiber
  • Universal power supply
