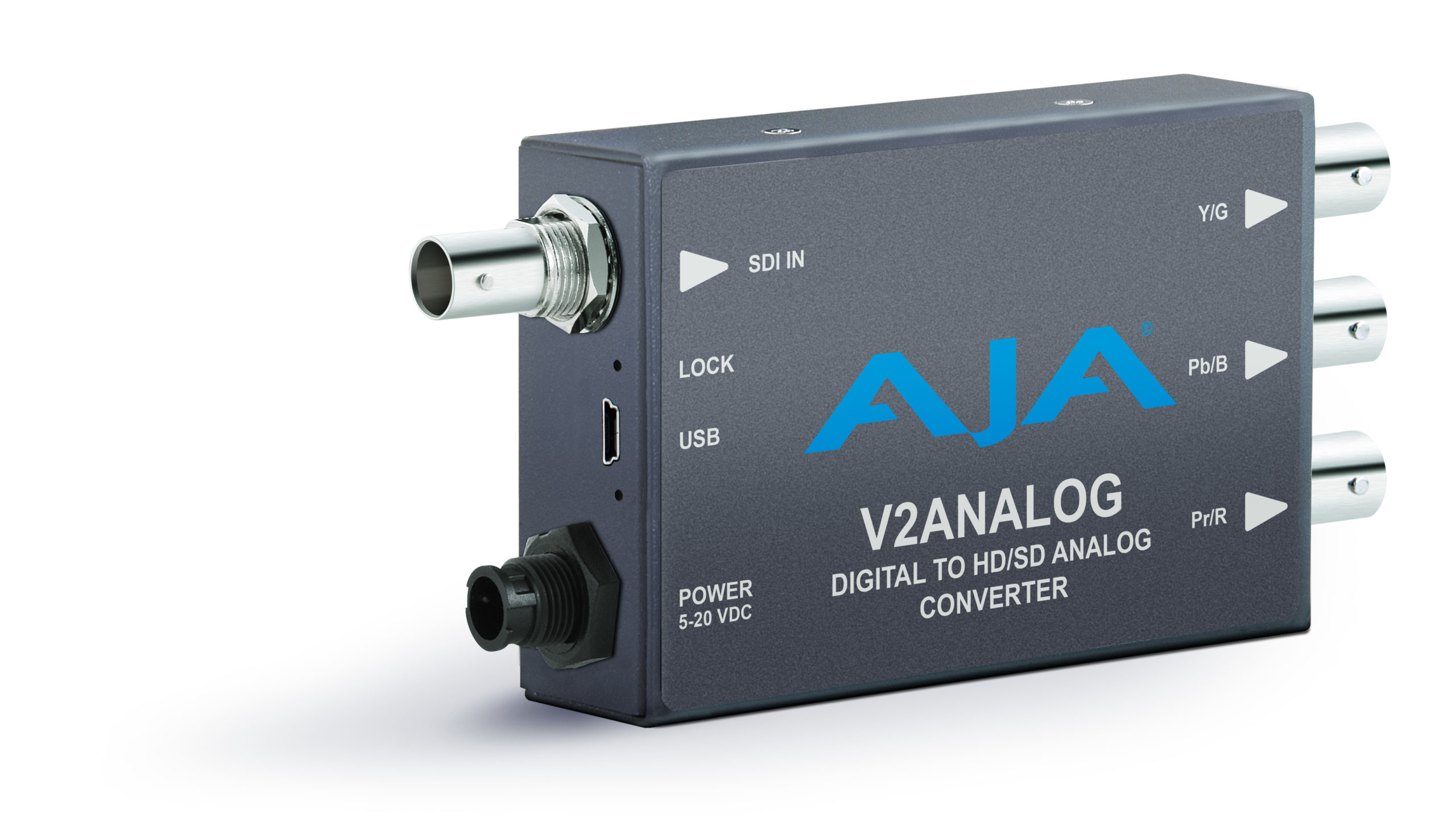

The AJA V2Analog is a high-quality, cost-effective HD/SD-SDI to analog (digital-to-analog) converter, ideal for integrating analog monitors and tape decks into digital workflows.
The AJA V2Analog performs high-quality SDI digital-to-analog conversion to component or composite analog video, letting you connect legacy analog equipment to modern SDI workflows in a compact Mini-Converter.
A universal power supply is included and the unit is backed by a five year warranty.
Video Formats
HD and SD-SDI to analog (component or composite)
Conversion
SDI digital-to-analog conversion; component or composite analog video output
Physical
Size (w x d x h): 5.1″ x 2.4″ x 1.0″ (129.54 x 60.96 x 25.4 mm)
Power
+5-20VDC, 3 watts, power supply required (included with purchase)
Environmental Specifications
Safe Operating Temperature: 0 to 40°C (32 to 104°F)
Safe Storage Temperature (Power OFF): -40 to 60°C (-40 to 140°F)
