3G-SDI to HDMI with Psf to P support and analog audio
The AJA Hi5-Plus is a 3G-SDI to HDMI Mini-Converter that brings 3G-SDI and HDMI devices together for monitoring and recording in the edit suite, on set or at live events.
The AJA Hi5-Plus converts 3G-SDI (with embedded audio) to HDMI 1.4, with up to 8 channels of HDMI embedded audio selectable via AJA MiniConfig, plus a 2-channel RCA analog audio output. Convenient USB setup makes remote configuration easy.
A universal power supply is included and the unit is backed by a five year warranty.
Video Formats
SD and HD, up to 1080p 60
Video Input Digital

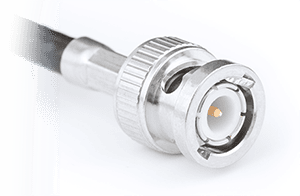

1 x 3G-SDI BNC with embedded audio, SMPTE-259/292/424
Video Output Digital (HDMI)

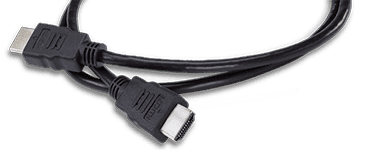

HDMI 1.4 with embedded audio up to 8 channels (selectable by Mini-Config)
8-bit RGB 4:4:4, 10-bit YCbCr 4:2:2, 12-bit
Audio
SDI embedded audio input, selectable from 16 channels
2-channel RCA analog audio output (-10 dBu nominal)
Physical
Size (w x d x h): 4.6″ x 2.4″ x 1.0″ (117 x 61 x 25 mm)
Weight: 0.3 lb (0.2 kg)
Power
Universal power supply included; 100-240VAC, 50/60 Hz universal input
Environmental Specifications
Safe Operating Temperature: 0 to 40°C (32 to 104°F)
Safe Storage Temperature (Power OFF): -40 to 60°C (-40 to 140°F)
