HD/SD Sync generator, Blackburst & Tri-Level sync

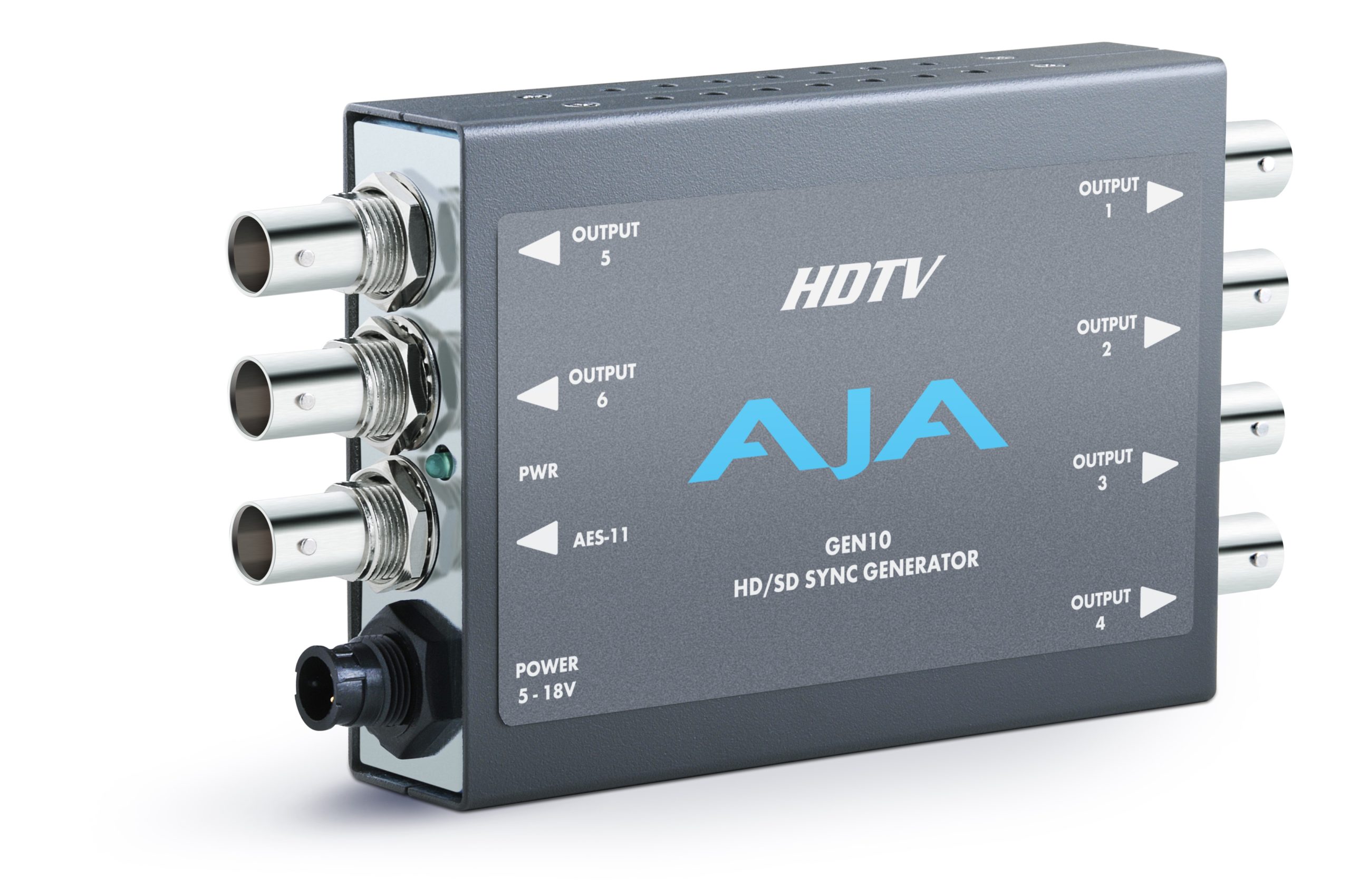

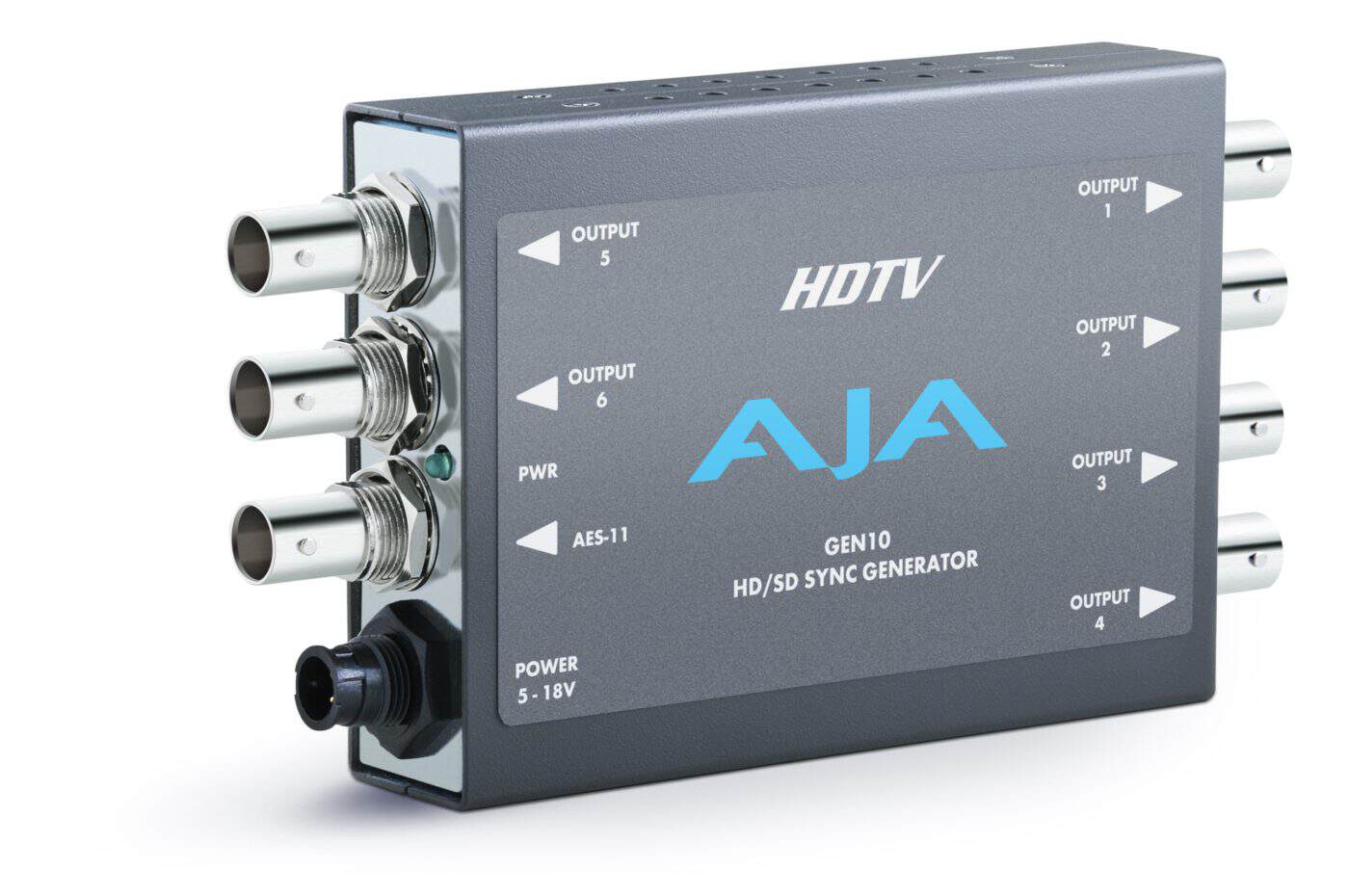

The AJA GEN10 is a cost-effective, flexible SD/HD/AES sync generator with seven outputs, including two independently controlled groups of SD/HD sync outputs and one AES-11 output.

449,00€ (ex. VAT)

SKU: GEN10 Categories: , , Brand:

The AJA GEN10 provides house reference and AES sync in a compact Mini-Converter. It offers seven outputs across two independently controlled SD/HD sync groups plus an AES-11 output; SD outputs can be switched between Color Black and Color Bars, and HD tri-level sync is supported.

A universal power supply is included and the unit is backed by a five year warranty.

Sync Generation

  • 7 outputs total: 2 independently controlled groups of SD/HD sync outputs and 1 AES-11 output
  • SD outputs switchable between Color Black or Color Bars; HD tri-level sync supported

Physical

  • Size (w x d x h): 5.8″ x 3.1″ x 1.0″ (147 x 79 x 25 mm)

Power

  • +5-18VDC, 2 watts, power supply required (included with purchase)

Environmental Specifications

  • Safe Operating Temperature: 0 to 40°C (32 to 104°F)
  • Safe Storage Temperature (Power OFF): -40 to 60°C (-40 to 140°F)
  • Operating Relative Humidity: 10-90% noncondensing
  • Operating Altitude: <3,000 meters (<10,000 feet)

Warranty

  • Five year warranty

Additional information

Brand

  • AJA GEN10
  • Universal power supply
