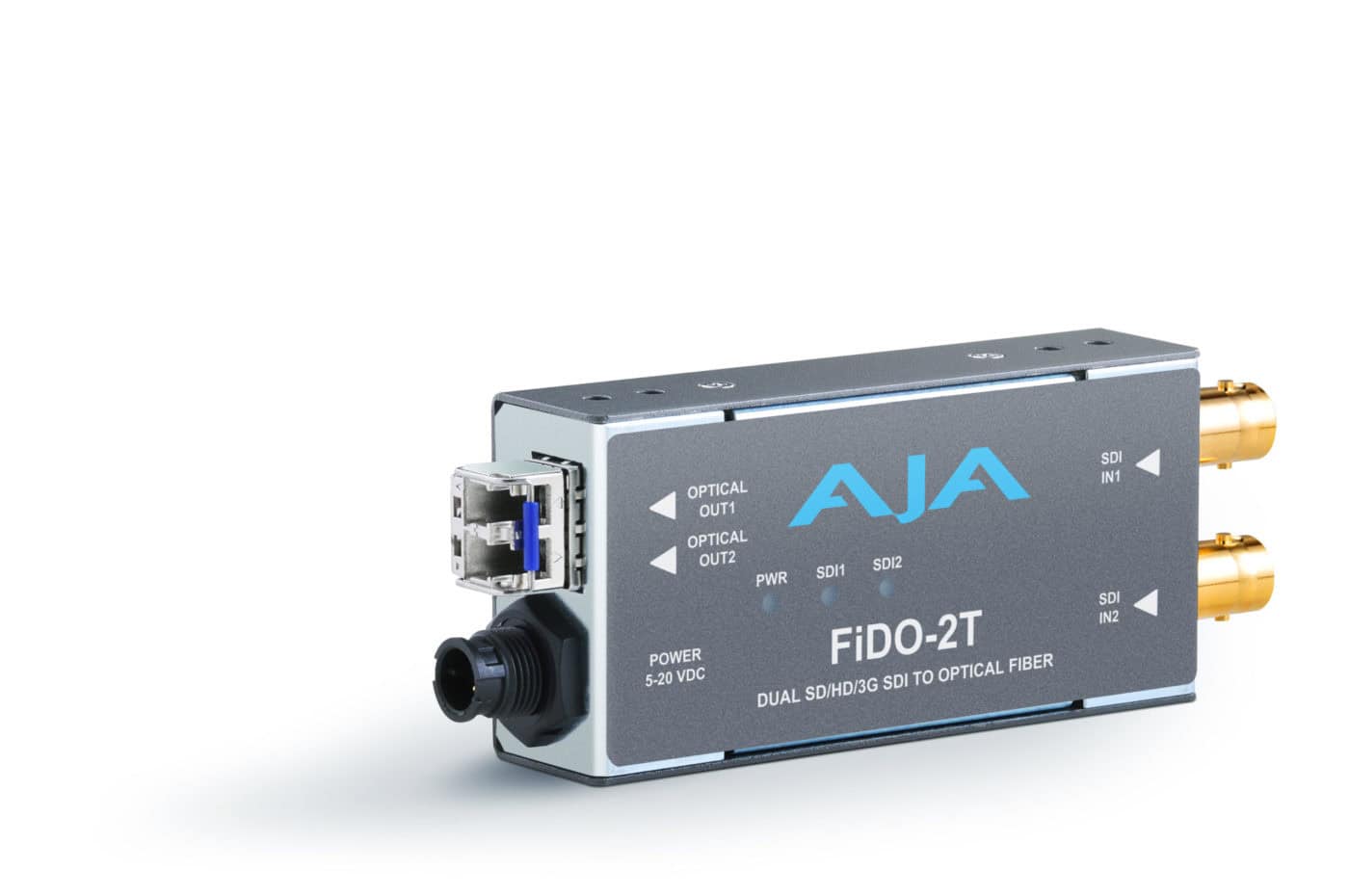

AXA FiDO-2T dual S/DI/DO to optical fiber converter for high-speed data transmission.
AJA

2-Channel 3G-SDI to Single Mode LC Fiber Transmitter

The AJA FiDO-2T is a 2-channel 3G-SDI to single-mode LC fiber transmitter that delivers flexible, cost-efficient SDI-to-fiber conversion, supporting cable runs up to 10 km (32,808 ft) over standard single-mode fiber optic cable.

826,00€ (ex. VAT)

SKU: FiDO-2T Categories: , , Brand:

The AJA FiDO-2T converts 2 independent 3G-SDI inputs to single-mode LC fiber. It also supports 3G/HD/SD-SDI, passes through SDI metadata including HDR, and uses a compact, low-profile enclosure that works well in tight spaces around and behind equipment racks, in trucks and on camera.

A universal power supply is included and the unit is backed by a five year warranty.

Video Formats

  • 150 Mbps – 3 Gbps, format agnostic

Video Input Digital

  • 2-channel independent 3G-SDI BNC Inputs, SMPTE-259/292/424

Video Output Digital

  • 2-channel independent Single Mode LC Fiber Outputs, SMPTE-297
  • Nominal Wavelength: 1310 nm
  • Optical Power: -5 dBm (Min), 0 dBm (Max)
  • Extinction Ratio: 7.5 dB (Typ)

Reclocking

  • 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps – Auto Select
  • All other rates are passed through and not reclocked

Physical

  • Size (w x d x h): 4.6″ x 1.71″ x 0.85″ (117.0 x 43.5 x 21.6mm)
  • Weight: 0.5 lb (0.3 kg)

Power

  • 2 watts, max
  • Uses 5-20VDC power, universal power supply included

Environmental Specifications

  • Safe Operating Temperature: 0 to 40°C (32 to 104°F)
  • Safe Storage Temperature (Power OFF): -40 to 60°C (-40 to 140°F)
  • Operating Relative Humidity: 10-90% noncondensing
  • Operating Altitude: <3,000 meters (<10,000 feet)

Warranty

  • Five year warranty

Additional information

Brand

  • AJA FiDO-2T
  • Universal power supply
