Input and Output

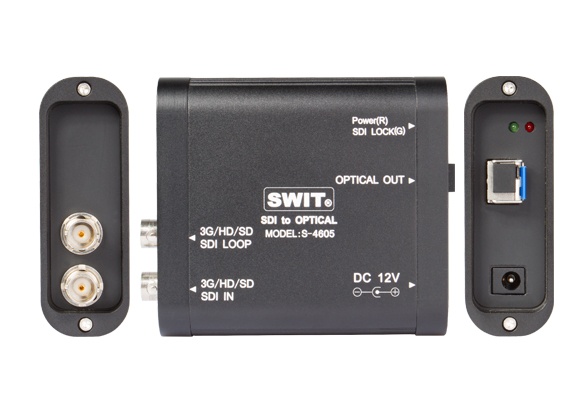

S-4605 offers:
- 1x 3G/HD/SD-SDI input
- 1x 3G/HD/SD-SDI loop output (Reclocked)
- 1x LC Optical Fiber output
Encoder and Decoder
The S-4605 convert SDI to Optical fiber at encoder end, and you can use SWIT S-4606 to convert Optical fiber back to SDI at the decoder end. The reliable transmission distance is up to 20km.
Status Indicators

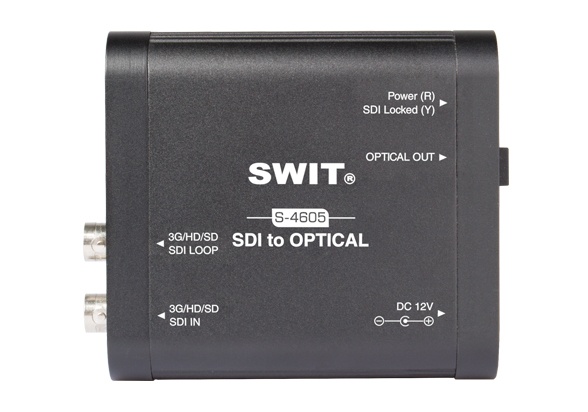

S-4605 provides 2 LED indicators, to check if the power is connected, and if the input SDI is recognized.
Power Supply
The mini converter is powered by pole-tap DC socket. The package includes an AC-DC power adapter,and you can also connect DC cable from 6-18V batteries.
Heavy Duty Housing

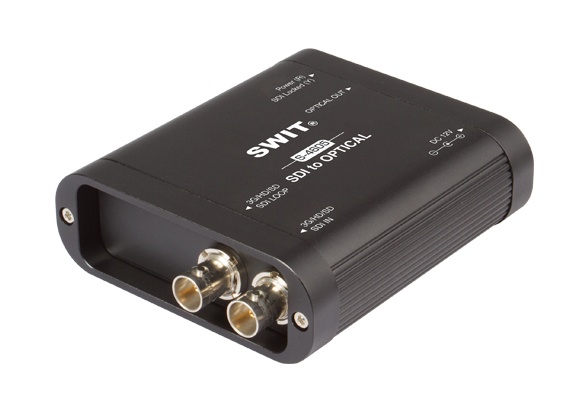

The S-4605 mini converter adopts unibody aluminium alloy housing, strong for field using and protects the BNC connectors effectively.
Installation

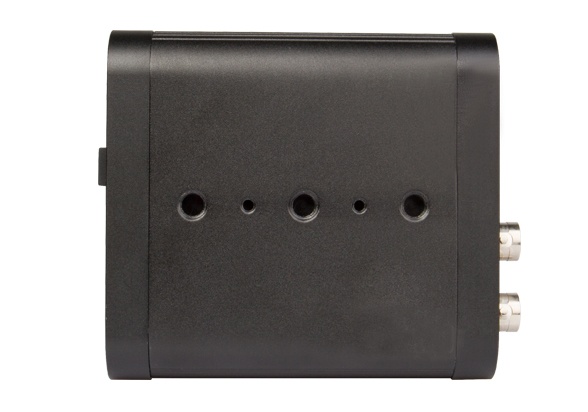

S-4605 provides the bottom 1/4-inch screw threads for fixing on cameras, and an installing plate A-IP00 is supplied in the package, for fixing on wall and binding the BNC cables and optical fibers.
