1-Channel 3G-SDI/LC Single Mode Fiber Transceiver
AJA

1-Channel 3G-SDI/LC Single Mode Fiber Transceiver

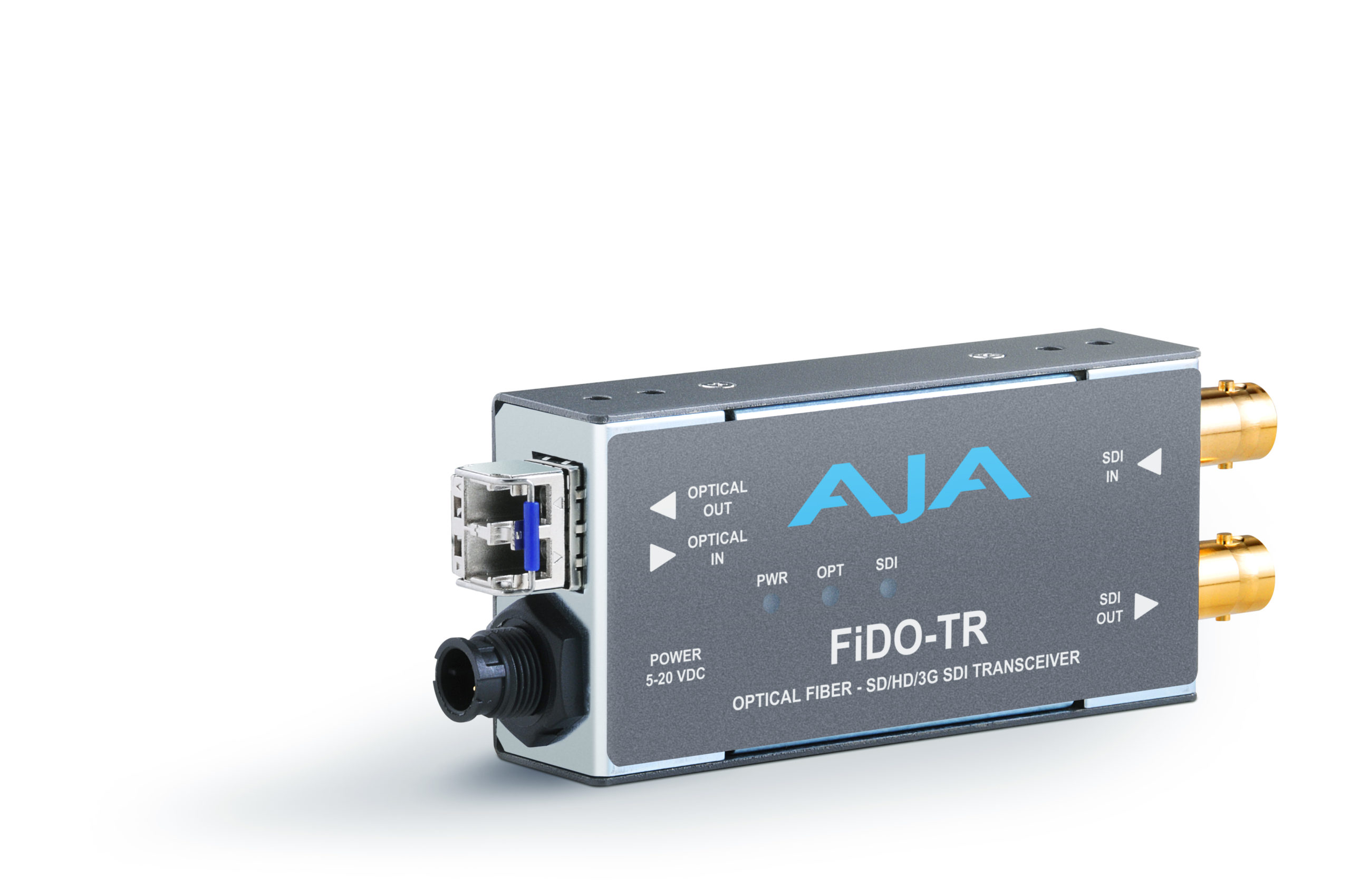

The AJA FiDO-TR is a 1-channel 3G-SDI / single-mode LC fiber transceiver that delivers flexible, cost-efficient SDI-to-fiber conversion, supporting cable runs up to 10 km (32,808 ft) over standard single-mode fiber optic cable.

826,00€ (ex. VAT)

SKU: FiDO-TR Categories: , , Brand:

The AJA FiDO-TR provides bidirectional conversion with independent 3G-SDI input and output on both BNC and single-mode LC fiber. It also supports 3G/HD/SD-SDI, passes through SDI metadata including HDR, and uses a compact, low-profile enclosure that works well in tight spaces around and behind equipment racks, in trucks and on camera.

A universal power supply is included and the unit is backed by a five year warranty.

Video Formats

  • 150 Mbps – 3 Gbps, format agnostic

Video Input Digital

  • 1-channel independent 3G-SDI BNC Input, SMPTE-259/292/424
  • 1-channel Single Mode LC Fiber Input, SMPTE-297
  • Nominal Wavelength: 1260 – 1620 nm
  • Optical Sensitivity: -18 dBm (Max)
  • Overload Power: -3 dBm (Min)

Video Output Digital

  • 1-channel independent 3G-SDI BNC Output, SMPTE-259/292/424
  • 1-channel Single Mode LC Fiber Output, SMPTE-297
  • Nominal Wavelength: 1310 nm
  • Optical Power: -5 dBm (Min), 0 dBm (Max)
  • Extinction Ratio: 7.5 dB (Typ)

Reclocking

  • 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps – Auto Select
  • All other rates are passed through and not reclocked

Physical

  • Size (w x d x h): 4.6″ x 1.71″ x 0.85″ (117.0 x 43.5 x 21.6mm)
  • Weight: 0.4 lb (0.2 kg)

Power

  • 2 watts, max
  • Uses 5-20VDC power, universal power supply included

Environmental Specifications

  • Safe Operating Temperature: 0 to 40°C (32 to 104°F)
  • Safe Storage Temperature (Power OFF): -40 to 60°C (-40 to 140°F)
  • Operating Relative Humidity: 10-90% noncondensing
  • Operating Altitude: <3,000 meters (<10,000 feet)

Warranty

  • Five year warranty

Additional information

Brand

  • AJA FiDO-TR
  • Universal power supply
