FS4 is a 4-Channel 2K/HD/SD or 1-Channel 4K/UltraHD frame synchronizer and up, down, cross-converter. AJA’s flagship frame synchronizer and converter offers incredible versatility and connectivity in a sleek 1RU frame for all your 4K/UltraHD and 2K/HD/SD conversion needs, with a wealth of digital and optional 12G-SDI Fiber LC and 12G-SDI BNC SFP connectivity. Offering a wide range of connection options for both video and audio, FS4 can do the work of four separate devices in 2K/HD/SD or combine all processors and channels together for maximum flexibility for 4K/UltraHD productivity.
Single or Four Channel Modes in a 1RU frame
FS4 offers two modes for comprehensive conversion and signal processing.
Single channel mode provides a full suite of 4K/UltraHD processing and up, down, cross-conversion to and from 2K, HD or SD.
Four channel mode offers 4x 2K/ HD/SD channels of simultaneous conversion and processing, all within an elegant 1RU chassis for multi-channel high density delivery.

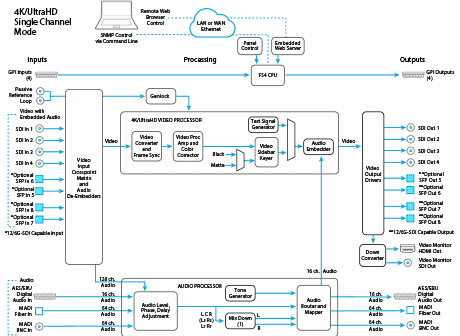

Single Channel Mode
Bulletproof reliability. Incredible conversion power.
FS4 is your real world answer for conversions of to and from multiple resolutions, built to AJA’s high quality and reliability standards.
4K/UltraHD delivery, processing and synchronization is fast becoming the next standard, and FS4 gets you there with a wealth of digital video connectivity including Quad 1.5G, Dual 3G, Quad 3G over 3G-SDI and 12G/6G over optional 12G-SDI BNC and 12G-SDI LC Fiber SFP modules.
In single channel mode, FS4 will upscale your HD or SD materials to 4K/UltraHD and back, with a huge array of audio channels over Fiber, 3G-SDI, AES, and MADI for an incredible 272 x 208 matrix of audio possibilities.
Four Channel Mode
Welcome to Four Channel Mode.

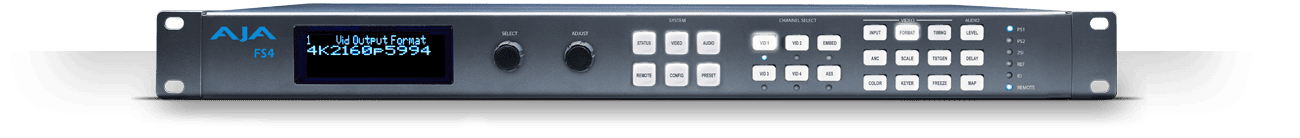

In four channel mode, FS4 provides incredibly powerful multi-channel conversion with up to four channels of simultaneous processing for 2K/HD and SD signals. New thinking requires a new layout, and FS4’s front panel has been redesigned to simplify and speed your access to the product’s wealth of features.
The panel has also been designed to provide straightforward operation in single channel or four channel mode. In four channel mode, all four VIDx buttons under Channel Select are lit up. In single channel mode, only VID1 is lit and VID2-4 are off.
Multi-channel density in a 1RU chassis – space, energy and power preserved.
New Thinking, New Interface
New thinking requires a new layout and FS4’s front panel has been redesigned to simplify and speed your access to the product’s wealth of features. The panel has also been designed to provide straightforward operation in single channel or four channel mode. In four channel mode, all four VIDx buttons under Channel Select are lit up. In single channel mode, only VID1 is lit and VID2-4 are off.
Up, Down, Cross-Conversion
Moving to 4K is never an instant change. Legacy signals and archival material need to be integrated into the 4K environment while 4K sources need to be down-converted for current 2K/HD pipelines.
Utilizing AJA’s remarkable conversion algorithms, FS4 supports realtime up, down, cross-conversion from SD, HD or 2K over 12G/6G/3G-SDI video to 4K or UltraHD video and back. Both Quadrant (Square Division) and 2SI (Two Sample Interleave) output formats are supported.
AJA’s powerful hardware conversion technology ensures the highest image quality for your productions. Key conversion features include:
- 4K/UltraHD/2K/HD/SD up, down-conversion
- SD/SD aspect ratio conversion
- HD/HD cross-conversion (720p/1080i)
All done in beautiful 10-bit with dedicated hardware.
Incredible Digital Connectivity
Video and Audio deserve the connectivity and bandwidth required to meet the demands of your projects.

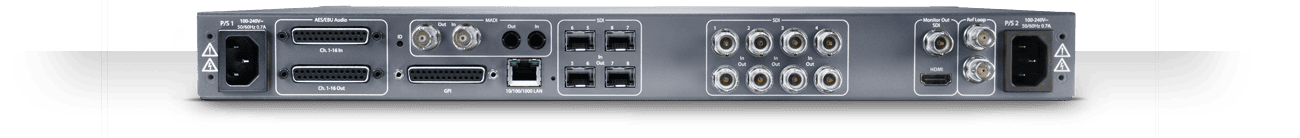

FS4 utilizes standard BNC as well as optional SFP inputs and outputs to integrate easily into a variety of workflows and facilities with support for SDI worklows all the way up to 12G.
FS4 has BNC and Fiber* inputs and outputs to accept 4K/UltraHD/2K/HD/SD resolution SDI signals in Single Channel Mode. In Four Channel mode 2K/HD/SD inputs can be be routed to multiple locations simultaneously without the need for any external signal distribution.
A looping Reference Input allows the FS4 to be locked to your house reference signal for rock solid stability.
Digital Audio can be disembedded and embedded between SDI, MADI and AES for an incredible array of routing possibilities.
* SFP inputs and outputs are optional.
12G/6G HD-BNC and Fiber SFP Options
FS4’s SFP options include both 12G/6G-SDI HD-BNC and Fiber I/O options including single and dual channel Single Mode options and Multi-Mode options, allowing great SDI flexibility and fiber cable runs of up to 10 kilometers to be connected directly to the FS4 without the need for separate fiber to SDI conversion.
Optional 12G/6G-SDI SFPs:
- HDBNC-2TX-12G: 12G/6G-SDI Dual Coax HD-BNC Transmitter
- HDBNC-2RX-12G: 12G/6G-SDI Dual Coax HD-BNC Receiver
- FIBERLC-1TX-12G: 12G-SDI Single Fiber LC Transmitter Single-Mode
- FIBERLC-1RX-12G: 12G-SDI Single Fiber LC Receiver Single-Mode
- FIBERLC-2TX-12G: 12G/6G-SDI Dual Fiber LC Transmitter Single-Mode
- FIBERLC-2RX-12G: 12G/6G-SDI Dual Fiber LC Receiver Single-Mode
Optional 3G-SDI Multi-Mode SFPs:
- FIBERLC-1TX-MM: Single Fiber LC Transmitter Multi-Mode 850nm
- FIBERLC-1RX-MM: Single Fiber LC Receiver Multi-Mode 850nm
- FIBERLC-2TX-MM: Dual Fiber LC Transmitter Multi-Mode 850nm
- FIBERLC-2RX-MM: Dual Fiber LC Receiver Multi-Mode 850nm
Single and Dual Channel Fiber connectors supported:
Single Channel LC connector modules
Single Channel SC connector modules
Dual Channel LC connector modules
Possible CWDM options:
Choose from multiple wavelength CWDM SFPs, allowing advanced multiplexing of signals over a single fiber connection.
- Dual TX 1271/1291
- Dual TX 1311/1331
- Dual TX 1351/1371
- Dual TX 1391/1411
- Dual TX 1431/1451
- Dual TX 1471/1491
- Dual TX 1511/1531
- Dual TX 1551/1571
- Dual TX 1591/1611
Massive Audio Flexibility
The growth of 5.1 and 7.1 audio has increased the number of audio channels that must be managed in a production, The MADI standard provides a convenient way to transport huge numbers of audio channels along a single cable, simplifying the cabling demands for broadcasters, mobile trucks and production. FS4 supports both fiber and coax MADI input and output. An internal 277 x 208 mono audio matrix allows you to route 1 to 1 or 1 to many with full routing of MADI, mixdowns and all audio coming from SDI, fiber and AES sources for an incredible amount of audio processing capability in a single box.
Closed Captioning Conversion
FS4 supports closed captioning and the conversion of closed captioning between 2K/HD/SD and 4K/UltraHD formats – including full conversion of CEA-608 and CEA-708 standards. FS4 can preserve closed captioning even when converting between formats, removing the need to reinsert closed captions after conversion.
Active Format Description
Automatically sets Active Format Description information to match the converted signal. This means AFD information does not have to be inserted after conversion and provides accurate information for devices that understand AFD.
Remote Configuration and Control
FS4 is network ready and supports SNMP monitoring and web-based remote control. Units can be connected to any Ethernet network via the built-in 10/100/1000MB Ethernet port, allowing control and configuration of multiple FS units from any web browser on a connected computer. Configurations can be saved and applied to multiple units, ensuring consistency and quick configuration in large installs.
To integrate smoothly with the existing automation of a facility, FS4 can also receive external GPI commands to trigger a variety of functions.
