The AJA FS1-X is the next evolution of AJA’s FS1 frame synchronizer/converter, adding 1080p support while retaining analog connectivity. In a 1RU chassis it provides two standard SDI inputs and outputs plus fiber options, with frame synchronization and format conversion across a wide range of formats.
AJA
1RU Frame Sync/Convertor with MADI audio
The AJA FS1-X is a universal frame synchronizer and converter in a compact 1RU chassis, supporting SD, HD and 1080p while maintaining analog support.
4.293,00€ (ex. VAT)
Video Formats
- SD, HD and 1080p; frame sync and format conversion; analog support
Video Input / Output

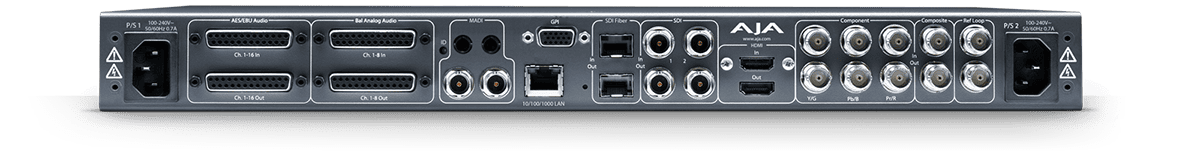

- 2 x SDI inputs and 2 x SDI outputs (with fiber options)
- Analog video I/O supported
Physical
- Size (w x d x h): 19.0″ x 16.0″ x 1.75″ (1RU) (482.6 x 406.4 x 44.45 mm)
- Weight: 7.9 lb (3.6 kg)
Power
- 100-240 VAC, 50/60 Hz; dual redundant power supplies
Environmental Specifications
- Safe Operating Temperature: 0 to 40°C (32 to 104°F)
- Safe Storage Temperature (Power OFF): -40 to 60°C (-40 to 140°F)
- Operating Relative Humidity: 10-90% noncondensing
- Operating Altitude: <3,000 meters (<10,000 feet)
Additional information
| Brand |
|---|
- AJA FS1-X
- Rack-mount chassis with dual redundant power supplies
- Power cords
