The AJA FS2 provides two-channel HD/SD frame synchronization and format conversion in a 1RU chassis, with two 3G-SDI inputs and two fiber 3G-SDI options. It can operate as two independent converters or combine both processors for more complex conversion tasks.
AJA
1RU Dual Channel 3G-SDI HD/SD Frame Sync/Convertor

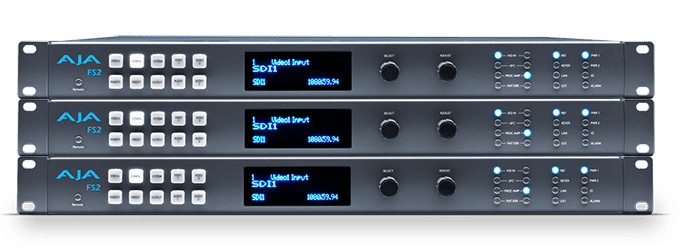

The AJA FS2 is a dual-channel HD/SD frame synchronizer and format converter in a slim 1RU frame, working as two independent devices or combining both processors for maximum flexibility.
4.817,00€ (ex. VAT)
Video Formats
- 2-channel HD/SD frame synchronization and format conversion
Video Input Digital

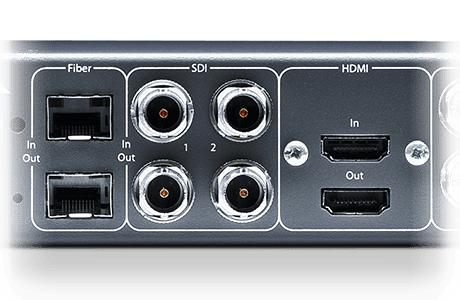

- 2 x 3G-SDI inputs; 2 x fiber 3G-SDI inputs
Function
- Operates as two independent processors or combined for maximum flexibility
Physical
- Size (w x d x h): 17.25″ x 14.5″ x 1.75″ (1RU) (438.15 x 368.3 x 44.45 mm)
- Weight: 7.9 lb (3.6 kg)
Power
- 100-240 VAC, 50/60 Hz; dual redundant power supplies
Environmental Specifications
- Safe Operating Temperature: 0 to 40°C (32 to 104°F)
- Safe Storage Temperature (Power OFF): -40 to 60°C (-40 to 140°F)
- Operating Relative Humidity: 10-90% noncondensing
- Operating Altitude: <3,000 meters (<10,000 feet)
Additional information
| Brand |
|---|
- AJA FS2
- Rack-mount chassis with dual redundant power supplies
- Power cords
