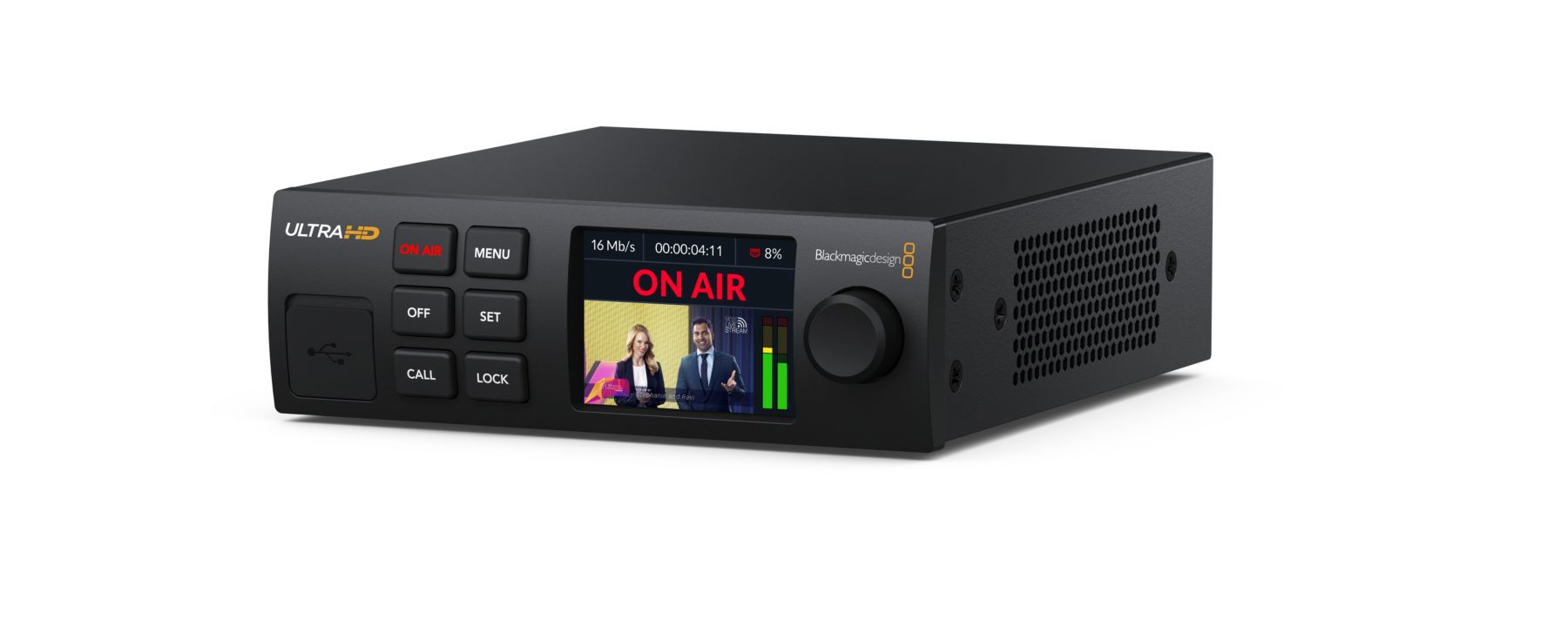

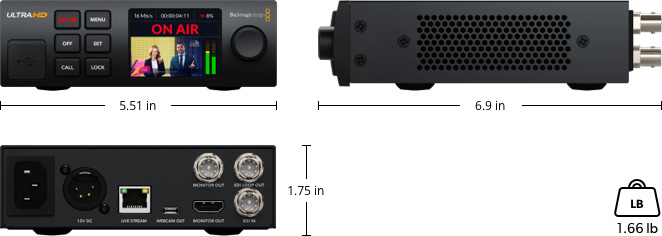

Streaming Encoder 4K

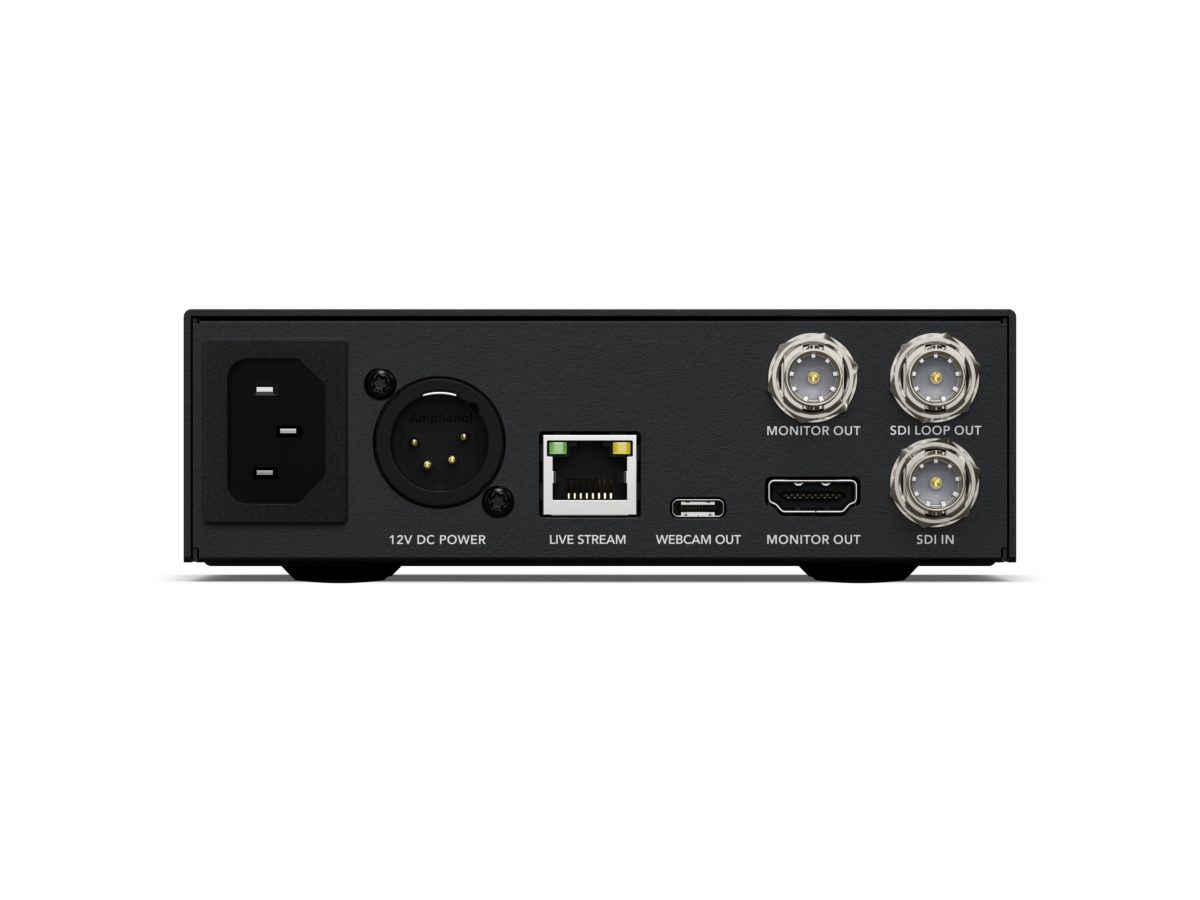

SDI Video Inputs

1

SDI Loop Outputs

1

SDI Monitor Outputs

1

SDI Rates

1.5G, 3G, 6G, 12G

HDMI Monitor Outputs

1

SDI Audio Inputs

16 channels embedded audio.

SDI Audio Outputs

16 channels embedded audio on Loop Out.

HDMI Audio Outputs

2 channels embedded audio on Monitor Out.

Webcam Output

1 x USB-C up to 2160p60

Ethernet

Ethernet supports 10/100/1000 BASE-T for live streaming, configuration and software updates.

HD Video Input Standards

720p50, 720p59.94, 720p60,
1080i50, 1080i59.94, 1080i60,
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60,
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30

2K Video Standards

2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI,
2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI

Ultra HD Video Input Standards

2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60

4K Video Standards

4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI

SDI Compliance

SMPTE 259M, SMPTE 274M, SMPTE 292M, SMPTE 296M SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B

Video Input Color Space

Rec. 709, Rec. 2020

3G SDI

Auto detects SMPTE level A or B on SDI input.

SDI and HDMI Monitor Out Video Standards

1080p50, 1080p59.94, 1080p60

Video Streaming Standards

720p25, 720p30, 720p50, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60

Direct Streaming

Blackmagic Streaming Encoder 4K supports direct live streaming over ethernet using Real Time Messaging Protocol (RTMP) in H.264, and Secure Reliable Transport (SRT) in H.264 and H.265.

Closed Captions

Blackmagic Streaming Encoder 4K supports embedding CEA‑608 and CEA‑708 closed captions in your live RTMP stream.

Timecode

Support source timecode over RTMP and SRT streams.

Control Panel

Built in control panel including 6 buttons, spin knob control and 2.2 inch color display.

Device Control

Front panel, USB‑C or Ethernet.

External Control

Supports remote camera control, color corrector, tally and talkback.

REST API over Ethernet for external control via HTTP when used with REST client applications.

Compatible Services and Software

Facebook, Twitch, YouTube, Twitter, Restream.IO, Vimeo, BoxCast, Castr, AfreecaTV, Bilibili, DouYu, Weibo, Zoom, Skype, Microsoft Teams, QuickTime Player, FaceTime, OBS Studio, Open Broadcaster, VLC, Wirecast Play, Wowza Streaming Engine.

Power Supply

1 x Internal 100 – 240V AC.

12V DC Input

1 x 4-pin XLR for +12V DC input for external power supply or battery use.

Power Usage

25 W

Operating Temperature

0° C to 40° C (32° – 104°F)

Storage Temperature

-20° to 45° C (-4° to 113° F)

Relative Humidity

0% to 90% non-condensing
