Autocue

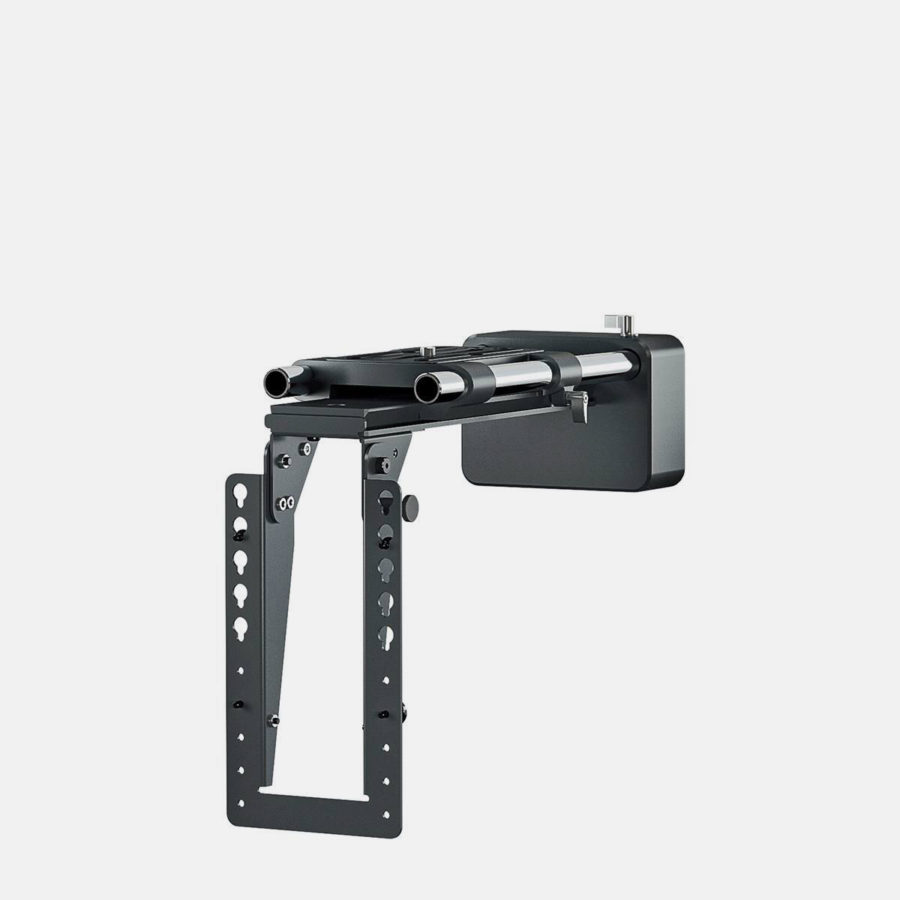

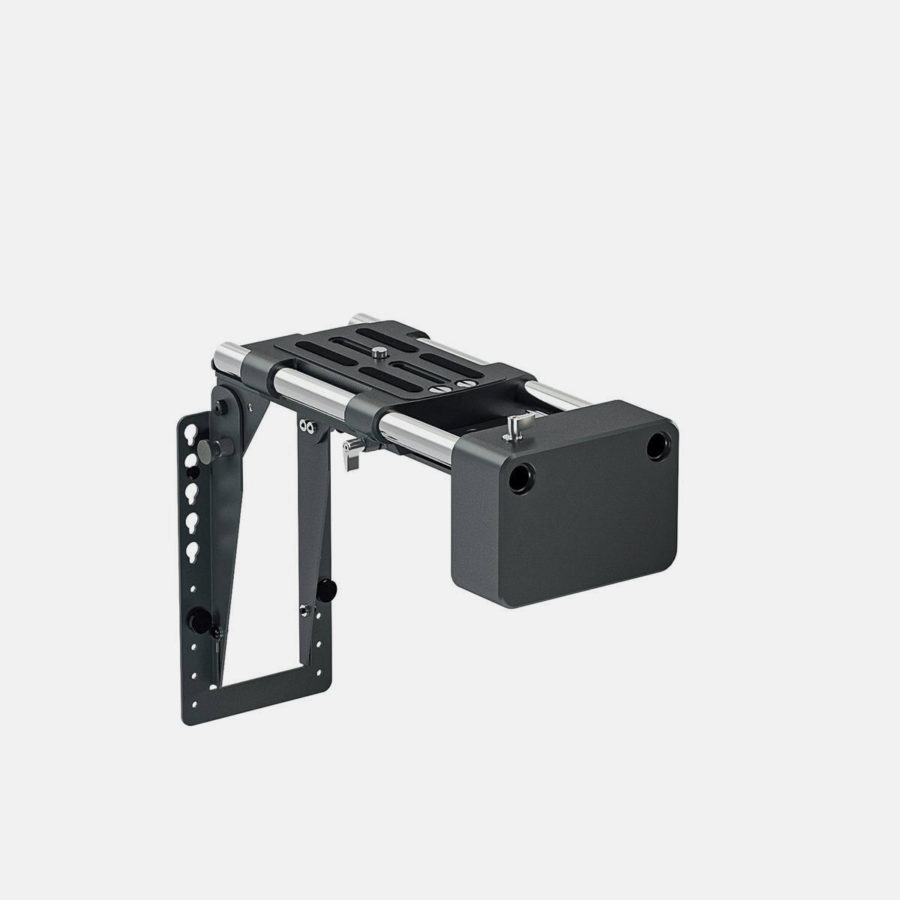

Pioneer Direct View Mounting

  • Mounting kit for Autocue monitors
  • Positions the monitor underneath the lens

1.213,00 (ex. VAT)

SKU: P7011-0903 Categories: , ,

The Pioneer Direct View Mounting kit can be used to display a monitor directly to the presenter, without a through-the-lens hood and beamsplitter. It positions the monitor underneath the camera and lens where it can be viewed discreetly with only a small change in the presenter’s eyeline.

The kit can be combined with any Autocue monitor to create a direct view prompter or talent reference monitor.

Counterweight 5 kg
Counterweight Mounting Rods 2x 19mm dia.
Max Monitor Size 24″ 16:9 widescreen
Max Monitor Weight 5 kg
Monitor Fixing VESA100
Monitor Fixing Positions 5 (20mm pitch)
Mounting Dimensions 12 cm x 25.3 cm x 35.4 cm
Mounting Weight 6100 (excluding counterweight)
Rail Fixings 3/8″-16, with optional 1/4″-20 inserts
Tilt Positions 2 (plus stowed)

Additional information

Brand

Reviews

There are no reviews yet.

Be the first to review “Pioneer Direct View Mounting”

Your email address will not be published. Required fields are marked *

  • Mounting rail
  • Camera carriage
  • Monitor bracket
  • 19mm rod set
  • 5kg counterweight
