SmallHD

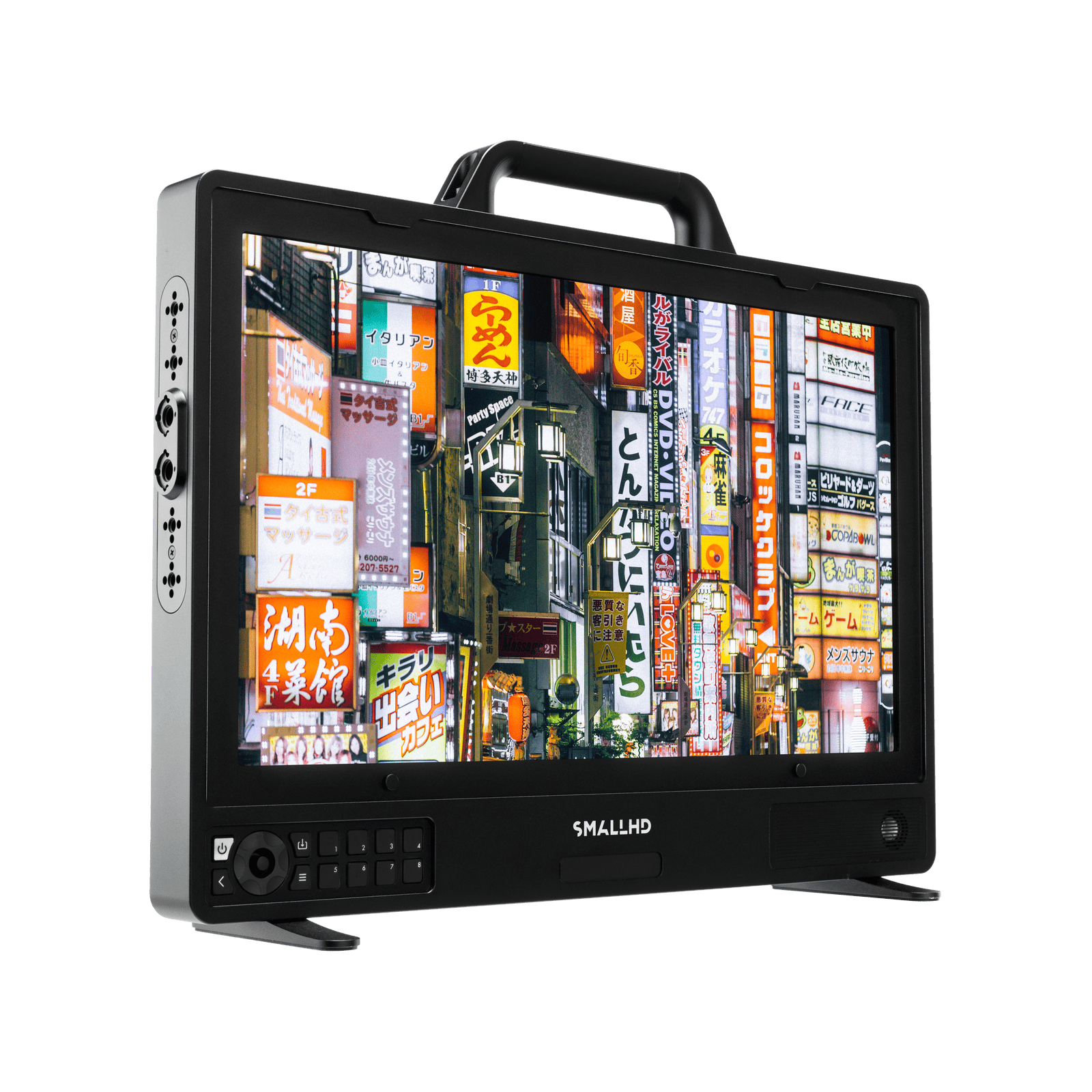

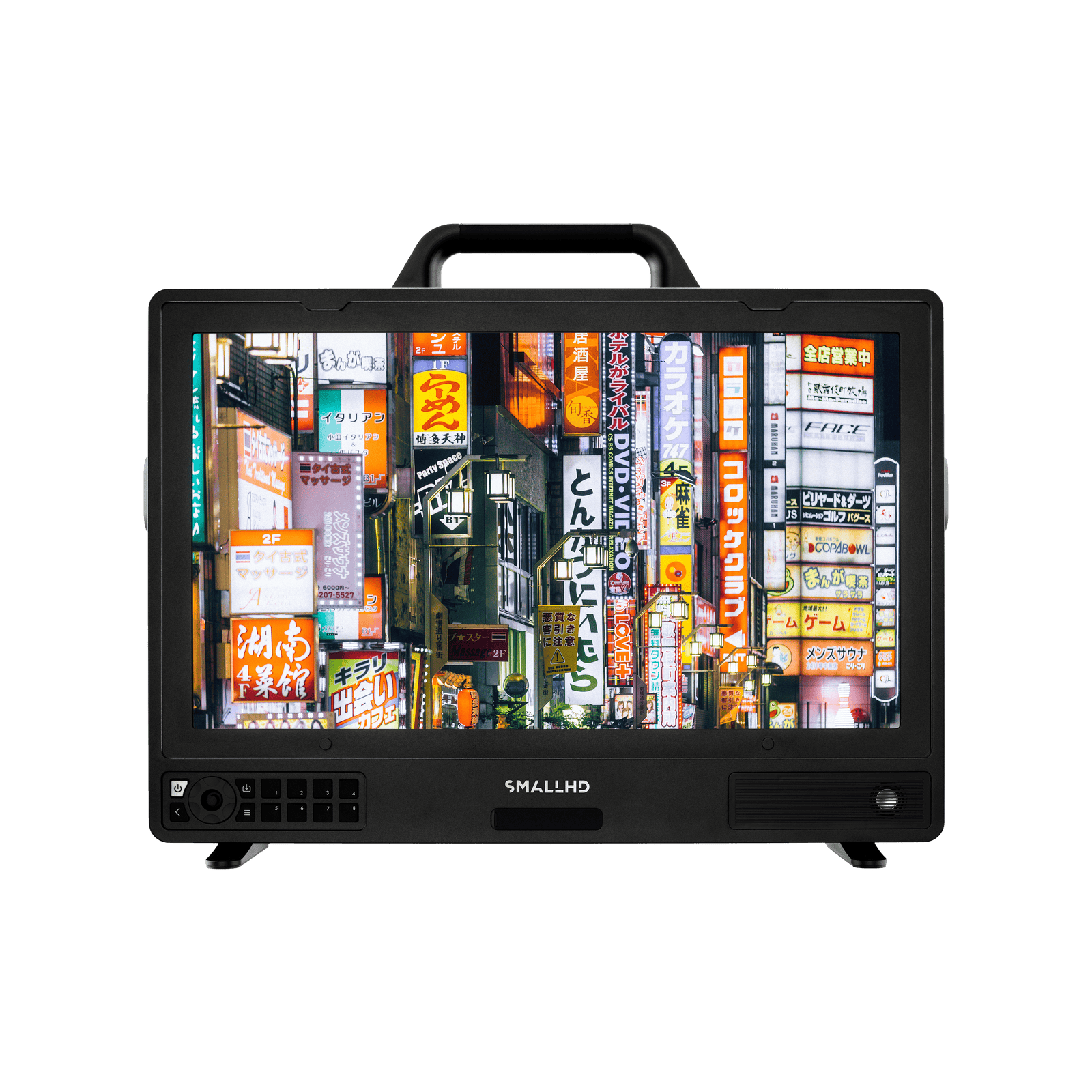

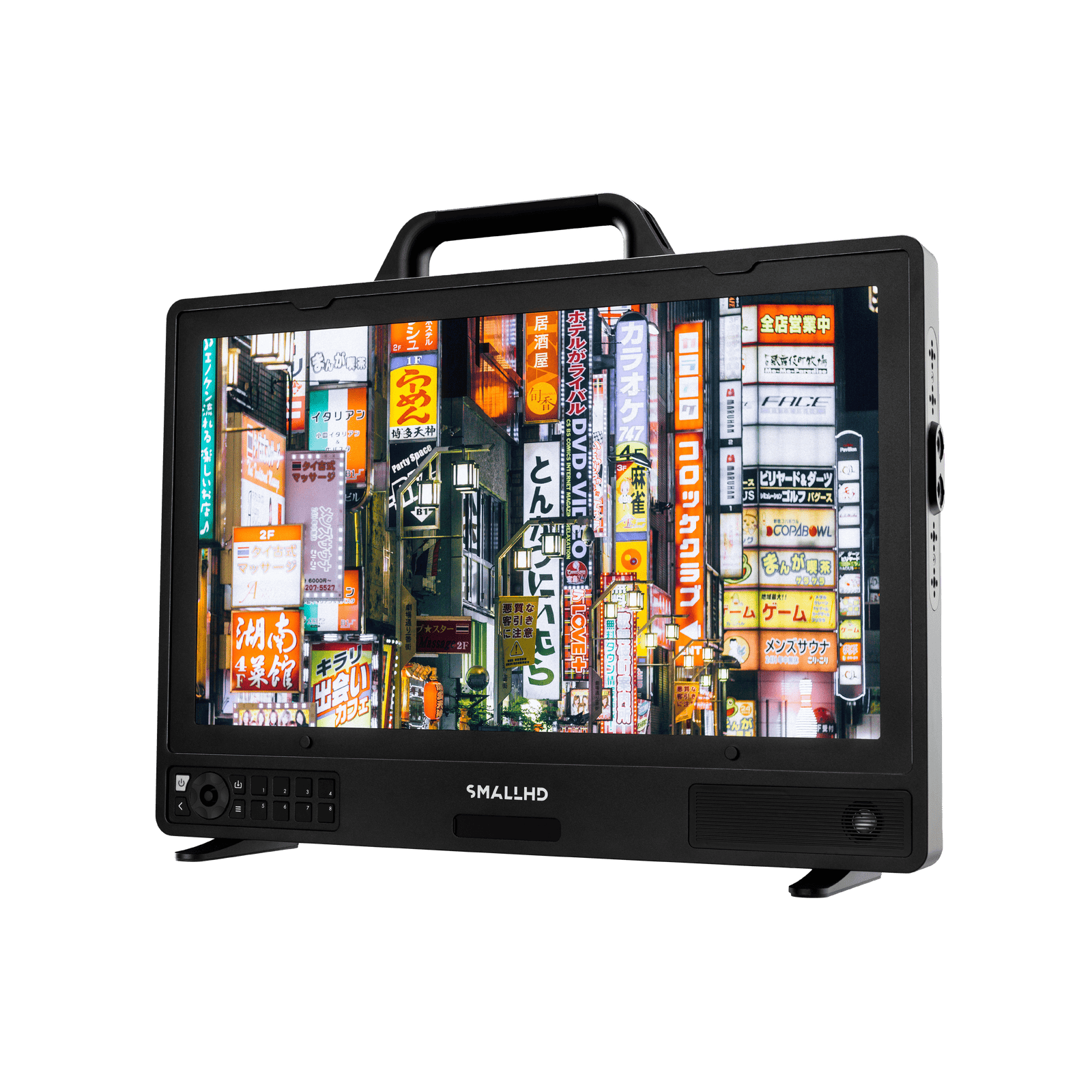

Cine 18″ 4K Reference Monitor

The Cine 18 offers a perfect blend of screen size, brightness, color accuracy, and portability, making it one of the most flexible high-bright 4K monitors for any production scenario.

6.099,26€ (ex. VAT)

SKU: 16-1801 Categories: , , Brand:

The Cine 18 offers a perfect blend of screen size, brightness, color accuracy, and portability, making it one of the most flexible high-bright 4K monitors for any production scenario. It’s large enough for Video Village, bright enough for daylight viewing, and built around an ultra-lightweight aluminum unibody chassis developed through years of real-world, on-set testing. This monitor is ideal for Video Village, ACs, DPs, DITs, or as a director’s monitor.

The Cine 18 4K High-Bright monitor delivers 1100 nits of brightness for easy outdoor viewing, exceptional image quality, and up to 4K resolution on its 18-inch screen. A 10-bit color depth and 100% REC.709 color gamut ensure accurate color reproduction across your production workflow.

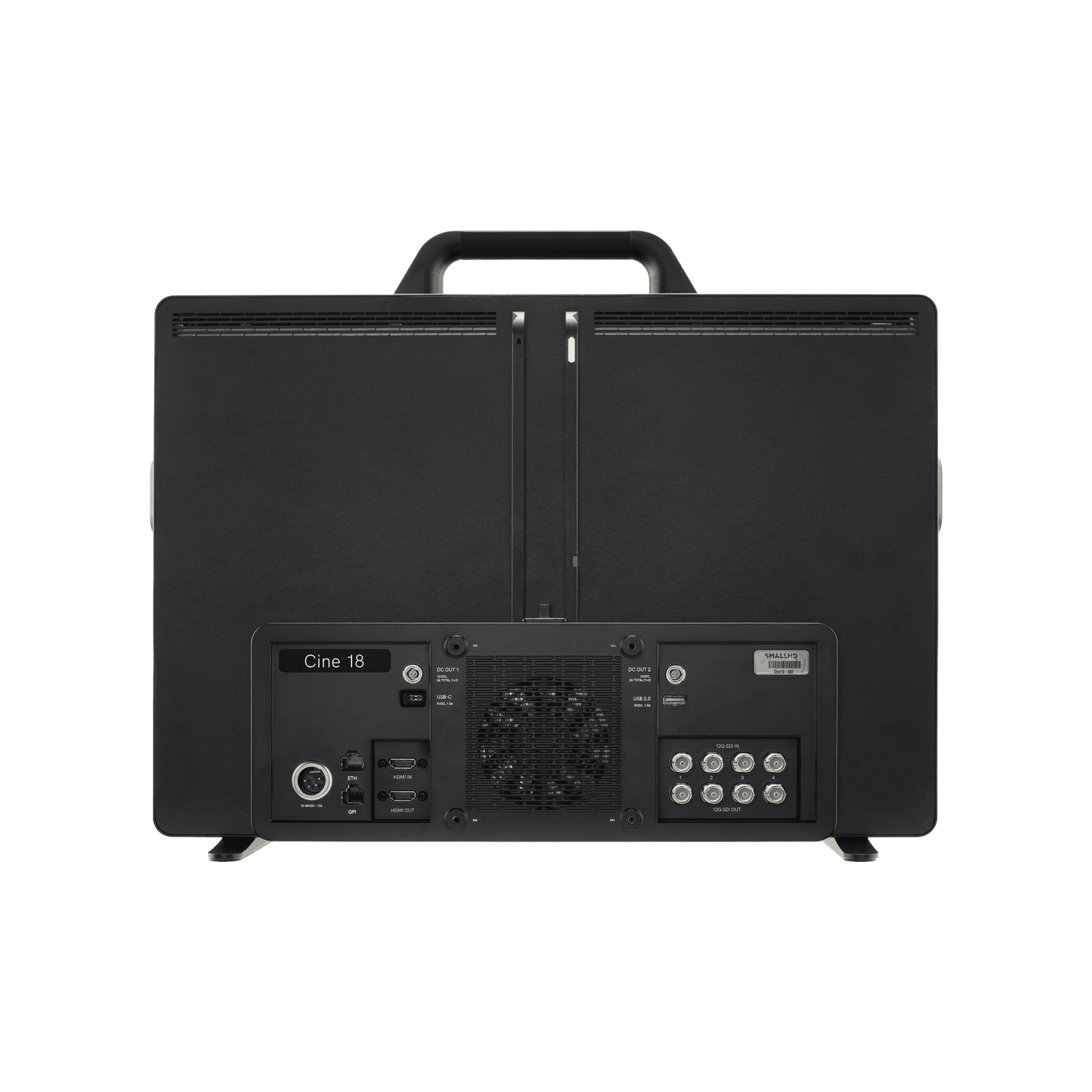

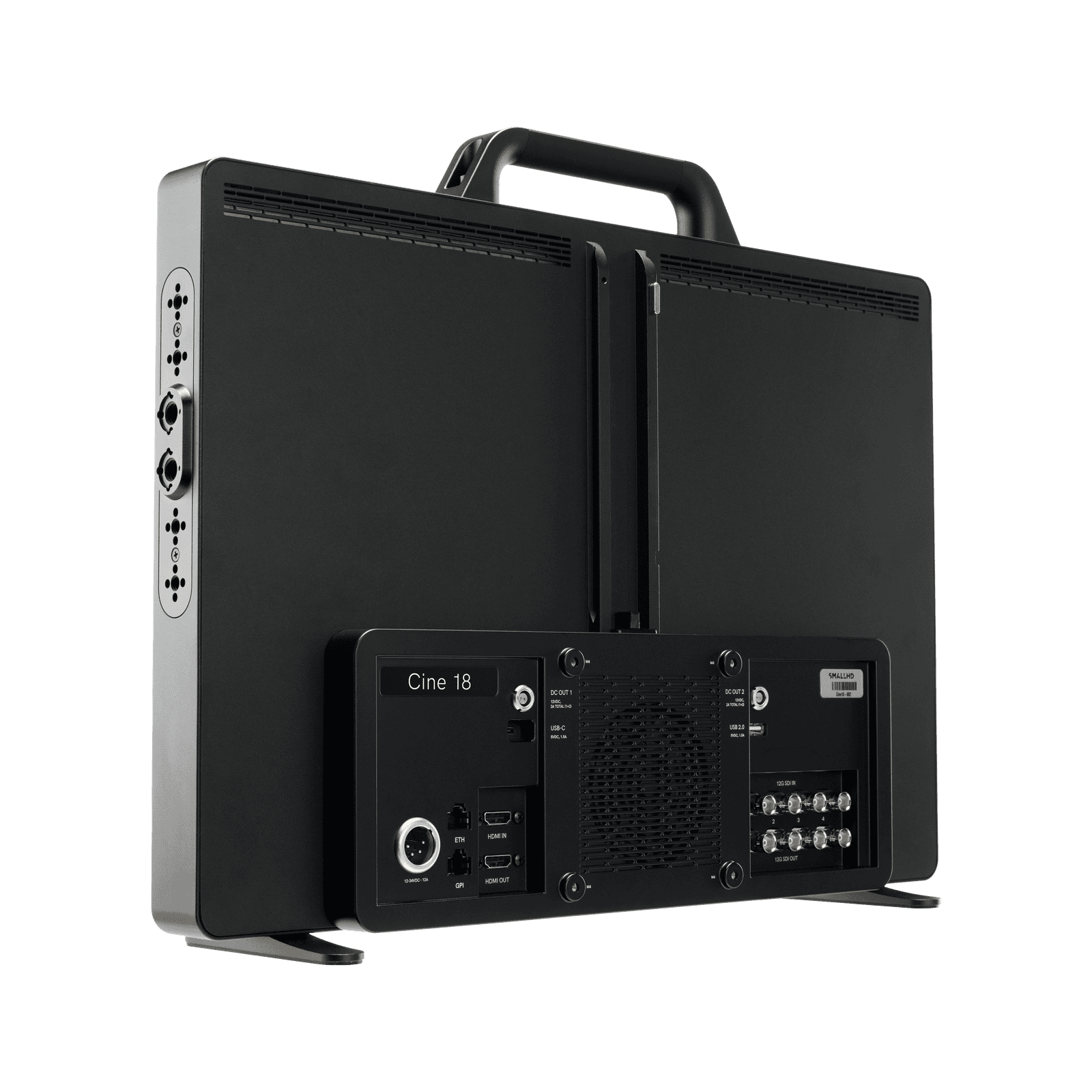

The Cine 18 features four 12G-SDI inputs and outputs, along with a single HDMI 2.0 input. The Unibody Smart Chassis includes a VESA mounting pattern and two 2-pin accessory power outputs. Hot-swappable dual battery inputs allow compatibility with Gold Mount or V-Mount battery plate attachments.

Meet Our Smart PageOS Software

Powered by SmallHD PageOS, the Cine 18 enables fully customizable Page Profiles and access to industry-trusted monitoring tools, including frame guides, focus and exposure assist, high-resolution 3D LUT overlays, histogram, vectorscope, waveform, and more.

Model Cine 18″ 4K Reference Monitor
Environmental
Item Weight (oz) 11.15lbs/5.06kg
Package Weight (oz) 21lbs
Height (in) 12.69 w/o feet and handle, 14.65 w/feet and handle
Width (in) 18.4
Length/Depth (in) 2.38 w/o feet, 4.72 w/feet
Compliance FCC, IC, CE, UKCA, BIS, RCM, ROHS
Operating Temperature 32 F – 105 F
Storage Temperature 0F to 120F
Screen Protection Hardened

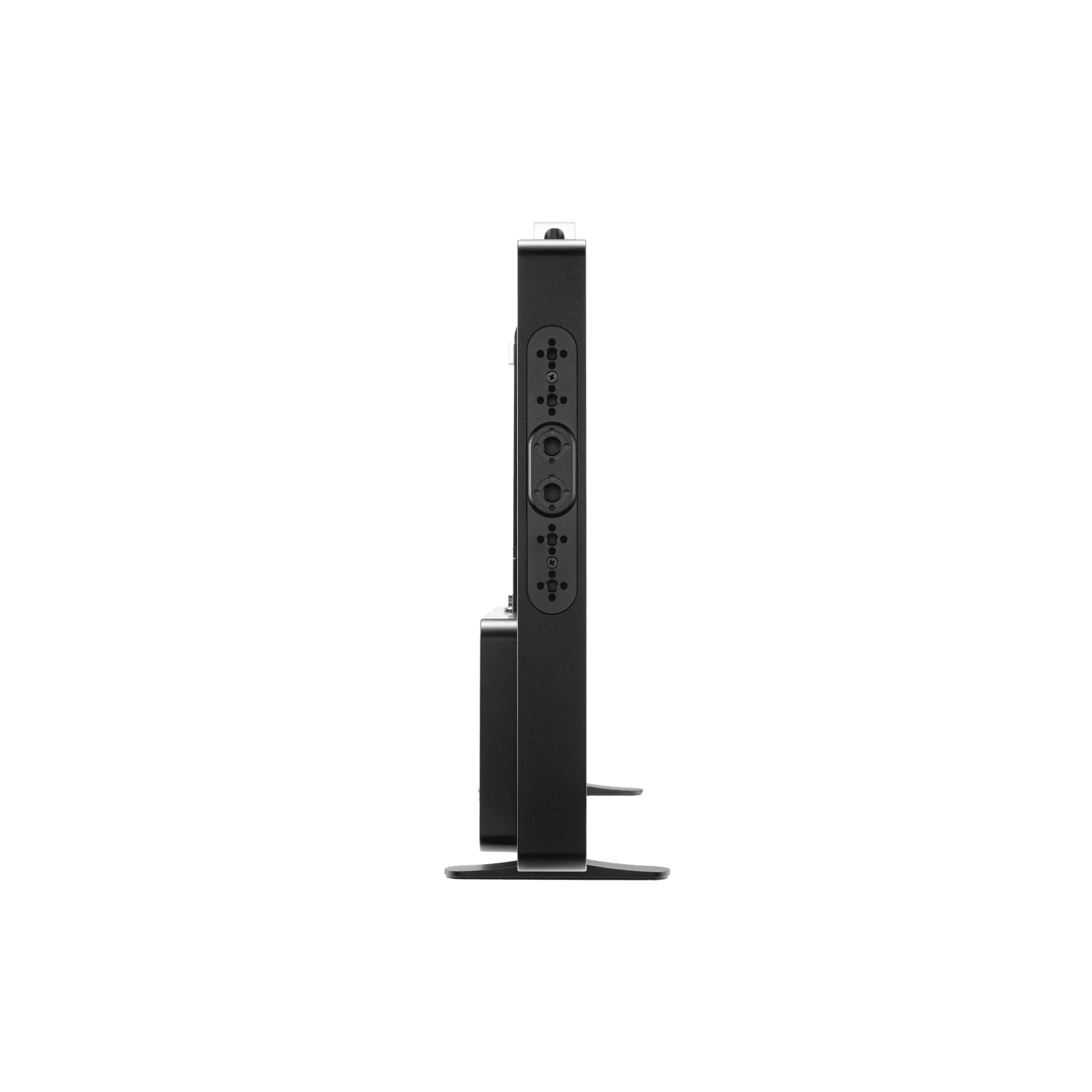

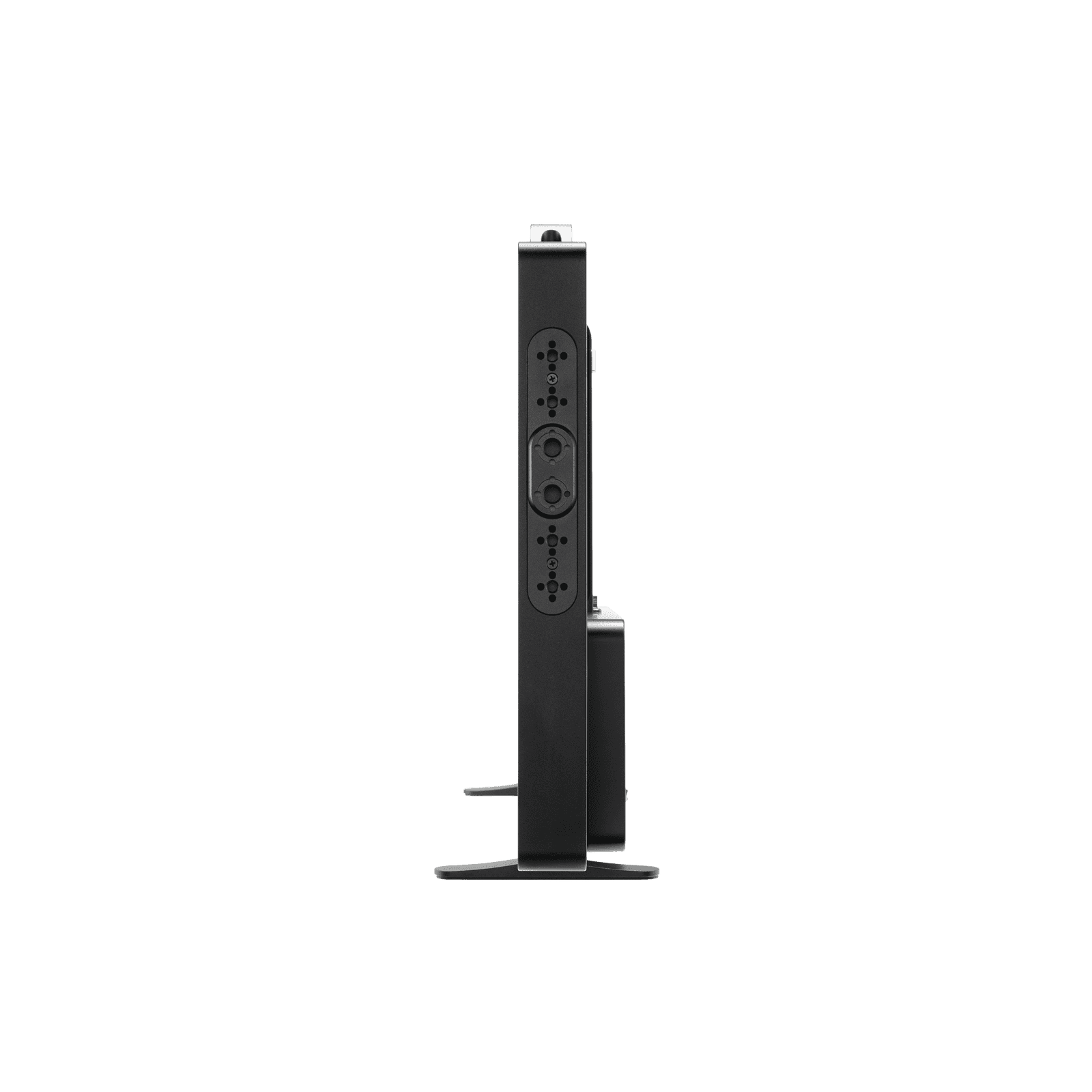

Mount Points Interchangeable accessory mount plates on top and sides with multiple ¼”-20 and/or ⅜”-16 options
Construction Anodized Aluminum unibody
Display
Panel Type IPS LCD
Diagonal Size 18.4″
Resolution 3840×2160
Pixel Density 238 PPI
Aspect Ratio 16:9
Active Area 408.96 (H) × 230.04(V) mm
Max Brightness 1100nits
Contrast 1300:1
Gamut 100% Rec709, 98% DCI P3
Color Depth 10-bit (8+2)
Backlight Type Edgelit
Refresh Rate Synchronizes with input from 48Hz to 60Hz
Display Size 18″
Panel Resolution 3840 x 2160
Color Bit Depth 10-bit (8+2)
Input Signal
3G-SDI Input Types YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100
YCC 4:4:4, YCC+A 4:4:4:4, RGB, RGB+A @ 10 bits: DCI-2Kp30, DCI-2Kp29.97, DCI-2Kp25, DCI-2Kp24, DCI-2Kp23.98, 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98
YCC 4:4:4, YCC+A 4:2:2:4, RGB @ 12 bits: DCI-2Kp30, DCI-2Kp29.97, DCI-2Kp25, DCI-2Kp24, DCI-2Kp23.98, 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98
6G-SDI Input Types YCC 4:2:2 @ 10 bits: DCI-4Kp30, DCI-4Kp29.97, DCI-4Kp25, DCI-4Kp24, DCI-4Kp23.98, 2160p30, 2160p29.97, 2160p24, 2160p23.98
YCC 4:4:4, YCC+A 4:4:4:4, RGB, RGB+A @ 10 bits: DCI-2Kp60, DCI-2Kp59.94, DCI-2Kp50, DCI-2Kp48, DCI-2Kp47.95, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.95
YCC 4:4:4, YCC+A 4:2:2:4, RGB @ 12 bits: DCI-2Kp60, DCI-2Kp59.94, DCI-2Kp50, DCI-2Kp48, DCI-2Kp47.95, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.95
12G-SDI Input Types YCC 4:2:2 @ 10 bits: DCI-4Kp60, DCI-4Kp59.94, DCI-4Kp50, DCI-4Kp48, DCI-4Kp47.95, 2160p60, 2160p59.94, 2160p48, 2160p47.95
YCC 4:4:4, YCC+A 4:4:4:4, RGB, RGB+A @ 10 bits: DCI-4Kp30, DCI-4Kp29.97, DCI-4Kp25, DCI-4Kp24, DCI-4Kp23.98, 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98
YCC 4:4:4, YCC+A 4:2:2:4, RGB, @ 12 bits: DCI-4Kp30, DCI-4Kp29.97, DCI-4Kp25, DCI-4Kp24, DCI-4Kp23.98, 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98
HD-SDI Input Types YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
SD-SDI Input Types YCC 4:2:2 @ 10-bits: 480i59.94, 576i50
HDMI Input Types YCC 4:2:2 @ 12 bits, RGB & YCC 4:4:4 @ 8bits: DCI-4Kp60, DCI-4Kp59.94, DCI-4Kp50, DCI-4Kp48, DCI-4Kp47.95, 2160p60, 2160p59.94, 2160p48, 2160p47.95
YCC 4:2:2: @ 12 bits, RGB & YCC 4:4:4 @8/10/12/16 bits: DCI-4Kp30, DCI-4Kp29.97, DCI-4Kp25, DCI-4Kp24, DCI-4Kp23.98, 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, DCI-2Kp60, DCI-2Kp59.94, DCI-2Kp50, DCI-2Kp48, DCI-2Kp47.95, DCI-2Kp30, DCI-2Kp29.97, DCI-2Kp25, DCI-2Kp24, DCI-2Kp23.98, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.95, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98,1080i120, 1080i119.88, 1080i60, 1080i59.94, 1080i50, 1080i30, 1080i29.97, 1080i25, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p120, 480p119.88, 480p100, 480p60, 480p59.94, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 480i30, 480i29.97, 480i24, 480i23.98, 576i200, 576i100, 576i50, 576i25
Audio Input Types HDMI & SDI – Monitor through Speakers in Front Bezel or Through Headphone Jack – Metering up to 8 channels
Output Signal
3G-SDI Output Types YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100
YCC 4:4:4, YCC+A 4:4:4:4, RGB, RGB+A @ 10 bits: DCI-2Kp30, DCI-2Kp29.97, DCI-2Kp25, DCI-2Kp24, DCI-2Kp23.98, 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98
YCC 4:4:4, YCC+A 4:2:2:4, RGB @ 12 bits: DCI-2Kp30, DCI-2Kp29.97, DCI-2Kp25, DCI-2Kp24, DCI-2Kp23.98, 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98
6G-SDI Output Types YCC 4:2:2 @ 10 bits: DCI-4Kp30, DCI-4Kp29.97, DCI-4Kp25, DCI-4Kp24, DCI-4Kp23.98, 2160p30, 2160p29.97, 2160p24, 2160p23.98
YCC 4:4:4, YCC+A 4:4:4:4, RGB, RGB+A @ 10 bits: DCI-2Kp60, DCI-2Kp59.94, DCI-2Kp50, DCI-2Kp48, DCI-2Kp47.95, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.95
YCC 4:4:4, YCC+A 4:2:2:4, RGB @ 12 bits: DCI-2Kp60, DCI-2Kp59.94, DCI-2Kp50, DCI-2Kp48, DCI-2Kp47.95, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.95
12G-SDI Output Types YCC 4:2:2 @ 10 bits: DCI-4Kp60, DCI-4Kp59.94, DCI-4Kp50, DCI-4Kp48, DCI-4Kp47.95, 2160p60, 2160p59.94, 2160p48, 2160p47.95
YCC 4:4:4, YCC+A 4:4:4:4, RGB, RGB+A @ 10 bits: DCI-4Kp30, DCI-4Kp29.97, DCI-4Kp25, DCI-4Kp24, DCI-4Kp23.98, 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98
YCC 4:4:4, YCC+A 4:2:2:4, RGB, @ 12 bits: DCI-4Kp30, DCI-4Kp29.97, DCI-4Kp25, DCI-4Kp24, DCI-4Kp23.98, 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98
HD-SDI Output Types YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
SD-SDI Output Types YCC 4:2:2 @ 10-bits: 480i59.94, 576i50
HDMI Output Types YCC 4:2:2 @ 12 bits, RGB & YCC 4:4:4 @ 8bits: DCI-4Kp60, DCI-4Kp59.94, DCI-4Kp50, DCI-4Kp48, DCI-4Kp47.95, 2160p60, 2160p59.94, 2160p48, 2160p47.95
YCC 4:2:2: @ 12 bits, RGB & YCC 4:4:4 @8/10/12/16 bits: DCI-4Kp30, DCI-4Kp29.97, DCI-4Kp25, DCI-4Kp24, DCI-4Kp23.98, 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, DCI-2Kp60, DCI-2Kp59.94, DCI-2Kp50, DCI-2Kp48, DCI-2Kp47.95, DCI-2Kp30, DCI-2Kp29.97, DCI-2Kp25, DCI-2Kp24, DCI-2Kp23.98, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.95, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98,1080i120, 1080i119.88, 1080i60, 1080i59.94, 1080i50, 1080i30, 1080i29.97, 1080i25, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p120, 480p119.88, 480p100, 480p60, 480p59.94, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 480i30, 480i29.97, 480i24, 480i23.98, 576i200, 576i100, 576i50, 576i25
Audio Output Types 1x 3.5mm 3-pin Stereo Headphone Jack and built in speaker
Connector Type
SDI 4x BNC 12G input and 4x BNC 12G output
HDMI 1 input and 1 output: HDMI Type-A Receptacles (full size)
Audio HDMI & SDI – Monitor through Speakers in Front Bezel or Through Headphone Jack – Metering up to 8 channels
Power In 4-pin XLR
Power Out 2x 2-pin locking (12VDC @ 2A Max), 1 USB type C (5V @ 1.5A max)
USB 2x USB A, 1x USB C
Controls
Primary RJ45 for GPI
Record Capture Image Capture Tool
USB 2x USB A, 1x USB C
Data I/O
Connector Type 1x SD Card Slot,
1x RJ45 Ethernet,
1x RJ45 GPI
SDI 4x BNC 12G input and 4x BNC 12G output
HDMI 1 input and 1 output: HDMI Type-A Receptacles (full size)
Audio 1x 3.5mm 3-pin Stereo Headphone Jack
Ethernet RJ45
Storage Media 1x SD Card Slot
USB 2x USB A, 1x USB C
Wireless 2.4GHz WLAN
Wi Fi 2.4GHz WLAN
Power
Input 1x XLR 4-pin 12 – 34VDC IN
(210W max, 12V-34V, 18A max)
1x Dual-GM/VM Batt. Plate (14V/26V) sold separately
Output 2x 2pin (12V / 2A combined), 1x USB-A (2.4A) (Front), 1x USB-A (1.5A) (Rear), 1x USB-C (5V / 1.5A) (Rear)
Battery Plate Included No
Power Supply Recommended DC 15V, 180W. DC 15V, 81W for Monitor Only
Battery Types 1x Dual-GM/VM Batt.Plate (14/26V) (sold as accessory)

Additional information

Brand

  • 1 x SmallHD Cleaning Cloth
  • 1x Power Supply
  • 1x 8GB SD Card
  • 1x Premium Monitor Handle for 4K Monitors
  • 1x SmallHD 4K Monitor Feet (Set)
  • 1x cine-18-transport-screen-protector
