SmallHD

OLED 16

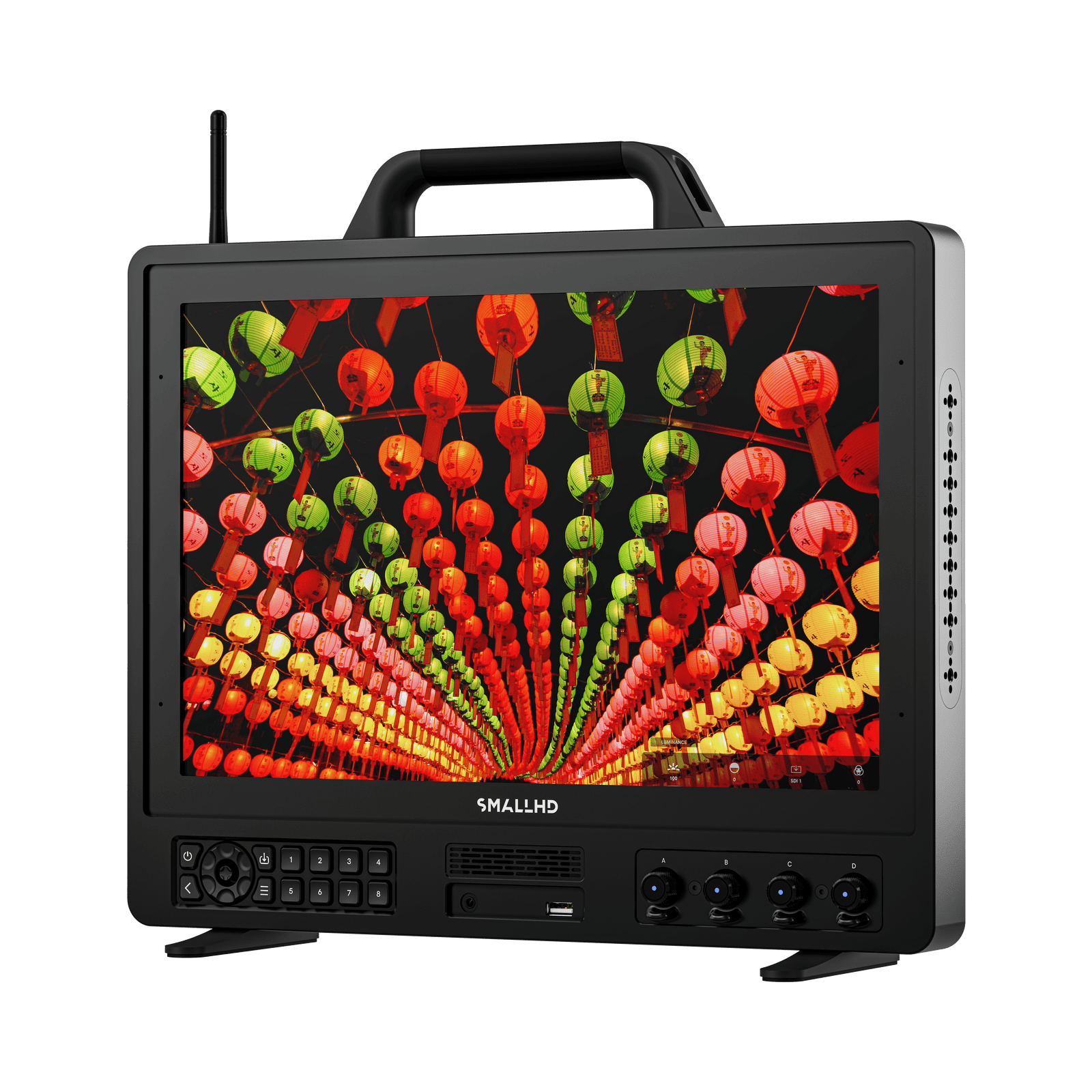

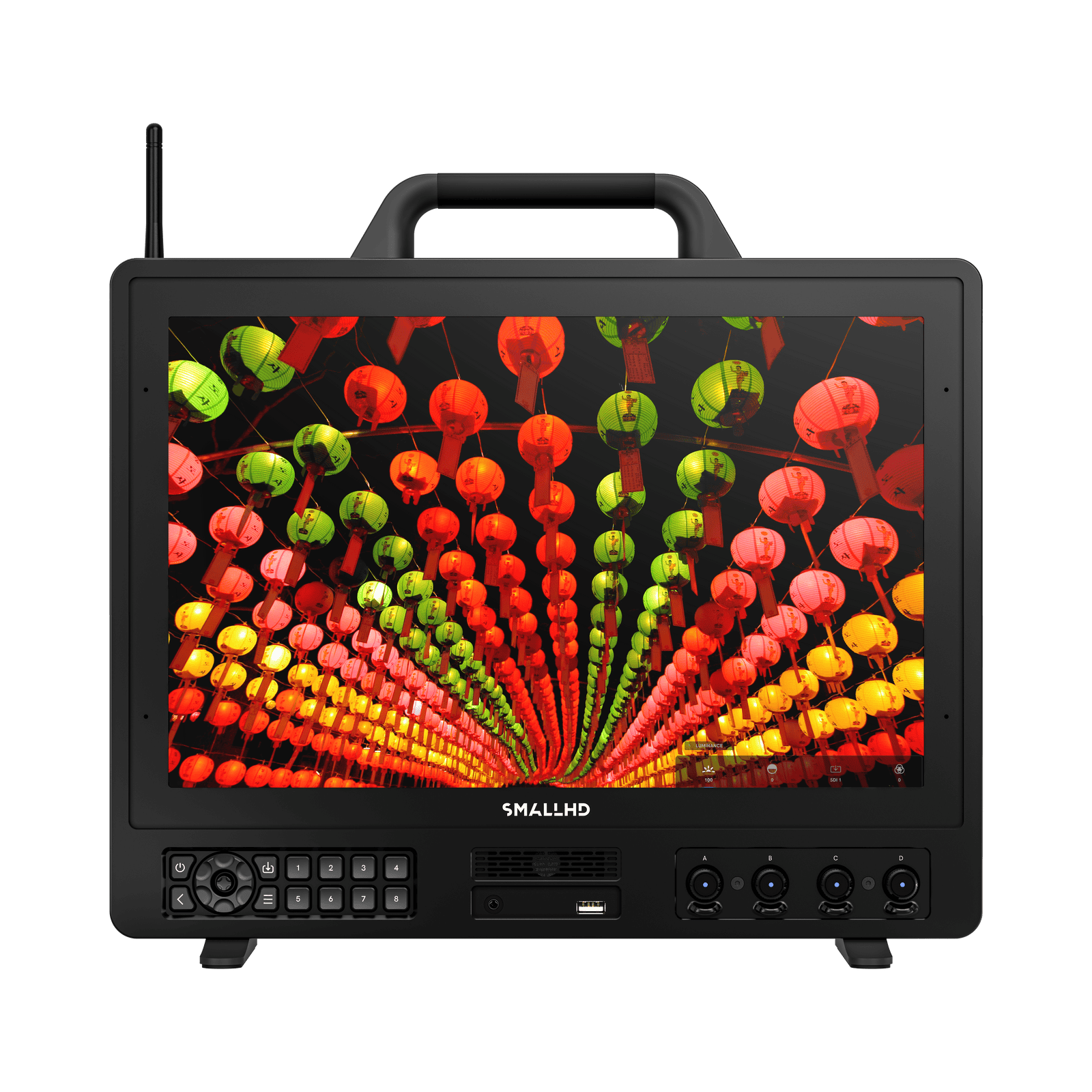

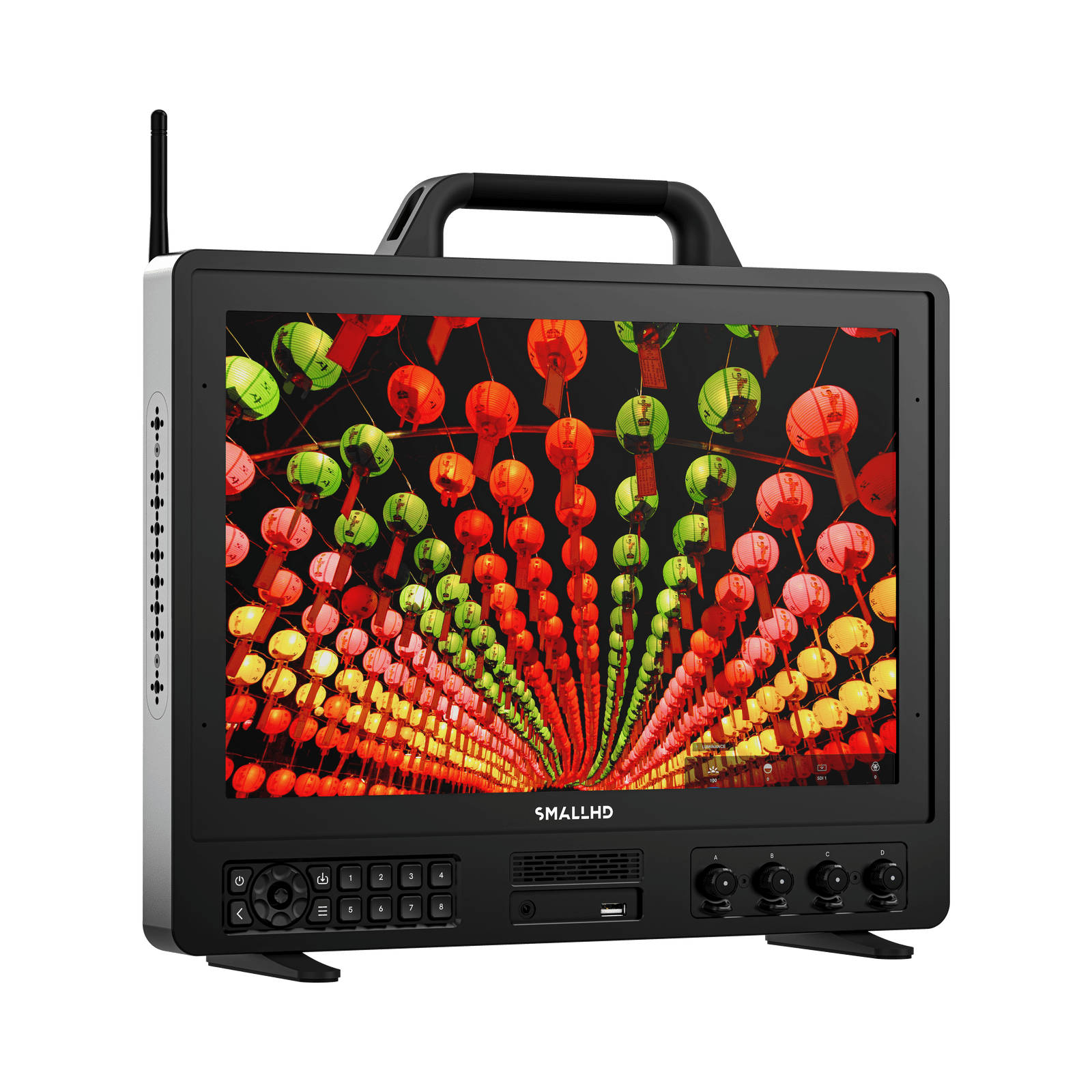

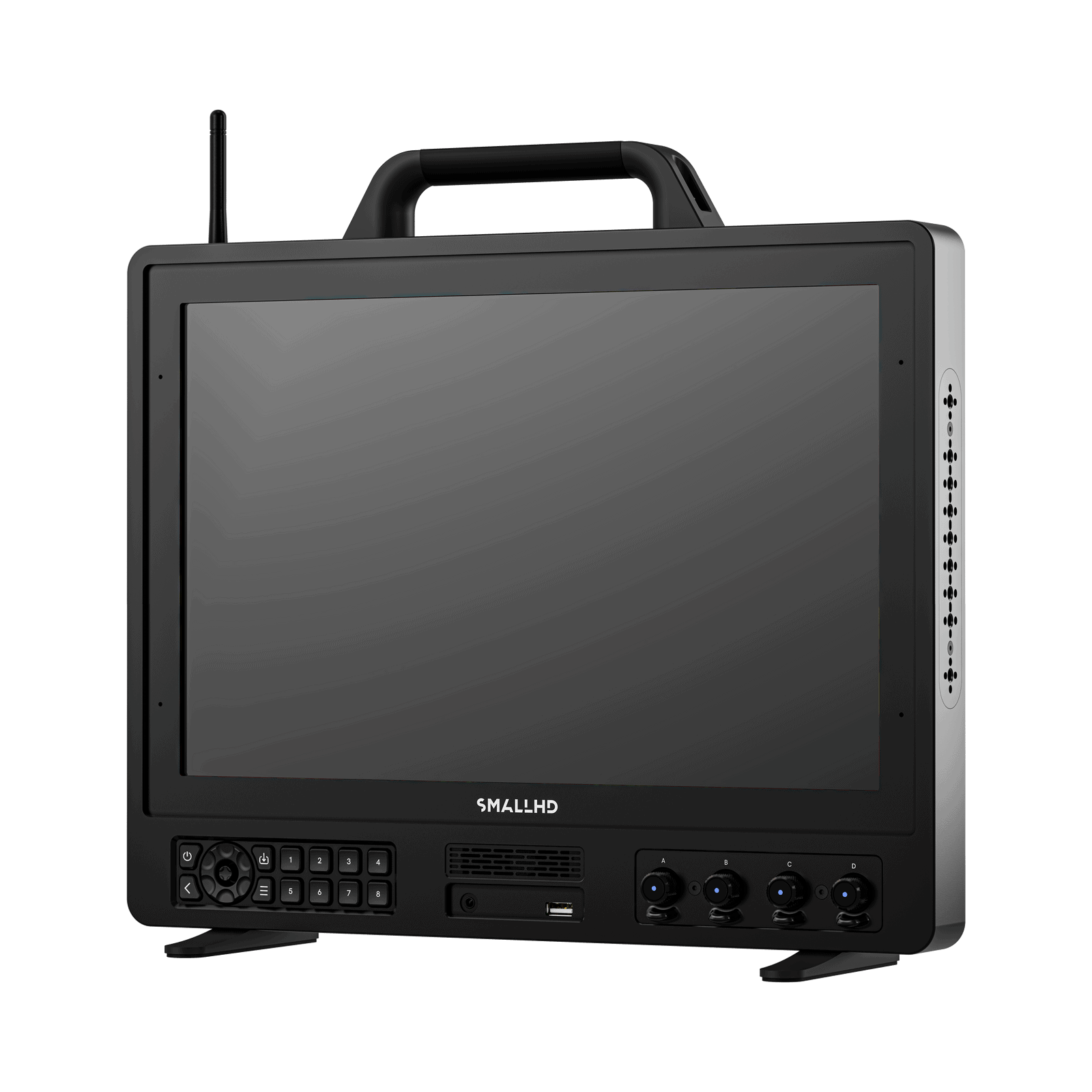

OLED 16 is a 16-inch reference-grade production monitor built for precise color evaluation and consistent image matching across multi-monitor workflows. Designed for on-set and studio use, it delivers true blacks and stable color performance in a compact form factor ideal for DIT carts and video village.

5.718,07€ (ex. VAT)

SKU: 16-1601 Categories: , , Brand:

OLED 16 is a 16-inch reference-grade production monitor built for precise color evaluation and consistent image matching across multi-monitor workflows. Designed for on-set and studio use, it delivers true blacks and stable color performance in a compact form factor ideal for DIT carts and video village.

Featuring a 3840 × 2400 panel with 10-bit processing and a 1,000,000:1 contrast ratio, OLED 16 supports four 12G inputs and outputs. The unibody chassis provides flexible mounting and a smart rail system for fast rigging and expansion.

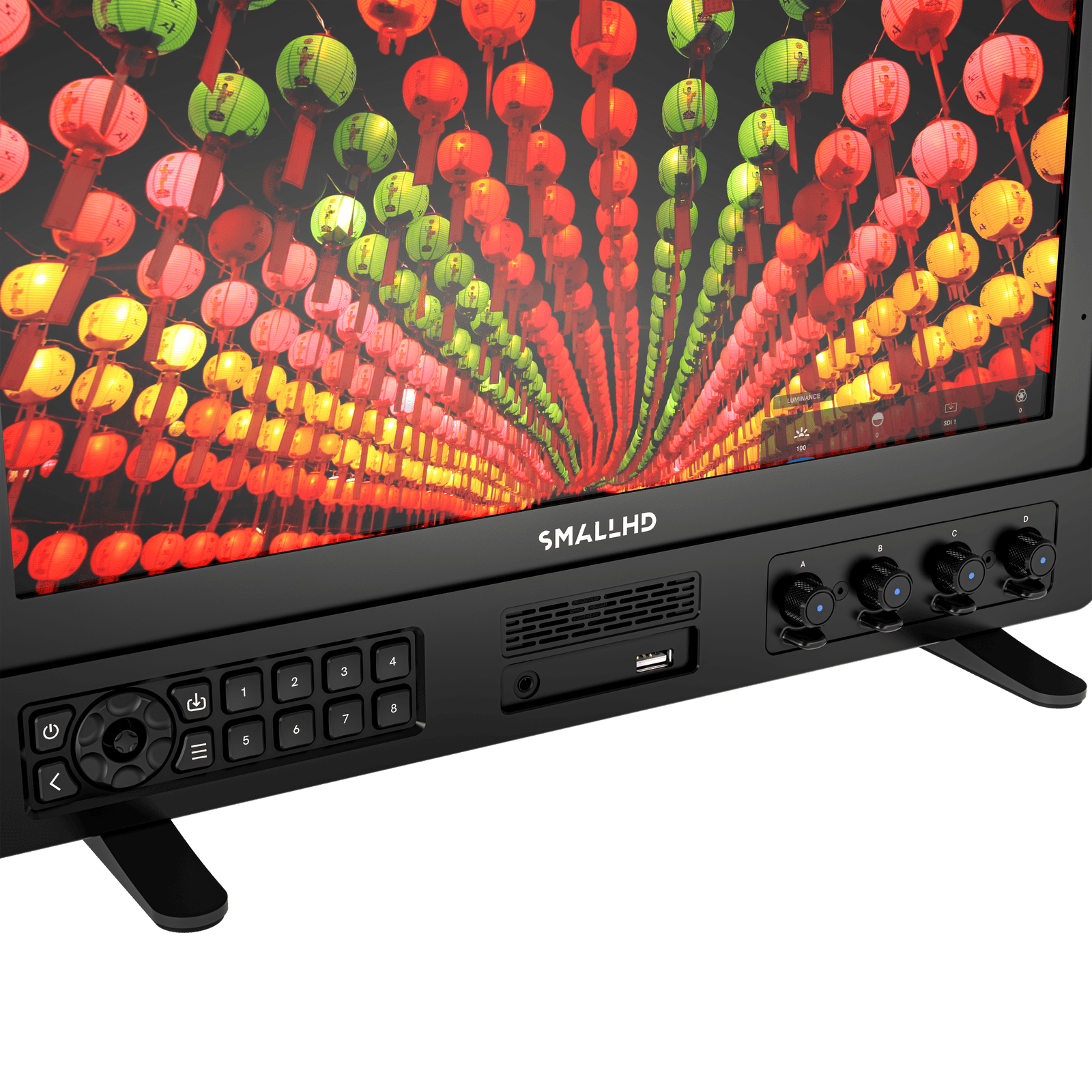

Running PageOS, OLED 16 integrates seamlessly into larger monitor ecosystems. With built-in WiFi and Fleet Control support, users can deploy settings, LUTs, and configurations across multiple monitors to maintain consistency on set. Four front-facing customizable dials provide fast, tactile control for critical adjustments.

Self-emissive OLED technology ensures accurate shadow detail and exposure evaluation without blooming or haloing, making OLED 16 well-suited for high-end cinematography and client-facing review environments where image consistency matters.

Model OLED 16
Environmental
Item Weight (oz) 10.4lbs/4.72kg
Package Weight (oz) 19 lbs
Height (in) 12.29 w/o feet and handle, 14.22 w/ feet and handle
Width (in) 15.76
Length/Depth (in) 2.73 w/o feet and w/dials, 4.72 w/feet and dials
Compliance FCC, IC, CE, UKCA, MIC, RCM, ROHS
Operating Temperature 32 F – 105 F
Storage Temperature 0F to 120F
Screen Protection Hardened
Mount Points Interchangeable accessory mount plates on top and sides with multiple ¼”-20 and/or ⅜”-16 options
Construction Anodized Aluminum unibody
Display
Panel Type AMOLED
Diagonal Size 16.00″
Resolution 3840×2400
Pixel Density 283 PPI
Aspect Ratio 16:10
Active Area 344.448 (H) x 215.280 (V) mm
Max Brightness 400nits
Contrast 1,000,000:1
Gamut Rec709 coverage 100%
DCI-P3 coverage 100%
Rec2020 coverage 80%
Color Depth 10-bit (8+2)
Backlight Type AMOLED
Refresh Rate Fixed 60Hz
Display Size 16″
Panel Resolution 3840 x 2160
Brightness 400nits
Color Bit Depth 10-bit (8+2)
Backlight Type AMOLED
DCI-P3 Color 100% DCI-P3
Input Signal
3G-SDI Input Types YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100
YCC 4:4:4, YCC+A 4:4:4:4, RGB, RGB+A @ 10 bits: DCI-2Kp30, DCI-2Kp29.97, DCI-2Kp25, DCI-2Kp24, DCI-2Kp23.98, 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98
YCC 4:4:4, YCC+A 4:2:2:4, RGB @ 12 bits: DCI-2Kp30, DCI-2Kp29.97, DCI-2Kp25, DCI-2Kp24, DCI-2Kp23.98, 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98
6G-SDI Input Types YCC 4:2:2 @ 10 bits: DCI-4Kp30, DCI-4Kp29.97, DCI-4Kp25, DCI-4Kp24, DCI-4Kp23.98, 2160p30, 2160p29.97, 2160p24, 2160p23.98
YCC 4:4:4, YCC+A 4:4:4:4, RGB, RGB+A @ 10 bits: DCI-2Kp60, DCI-2Kp59.94, DCI-2Kp50, DCI-2Kp48, DCI-2Kp47.95, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.95
YCC 4:4:4, YCC+A 4:2:2:4, RGB @ 12 bits: DCI-2Kp60, DCI-2Kp59.94, DCI-2Kp50, DCI-2Kp48, DCI-2Kp47.95, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.95
12G-SDI Input Types YCC 4:2:2 @ 10 bits: DCI-4Kp60, DCI-4Kp59.94, DCI-4Kp50, DCI-4Kp48, DCI-4Kp47.95, 2160p60, 2160p59.94, 2160p48, 2160p47.95
YCC 4:4:4, YCC+A 4:4:4:4, RGB, RGB+A @ 10 bits: DCI-4Kp30, DCI-4Kp29.97, DCI-4Kp25, DCI-4Kp24, DCI-4Kp23.98, 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98
YCC 4:4:4, YCC+A 4:2:2:4, RGB, @ 12 bits: DCI-4Kp30, DCI-4Kp29.97, DCI-4Kp25, DCI-4Kp24, DCI-4Kp23.98, 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98
HD-SDI Input Types YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
SD-SDI Input Types YCC 4:2:2 @ 10-bits: 480i59.94, 576i50
HDMI Input Types YCC 4:2:2 @ 12 bits, RGB & YCC 4:4:4 @ 8bits: DCI-4Kp60, DCI-4Kp59.94, DCI-4Kp50, DCI-4Kp48, DCI-4Kp47.95, 2160p60, 2160p59.94, 2160p48, 2160p47.95
YCC 4:2:2: @ 12 bits, RGB & YCC 4:4:4 @8/10/12/16 bits: DCI-4Kp30, DCI-4Kp29.97, DCI-4Kp25, DCI-4Kp24, DCI-4Kp23.98, 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, DCI-2Kp60, DCI-2Kp59.94, DCI-2Kp50, DCI-2Kp48, DCI-2Kp47.95, DCI-2Kp30, DCI-2Kp29.97, DCI-2Kp25, DCI-2Kp24, DCI-2Kp23.98, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.95, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98,1080i120, 1080i119.88, 1080i60, 1080i59.94, 1080i50, 1080i30, 1080i29.97, 1080i25, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p120, 480p119.88, 480p100, 480p60, 480p59.94, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 480i30, 480i29.97, 480i24, 480i23.98, 576i200, 576i100, 576i50, 576i25
Audio Input Types HDMI & SDI – Monitor through Speakers in Front Bezel or Through Headphone Jack – Metering up to 8 channels
Output Signal
3G-SDI Output Types YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100
YCC 4:4:4, YCC+A 4:4:4:4, RGB, RGB+A @ 10 bits: DCI-2Kp30, DCI-2Kp29.97, DCI-2Kp25, DCI-2Kp24, DCI-2Kp23.98, 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98
YCC 4:4:4, YCC+A 4:2:2:4, RGB @ 12 bits: DCI-2Kp30, DCI-2Kp29.97, DCI-2Kp25, DCI-2Kp24, DCI-2Kp23.98, 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98
6G-SDI Output Types YCC 4:2:2 @ 10 bits: DCI-4Kp30, DCI-4Kp29.97, DCI-4Kp25, DCI-4Kp24, DCI-4Kp23.98, 2160p30, 2160p29.97, 2160p24, 2160p23.98
YCC 4:4:4, YCC+A 4:4:4:4, RGB, RGB+A @ 10 bits: DCI-2Kp60, DCI-2Kp59.94, DCI-2Kp50, DCI-2Kp48, DCI-2Kp47.95, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.95
YCC 4:4:4, YCC+A 4:2:2:4, RGB @ 12 bits: DCI-2Kp60, DCI-2Kp59.94, DCI-2Kp50, DCI-2Kp48, DCI-2Kp47.95, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.95
12G-SDI Output Types YCC 4:2:2 @ 10 bits: DCI-4Kp60, DCI-4Kp59.94, DCI-4Kp50, DCI-4Kp48, DCI-4Kp47.95, 2160p60, 2160p59.94, 2160p48, 2160p47.95
YCC 4:4:4, YCC+A 4:4:4:4, RGB, RGB+A @ 10 bits: DCI-4Kp30, DCI-4Kp29.97, DCI-4Kp25, DCI-4Kp24, DCI-4Kp23.98, 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98
YCC 4:4:4, YCC+A 4:2:2:4, RGB, @ 12 bits: DCI-4Kp30, DCI-4Kp29.97, DCI-4Kp25, DCI-4Kp24, DCI-4Kp23.98, 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98
HD-SDI Output Types YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
SD-SDI Output Types YCC 4:2:2 @ 10-bits: 480i59.94, 576i50
HDMI Output Types YCC 4:2:2 @ 12 bits, RGB & YCC 4:4:4 @ 8bits: DCI-4Kp60, DCI-4Kp59.94, DCI-4Kp50, DCI-4Kp48, DCI-4Kp47.95, 2160p60, 2160p59.94, 2160p48, 2160p47.95
YCC 4:2:2: @ 12 bits, RGB & YCC 4:4:4 @8/10/12/16 bits: DCI-4Kp30, DCI-4Kp29.97, DCI-4Kp25, DCI-4Kp24, DCI-4Kp23.98, 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, DCI-2Kp60, DCI-2Kp59.94, DCI-2Kp50, DCI-2Kp48, DCI-2Kp47.95, DCI-2Kp30, DCI-2Kp29.97, DCI-2Kp25, DCI-2Kp24, DCI-2Kp23.98, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.95, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98,1080i120, 1080i119.88, 1080i60, 1080i59.94, 1080i50, 1080i30, 1080i29.97, 1080i25, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p120, 480p119.88, 480p100, 480p60, 480p59.94, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 480i30, 480i29.97, 480i24, 480i23.98, 576i200, 576i100, 576i50, 576i25
Audio Output Types 1x 3.5mm 3-pin Stereo Headphone Jack and built in speaker

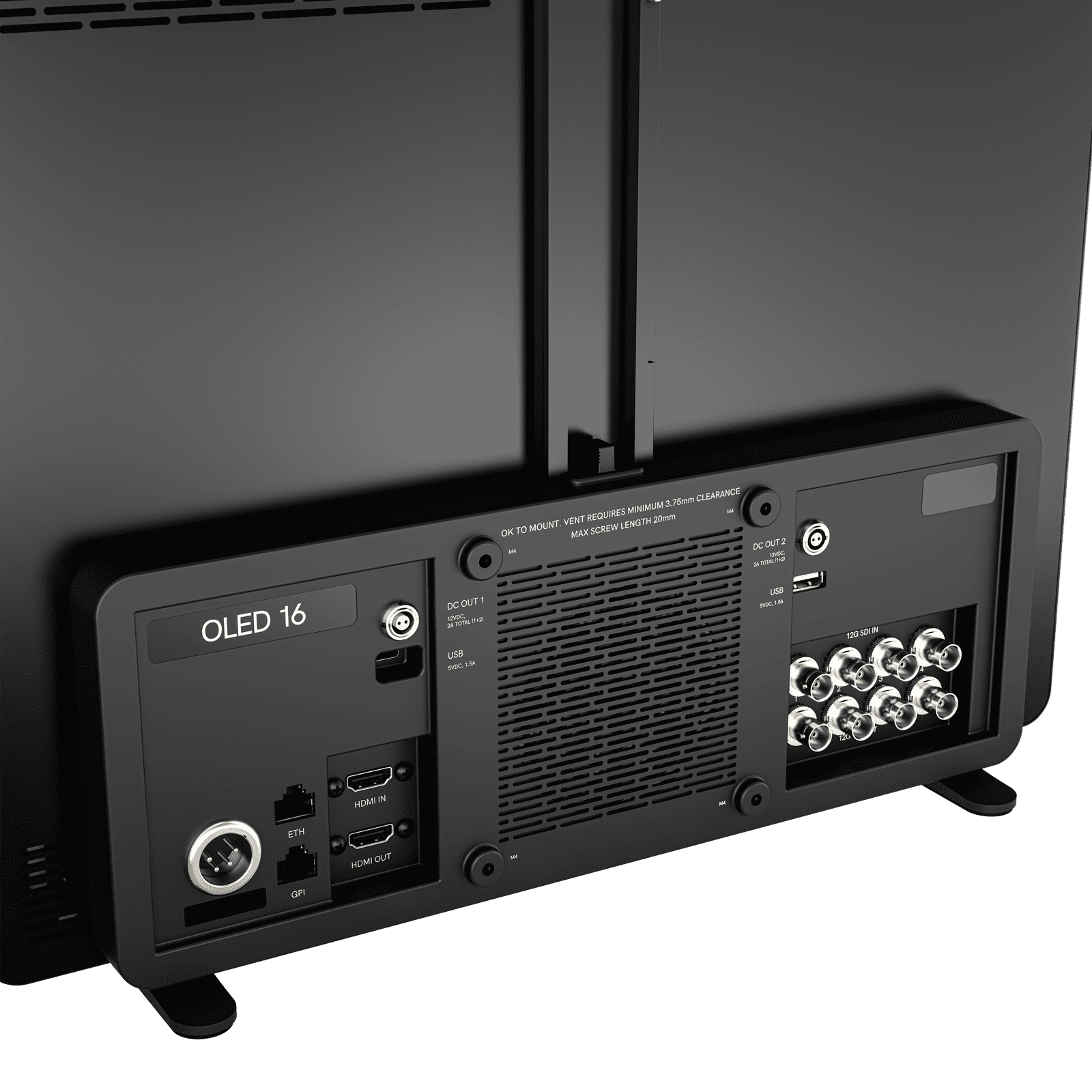

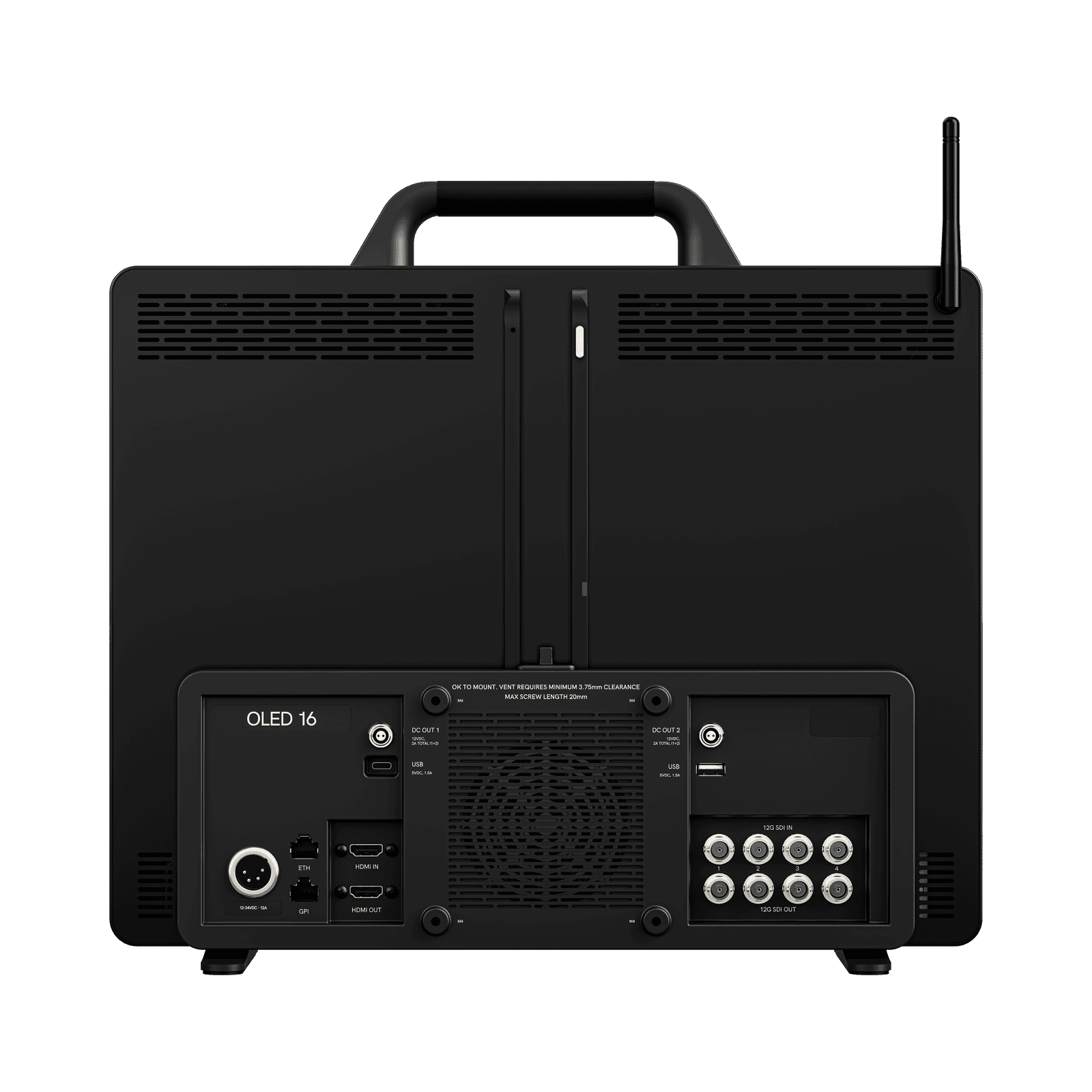

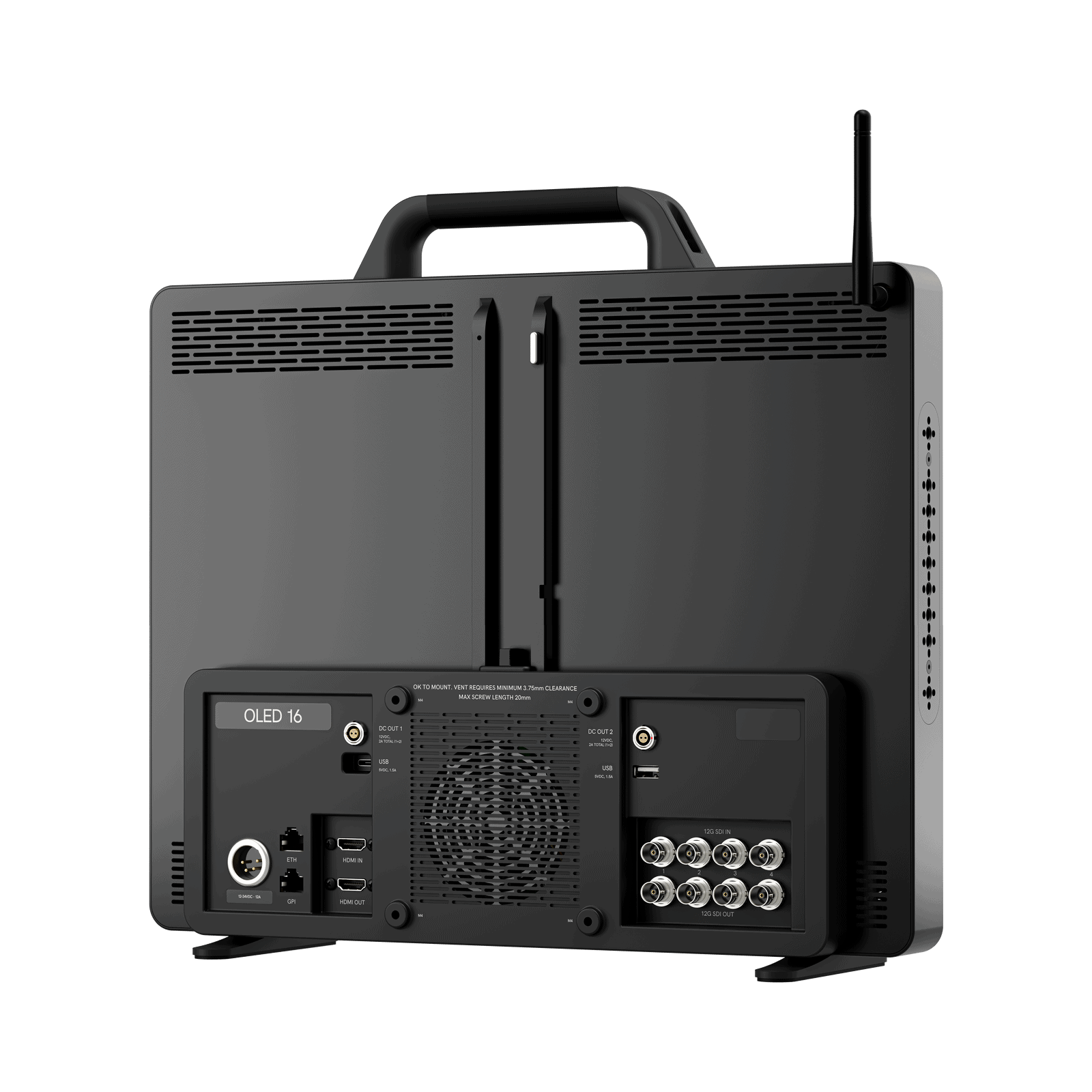

Connector Type
SDI 4x BNC 12G input and 4x BNC 12G output
HDMI 1 input and 1 output: HDMI Type-A Receptacles (full size)
Audio HDMI & SDI – Monitor through Speakers in Front Bezel or Through Headphone Jack – Metering up to 8 channels
Power In 4-pin XLR
Power Out 2x 2-pin locking (12VDC @ 2A Max), 1 USB type C (5V @ 1.5A max)
USB 2x USB A, 1x USB C
Controls
Primary RJ45 for GPI
Record Capture Image Capture Tool
Wireless 2.4GHz WLAN
USB 2x USB A, 1x USB C
Data I/O
Connector Type 1x RJ45 Ethernet,
1x RJ45 GPI
SDI 4x BNC 12G input and 4x BNC 12G output
HDMI 1 input and 1 output: HDMI Type-A Receptacles (full size)
Audio 1x 3.5mm 3-pin Stereo Headphone Jack
Ethernet RJ45
USB 2x USB A, 1x USB C
Wireless 2.4GHz WLAN
Wi Fi 2.4GHz WLAN
Monitoring I/O 1x RJ45 Ethernet
1x RJ45 GPI
1x USB Front
2x USB Rear
Power
Input 1x 4pin XLR (12-34V DC/143W Max)
1x Dual-GM/VM Batt. Plate (14V/26V) sold separately
Output 2x 2pin locking (12V/2A combined)
1x USB (5V/2.4A) (Front)
1x USB (5V/1.5A) (Rear)
1x USB (5V/1.5A) (Rear)
Power Supply Recommended DC 15V, 180W. DC 15V, 38W for Monitor Only
Battery Types 1x Dual-GM/VM Batt.Plate (14/26V) (sold as accessory)
Software
LUTS 4x 33pt 3D-LUT for input processing
1x 33pt 3D-LUT for output processing
1x 33pt 3D-LUT dedicated for Calbration

Additional information

Brand

  • 1 x OLED 16
  • 1 x 15V / 180W Power Supply
  • 1 x Transport screen protector
  • 1 x Microfiber Cleaning Cloth
