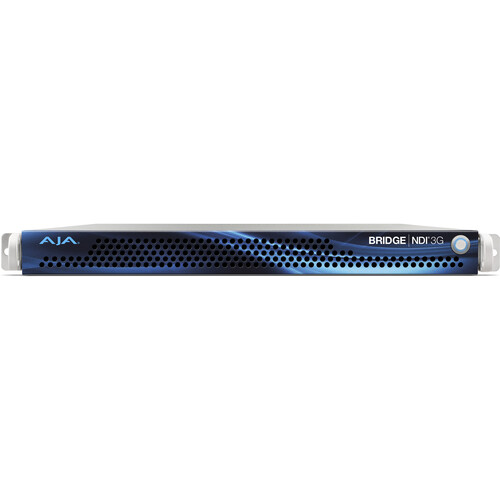

AJA Bridge NDI 3G 3G-SDI to ND/NDI to 3G-SDI Converter

The Bridge NDI 3G Converter from AJA provides high-capacity 3G-SDI to NDI and NDI to 3G-SDI conversion in a compact 1 RU form. Designed to fit into your existing SDI or NDI workflow, this plug-and-play converter is ideal for broadcast, security, sports, entertainment, and other AV applications.

12.915,00 (ex. VAT)

SKU: BRIDGE-NDI-3G Categories: , ,

The Bridge NDI 3G Converter from AJA provides high-capacity 3G-SDI to NDI and NDI to 3G-SDI conversion in a compact 1 RU form. Designed to fit into your existing SDI or NDI workflow, this plug-and-play converter is ideal for broadcast, security, sports, entertainment, and other AV applications.

Converter features include support for up to DCI 4K60 4:2:2 10-bit video, 16 x 3G-SDI input/output ports, two x 10 GigE RJ45 input/output ports, support for up to 16-channel embedded audio, and both local and remote control.

3G-SDI to NDI & NDI to 3G-SDI Conversion
Bidirectional encoding/decoding from SDI to NDI or NDI to SDI
Combination of HD or DCI 4K/UHD 4K video
Applications
Use for broadcasting, eSports, entertainment venues and other facilities and security and surveillance
3G-SDI Input & Output
Supports up to 16 channels of 3G-SDI up to 1080p60 HD
Supports up to 4 channels of DCI or UHD 4K60
Selectable square division or 2SI 4K
Selectable NDI Profiles
Choose between 8-bit and 16-bit, 4:2:2 NDI encoding profiles
16-Channel Audio
SDI and ND embedded audio input and output
Supports 2, 8, or 16 channels of embedded audio
Flexible Operation
HD Input/Output
Use all HD channels for SDI to NDI encoding or NDI to SDI decoding
HD Video and Key I/O
V+K (video and key) grouping enables dual V+K HD SDI signals to be combined and encoded into a single NDI output with an alpha channel
Single NDI inputs with an alpha channel can be decoded and output as dual V+K SDI signals
Simultaneous Encoding and Decoding
Encodes SDI to NDI and decodes NDI to SDI simultaneously
Offers a gateway conversion for easily connecting SDI and NDI work areas
All Encoding Modes
Accepts up to 16 incoming HD video signals via 3G-SDI and applies NDI encoding to each channel, enabling up to 16 individual HD NDI channels to be output via 10 GigE.
The same 16 channels of 3G-SDI can also be used to enable:

Eight dual-channel video and key groups to NDI outputs
Four quad or dual-channel DCI 4K/UHD 4K groups to NDI outputs

When configured for encoding all incoming SDI inputs to NDI outputs, supports:
Simultaneous 3G-SDI inputs:

16 x simultaneous channels up to 60p YCbCr 4:2:2 10-bit
Simultaneous encoding for individual 1080p channels:

16 x simultaneous channels up to 60p
Simultaneous encoding for 1080p video and key pairs:

8 x simultaneous channels up to 60p
Simultaneous encoding for DCI 4K/UHD 4K groups:

4 x simultaneous channels up to 60p
Supported encoded output via 10 GigE:

NDI UYVY, 4:2:2, 8-bit, or P216, 4:2:2, 16-bit
All Decoding Modes
Decodes all incoming NDI signals input via the 10 GigE ports directly to the SDI outputs.
Decodes up to 16 x NDI or NDI HX inputs to uncompressed HD video for output via 16x 3G-SDI outputs.

Decodes up to 8 x NDI streams and an alpha channel for conversion and output as 8 x dual 3G-SDI HD video and key channels.

When decoding up to 4x 4K/UltraHD NDI streams, the 16 x connections can support either square division or 2SI for SDI output.

Simultaneous NDI/NDI HX Inputs:

4, 8, or 16 x simultaneous channels up to 60p, UYVY, 4:2:2, 8-bit
Simultaneous 1080p decoding:

16 x simultaneous channels up to 60p
Simultaneous 1080p video and key pairs decoding:

8 x simultaneous channels up to 60p
Simultaneous DCI 4K/UHD DK decoding:

4 x simultaneous channels up to 60p
Supported decoding output via dual 10 GigE ports:

YCbCr 4:2:2 10-bit
Encoding/Decoding Combos
Provides up to 8-channel combinations of SDI to NDI encoding and NDI to SDI decoding and SDI to NDI encoding in each direction.
Remote or Local Control
Control locally using a mouse and keyboard with a VGA-compatible monitor
Remote access for easy control via the same intuitive UI
Monitoring
Confidence monitoring via BNC or VGA video output
