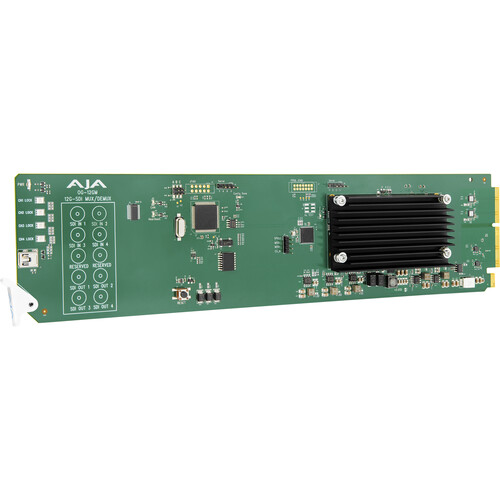

AJA OG-12GM 12G-SDI to/from SDI Muxer/Demuxer openGear Card

The OG-12GM 12G-SDI to/from SDI Muxer/Demuxer from AJA is an openGear card that provides 12G-SDI to quad-link 3G-SDI and quad-link 3G-SDI to 12G-SDI conversion for up to DCI 4K60 workflows. It supports both Square Division (Quadrant) and Two Sample Interleave (2SI) input and output and enables simple 60 fps to 59.94 fps and 59.94 fps to 60 fps frame rate conversion. This internal card is compatible with AJA OG-X-FR and OG-3-FR openGear frames.

1.084,00 (ex. VAT)

SKU: OG-12GM Categories: , ,

The OG-12GM 12G-SDI to/from SDI Muxer/Demuxer from AJA is an openGear card that provides 12G-SDI to quad-link 3G-SDI and quad-link 3G-SDI to 12G-SDI conversion for up to DCI 4K60 workflows. It supports both Square Division (Quadrant) and Two Sample Interleave (2SI) input and output and enables simple 60 fps to 59.94 fps and 59.94 fps to 60 fps frame rate conversion. This internal card is compatible with AJA OG-X-FR and OG-3-FR openGear frames.

openGear Card

  • Compatible with AJA OG-X-FR and OG-3-FR openGear frames
  • Hot-swappable
  • Includes rear I/O card
  • Requires 2 x slots for each card

Single 12G-SDI to Quad 3G-SDI Conversion

  • Single 12G-SDI to/from Quad 3G-SDI Level A
  • Single 12G-SDI to/from Quad 3G-SDI Level B-DL
  • Single 6G-SDI to/from Quad 1.5G-SDI
  • Quad 3G-SDI Level A to/from Quad 3G-SDI Level B-DL
  • Two Sample Interleave (2SI) to/from Square Division (Quadrant)
  • Pixel mapping
  • Input signal diagnostics and timing analyzer for quad link signals
  • Automatic or manual control
  • Detailed timing analysis for validating quad-link SDI inputs alignment

Frame Rate Conversion

Simple frame-rate conversion (FRC) of 60 to 59.94 fps and 59.94 to 60 fps

HDR Support

Supports High Dynamic Range (HDR) and Wide Color Gamut (WCG) signaling on VPID

SDI Pass-Through

Single-link 3G-SDI, 1.5G-SDI, and 270Mb/s SDI video pass-through

DA Support

1 x 4 distribution amplifier support

Embedded Audio Support

Supports up to 16 channels of 24-bit embedded audio

Remote Configuration

Remote Ethernet configuration through Ross DashBoard software
