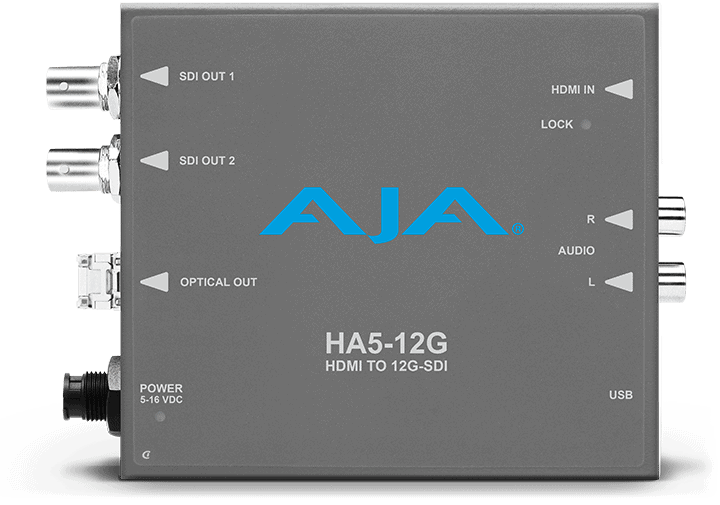

HDMI to 12G-SDI converter with multiple outputs and fiber transmission.

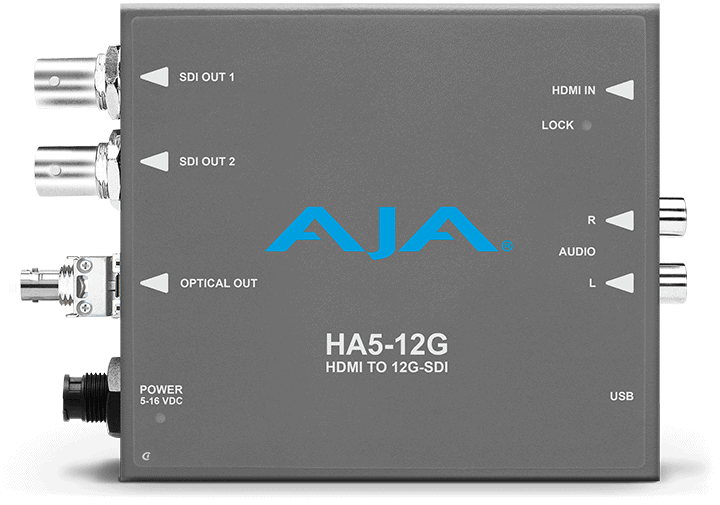

HDMI 2.0 to 12G-SDI converter with dual 12G-SDI outputs for professional video transmission.
HDMI to 12G-SDI converter device with multiple output ports and control features.
HDMI to 12G-SDI converter device with multiple output ports and control features.

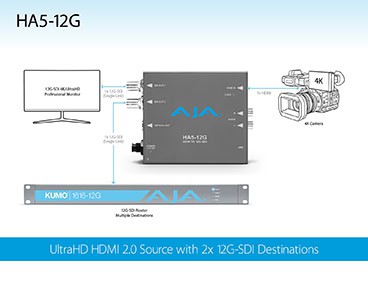

HDMI 2.0 to 12G-SDI converter with UltraHD HDMI sources and destinations.
AJA

HDMI 2.0 to 12G-SDI Conversion with ST fiber Transmitter

The AJA HA5-12G-T-ST converts an HDMI 2.0 input to 12G-SDI for 4K/UltraHD single-link output, with two 12G-SDI distribution-amplifier outputs and embedded audio from the HDMI source or a 2-channel analog (RCA) input. This model adds a single-mode ST fiber output alongside the dual 12G-SDI BNC outputs.

1.446,00€ (ex. VAT)

SKU: HA5-12G-T-ST Categories: , , Brand:

The AJA HA5-12G-T-ST takes an HDMI 2.0 source up to 4K/UltraHD 60p and converts it to 12G-SDI, providing two distribution-amplifier 12G-SDI BNC outputs. It embeds up to eight channels of HDMI audio or two channels of analog RCA audio, supports HDR InfoFrame decoding and VPID generation, and includes EDID emulation to ensure correct signaling with the connected source. This model adds a single-mode ST fiber output alongside the dual 12G-SDI BNC outputs.

A universal power supply is included and the unit is backed by a five year warranty.

Video Formats

  • SD, HD, 2K, UltraHD and 4K (4096/3840 x 2160), up to 60p
  • YCbCr 4:2:2 / 4:4:4, RGB 4:4:4 (SMPTE or Full level), 10/12-bit

Video Input Digital (HDMI)

  • 1 x HDMI Type A connector, HDMI v2.0b
  • HDR InfoFrame decoder (CTA-861.3, HDMI v2.0b); HDR VPID generation with pass-through or override for colorimetry and transfer characteristic
  • YCbCr 4:2:2 / 4:4:4 / 4:2:0, RGB 4:4:4 (SMPTE or Full level)
  • Extended Display Identification Data (EDID) emulation

Video Output Digital

  • 2 x 12G-SDI BNC (distribution amplifier outputs), SMPTE 259/292/424/2081/2082
  • Single link 4K/UltraHD; YCbCr 4:2:2/4:4:4, RGB 4:4:4, 10/12-bit

Fiber Output

  • 1 x 12G-SDI Fiber ST connector, SMPTE 297/259/292/424/2081/2082
  • Nominal Wavelength: Tx 1260 nm (Min), 1310 nm (Typ), 1360 nm (Max)
  • Optical Power: -5 dBm (Min), 0.5 dBm (Max)
  • Extinction Ratio: 3.5 dB (Min)

Audio

  • HDMI embedded audio input, 24-bit, 8-channel
  • Analog audio input: 2 x RCA, 2-channel, -10dBu (nominal)
  • SDI embedded audio output, 24-bit (SD limited to 20-bit), 16-channel
  • Audio pass-through: PCM, Dolby Digital (AC-3), Dolby Digital Plus (E-AC-3) including Dolby Atmos (JOC)

Physical

  • Size (w x d x h): 4.6″ x 4.02″ x 0.9″ (116.84 x 102.11 x 22.86 mm)
  • Weight: 0.5 lb (0.3 kg)

Power

  • 5-16VDC regulated, 11 watts, universal power supply included
  • AC Adapter: 100-240VAC, 50/60 Hz, universal input

Environmental Specifications

  • Safe Operating Temperature: 0 to 40°C (32 to 104°F)
  • Safe Storage Temperature (Power OFF): -40 to 60°C (-40 to 140°F)
  • Operating Relative Humidity: 10-90% noncondensing
  • Operating Altitude: <3,000 meters (<10,000 feet)

Warranty

  • Five year warranty
