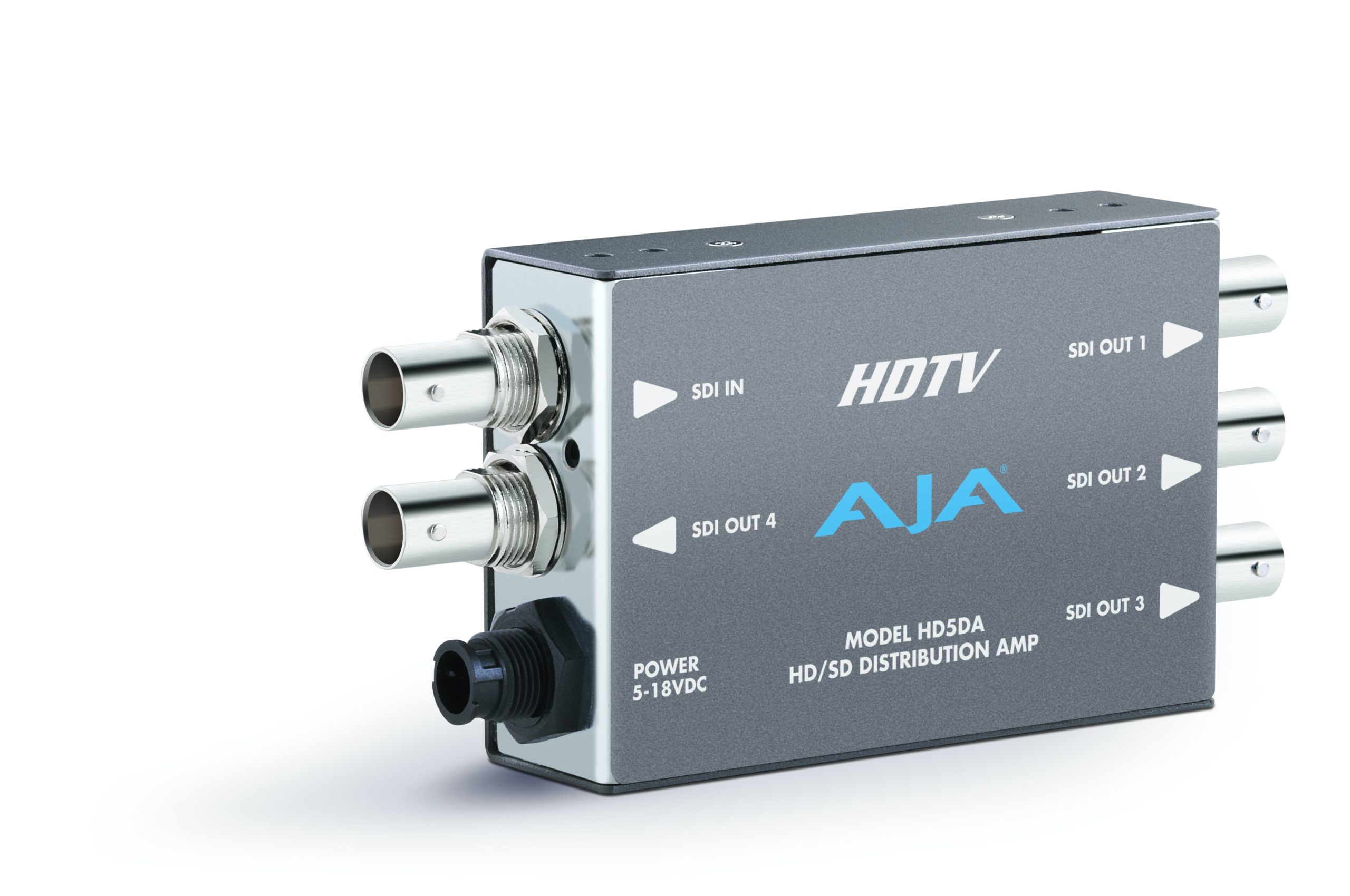

The AJA HD5DA is a miniature, low-cost 1×4 HD-SDI/SDI distribution amplifier/repeater with four separately buffered outputs and automatic input cable equalization to 100 meters.
The AJA HD5DA takes a single HD-SDI/SDI input and feeds four separately buffered SDI outputs, automatically equalizing the input cable to 100 meters and adapting to the input rate. It is an economical way to fan out an SDI signal in compact installations.
A universal power supply is included and the unit is backed by a five year warranty.
Video Formats
SD and HD-SDI
Video Input Digital
1 x HD-SDI/SDI BNC
Automatic input cable equalization to 100 meters
Video Output Digital
4 x HD-SDI/SDI BNC, separately buffered
Physical
Size (w x d x h): 5.8″ x 2.4″ x 1.0″ (131 x 61 x 25 mm)
Power
5-18VDC regulated, 2.5 watts, power supply required (included with purchase)
Environmental Specifications
Safe Operating Temperature: 0 to 40°C (32 to 104°F)
Safe Storage Temperature (Power OFF): -40 to 60°C (-40 to 140°F)
