The AJA HELO Plus streams H.264 video up to 1080p60 to content delivery networks while recording at the same time, with two separate streaming destinations and recording to SD card, USB or network storage. It offers both 3G-SDI and HDMI inputs and outputs for flexible HD/SD workflows.
AJA
H.264/MPEG-4 HD/SD Recording and Streaming, 3G-SDI/HDMI

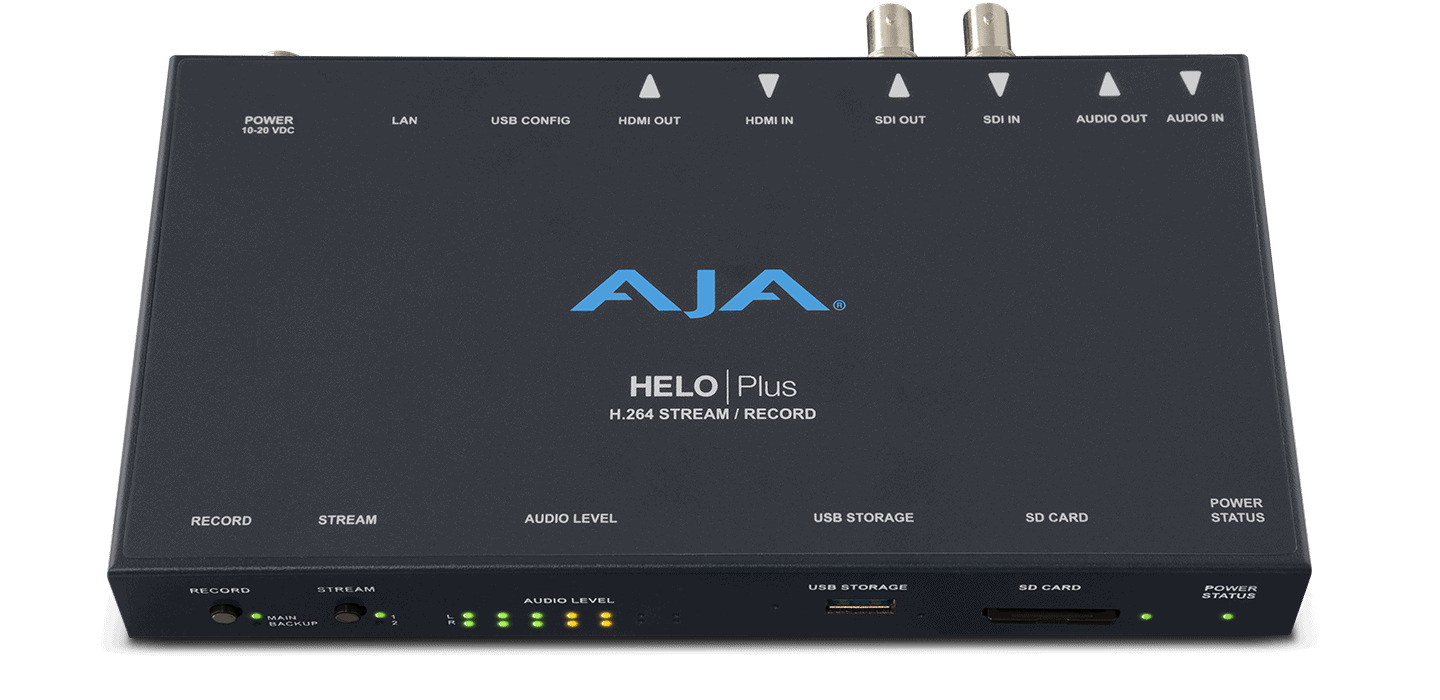

The AJA HELO Plus is a compact, advanced H.264 streaming and recording stand-alone appliance with SDI and HDMI I/O, able to stream up to 1080p60 to a CDN and record simultaneously.
1.952,00€ (ex. VAT)
Function
- Stand-alone H.264 (H.264/MPEG-4) streaming and recording appliance

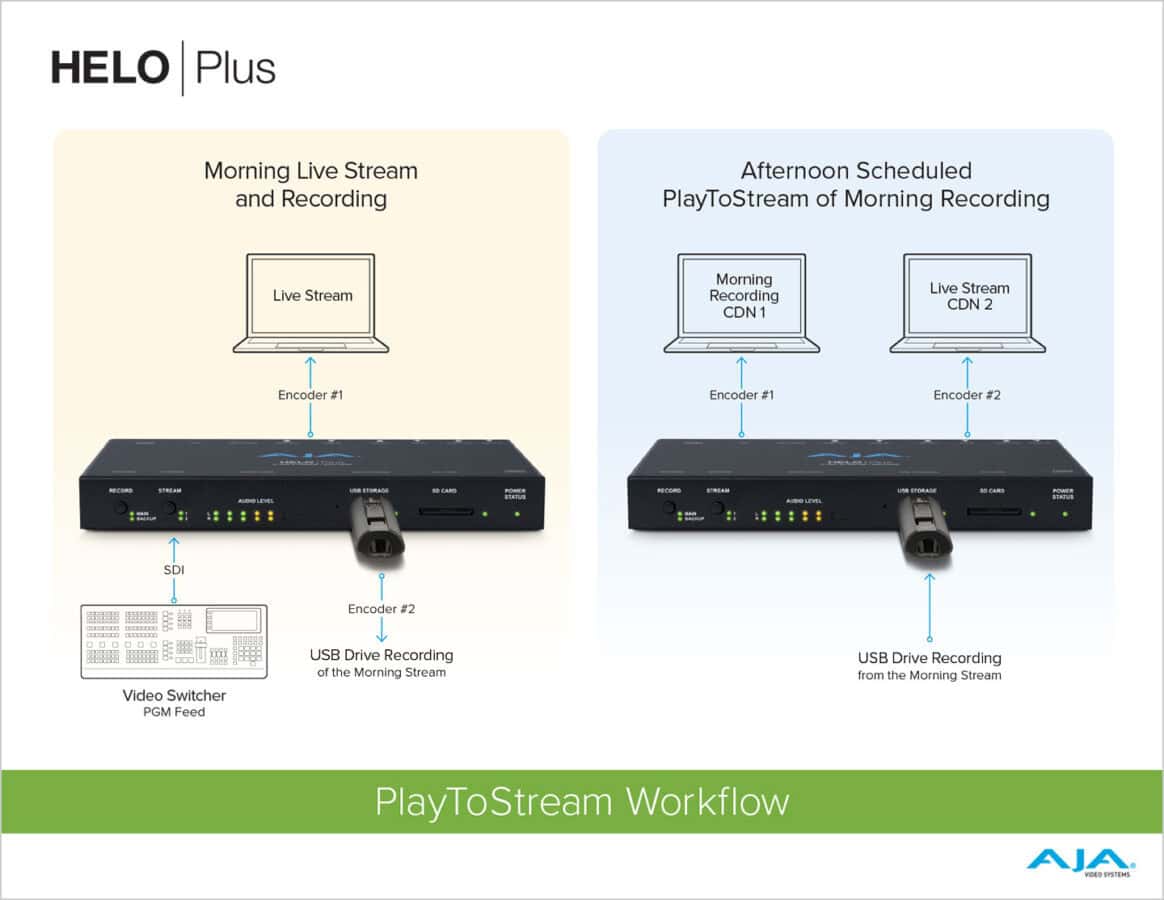

- Simultaneous streaming (up to 1080p60, two destinations) and recording

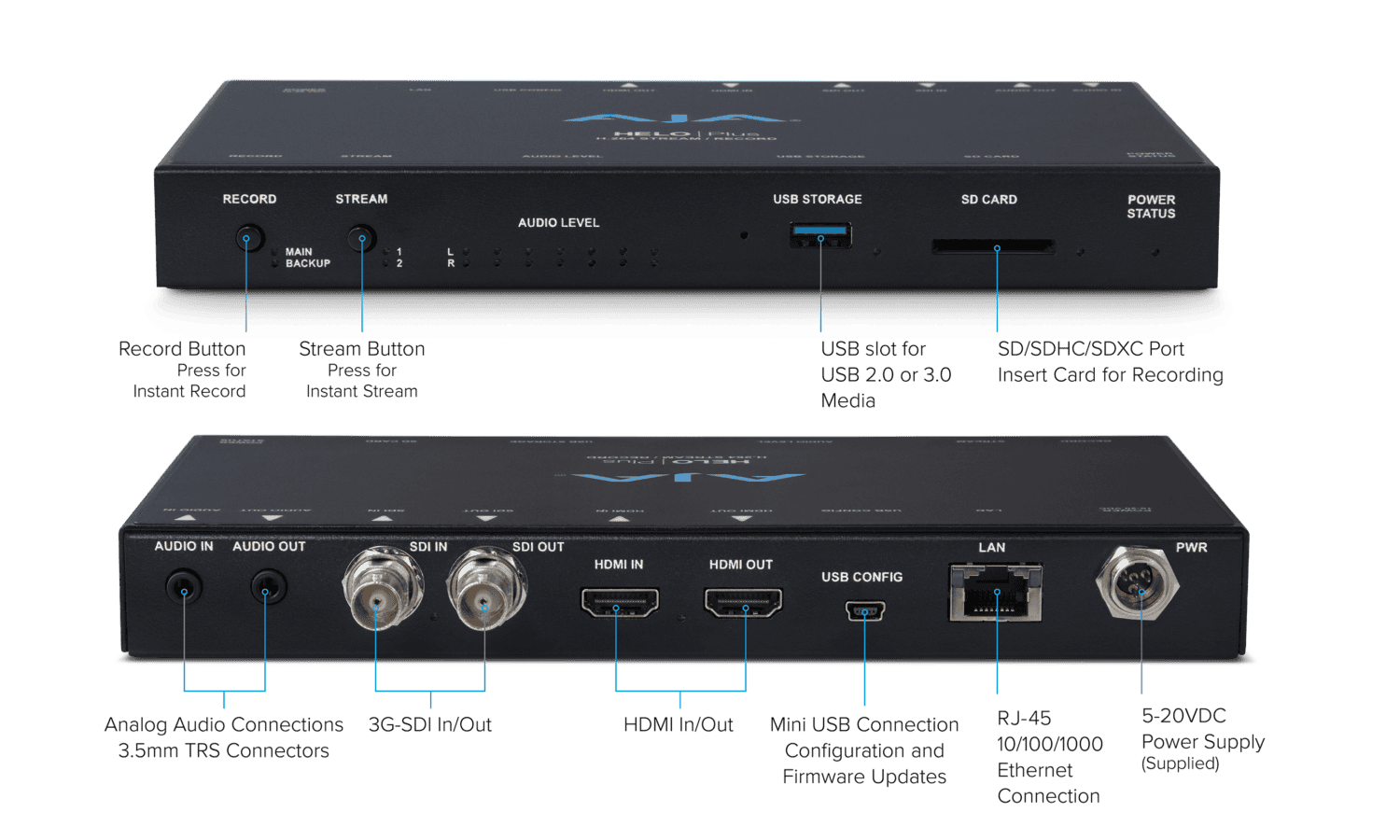

Video Input
- 1 x 3G-SDI BNC, SMPTE-259/292/296/424, 10-bit (single link 4:2:2)
- 1 x HDMI Type A, HDMI v1.4a (RGB or YCbCr)
Recording Media
- SD card, USB storage and network storage (NFS/CIFS)
Physical
- Size (w x d x h): 8.50″ x 5.5″ x 1.02″ (215.9 x 139.7 x 25.91 mm)
- Weight: 1.2 lb (0.52 kg)
Power
- External 12V power supply (included)
Environmental Specifications
- Safe Operating Temperature: 0 to 40°C (32 to 104°F)
- Safe Storage Temperature (Power OFF): -40 to 60°C (-40 to 140°F)
- Operating Relative Humidity: 10-90% noncondensing
- Operating Altitude: <3,000 meters (<10,000 feet)
Additional information
| Brand |
|---|
- AJA HELO Plus
- Power supply
