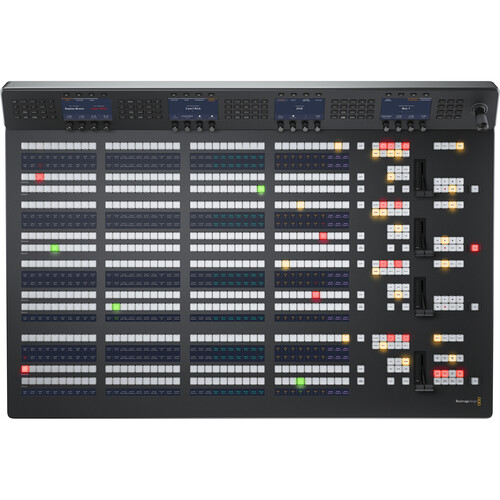

ATEM 4 M/E Advanced Panel 40

Connections

• Ethernet: 4 x 10/100/1000 BaseT with loop output
  for additional control panels or computers.
• Software Updates: 1 x USB-C for firmware updates.

Product Specifics

• Number of Mix Effects Rows: 4
• Direct Cross Points: 40
• Shifted Cross Points: 80
• Crosspoint Button Type: Tri-Color LED
• Crosspoint Label: 10 rows 24 character LCD
• On-Air indicator: 20
• Power Status Indicators: None
• DSK Transition Selectors: 4 x Auto, Cut, Tie/Preview
• Preview Transition: 4
• Transition Rate Displays: Via main menu
• LCD Menu Displays: 4
• Menu Control: 4 x 20 buttons
• Dedicated Macro Buttons: 4 x 40
• Transport Control Buttons: 24
• Destination Bus: 4
• Source Select Bus: 4
• Fader Bar: 4
• 3 Axis Joystick: 1
• Numeric Keypad: 1

Software

• Software Applications: ATEM Software Control Panel.

Operating Systems

• Mac 14.0 Sonoma,
  Mac 15.0 Sequoia or later.
• Windows 10 and 11.

Power Requirements

• Input Voltage: 2 x Internal 100 – 240V AC.
• Redundant Power: Yes
• Power Usage: 250W

Environmental Specifications

• Operating Temperature: 0° to 40° C (32° to 104° F)
• Storage Temperature: -20° to 60° C (-4° to 140° F)
• Relative Humidity: Up to 95%

Warranty

• 1 Year Limited Manufacturer’s Warranty.
