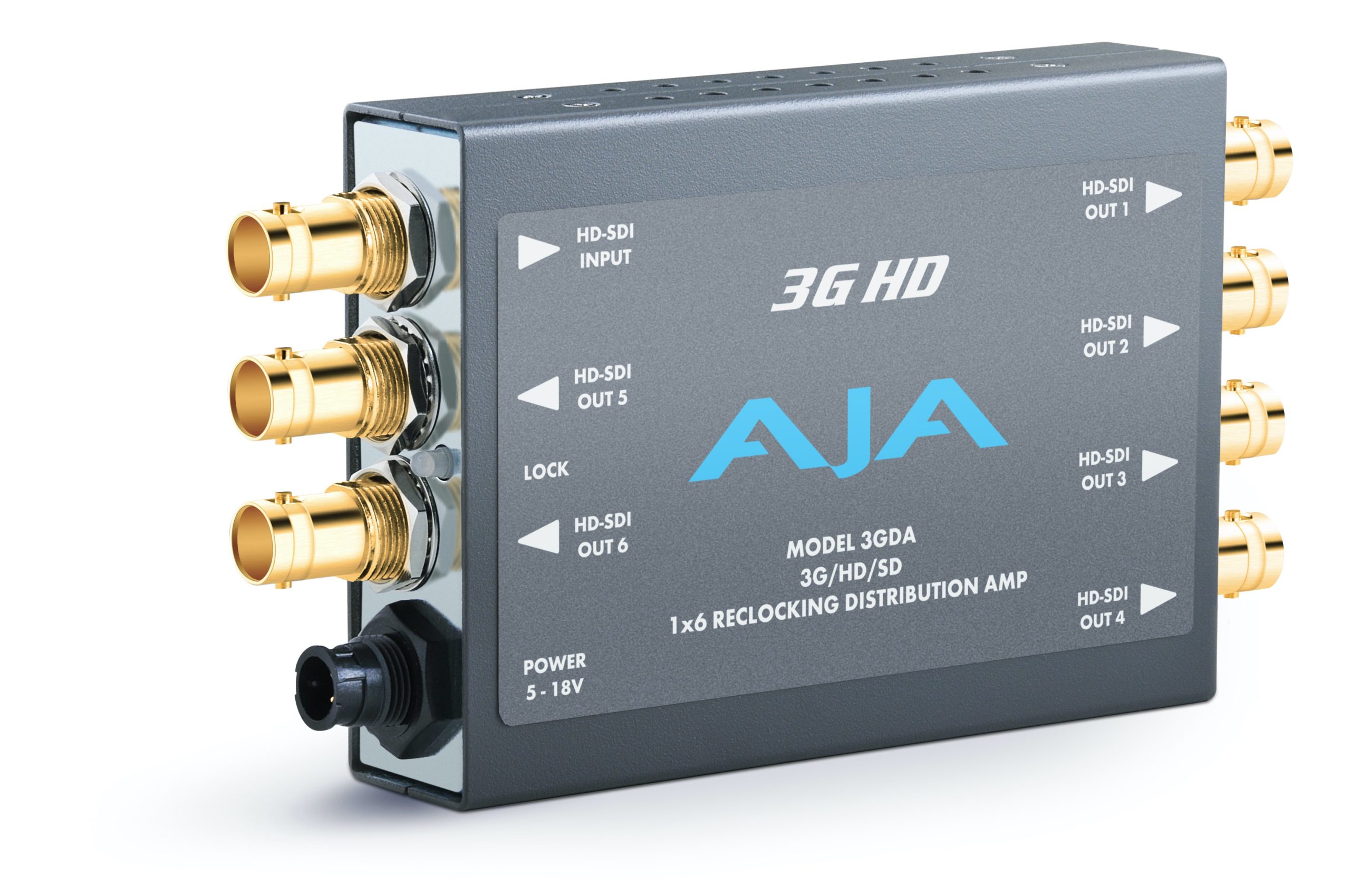

A 3G HD SDI distribution amplifier with multiple output ports for professional video signals.
AJA

1×6 3G-SDI Reclocking Distribution amplifier

The AJA 3GDA is a miniature, low-cost 1×6 3G-SDI reclocking distribution amplifier with six separately buffered SDI outputs, automatic input detection, reclocking and cable equalization.

515,00€ (ex. VAT)

SKU: 3GDA Categories: , , Brand:

The AJA 3GDA takes a single 3G/HD/SD-SDI input and feeds six separately buffered, reclocked SDI outputs identical to the recovered input, helping facilities save on cable runs and install times. Automatic input detection, reclocking and cable equalization preserve signal integrity over long runs.

A universal power supply is included and the unit is backed by a five year warranty.

Video Formats

  • SD, HD and 3G-SDI

Video Input Digital

  • 1 x 3G-SDI BNC, SMPTE-259/292/296/424

Video Output Digital

  • 6 x 3G-SDI BNC, SMPTE-259/292/296/424

Cable Equalization

  • Belden 1694A coax: 3 Gbps, 120m; 1.5 Gbps, 200m; 270 Mbps, 350m

Physical

  • Size (w x d x h): 5.8″ x 3.1″ x 1.0″ (147 x 79 x 25 mm)
  • Weight: 0.7 lb (0.3 kg)

Power

  • +5-18VDC regulated, 3 watts, power supply required (included with purchase); AC Adapter 100-240VAC, 50/60 Hz universal input

Environmental Specifications

  • Safe Operating Temperature: 0 to 40°C (32 to 104°F)
  • Safe Storage Temperature (Power OFF): -40 to 60°C (-40 to 140°F)
  • Operating Relative Humidity: 10-90% noncondensing
  • Operating Altitude: <3,000 meters (<10,000 feet)

Warranty

  • Five year warranty

Additional information

Brand

  • AJA 3GDA
  • Universal power supply
